| Type of installation | In-ceiling installation |

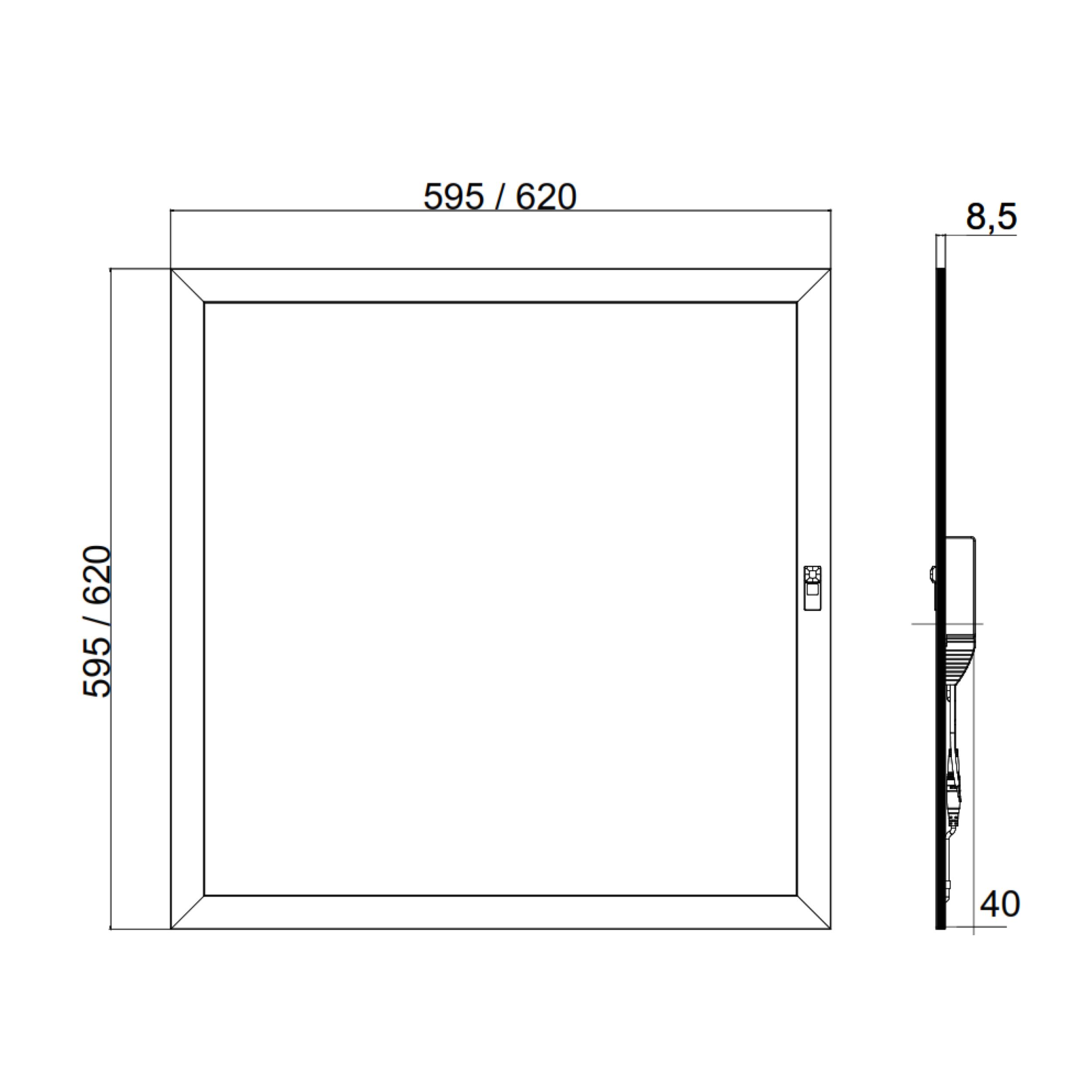

| Dimensions (L x W x H) | 595 x 595 x 8.5 mm (Einbautiefe: 40 mm) |
| Mains power supply | 200...240 V / 50 – 60 Hz |
| Output | 33 W |
| Luminous flux | 3960 lm |
| Luminaire efficacy | 120 lm/W |
| Mounting height | < 10 m |
| With light regulation program control | Yes |
| With radio network control | Yes |
| With motion detector | Yes |
| Sensor Technology | passive infrared |
| Detection angle | 360° |

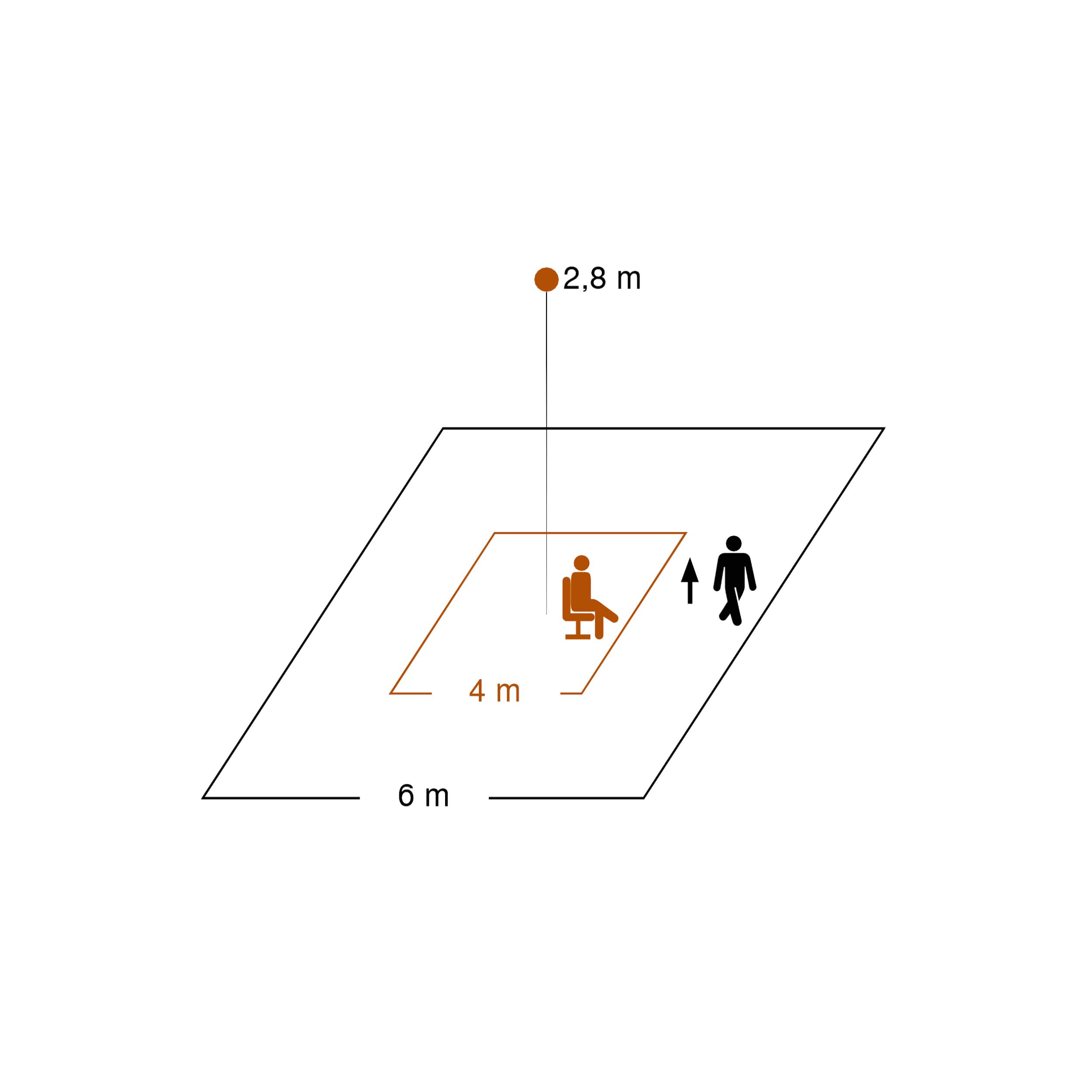

| Tangential reach radius | 6 x 6 m (36 m²) |
| Radial reach | 4 x 4 m (16 m²) |
| Presence reach | 4 x 4 m (16 m²) |
| With light sensor | Yes |
| With emergency light | No |
| Dimming DALI | Yes |
| Colour temperature | 4000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index CRI | 80-89 |
| Suitable for light line configuration | No |
| Type of cabling | Suitable for through wiring |
| Lamp | LED |
| Exchangeable control gear | Yes |
| LED life expectancy (25 °C) | 50000 h |
| IP rating | IP20 |
| Protection class | I |
| Ambient temperature | -20...45 °C |
| Housing material | Aluminum |
| Colour | White |
| Cover material | Microprismatic acrylic glass |

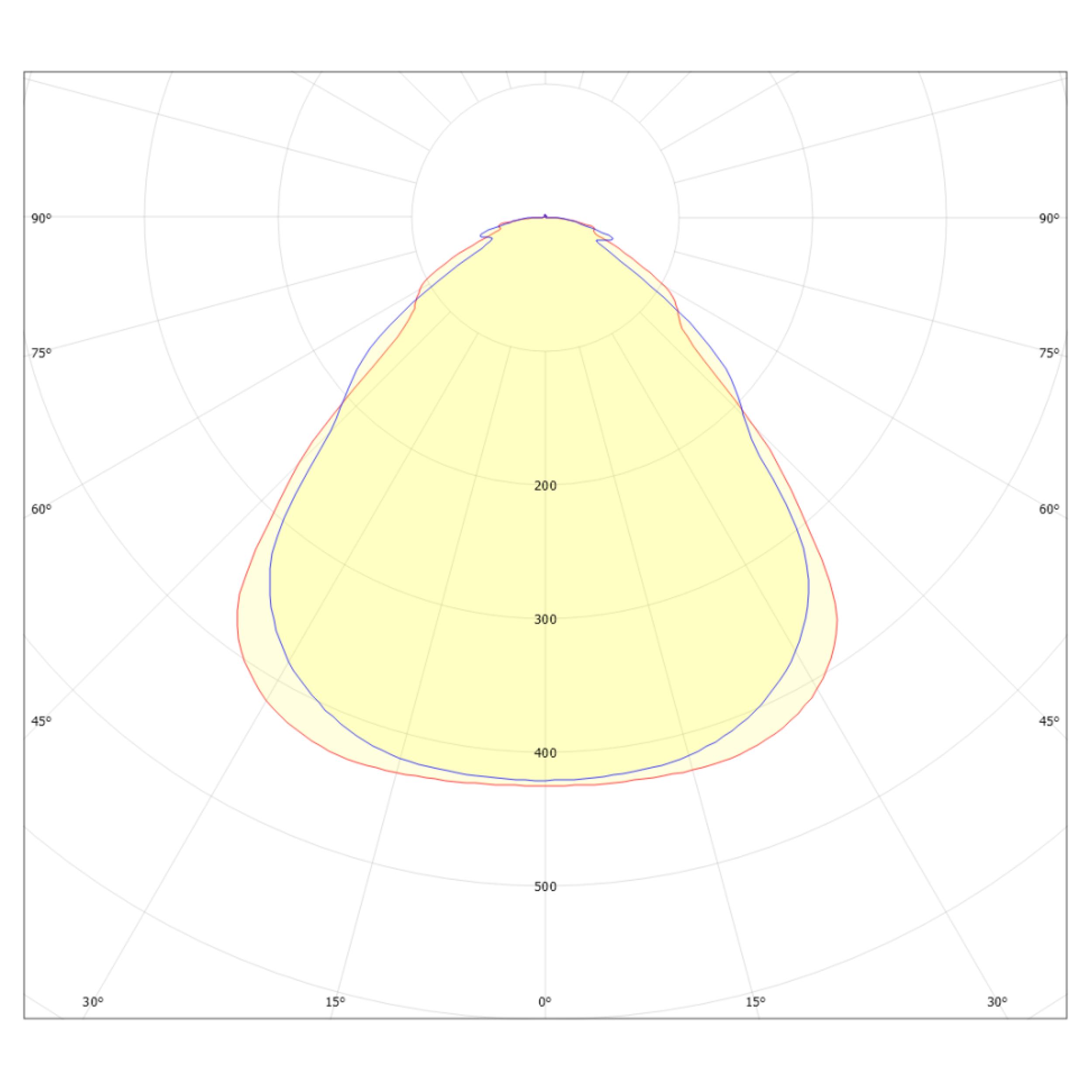

| Beam angle | 90° |
| Unified Glare Rating | UGR < 19 |
| Energy efficiency class of integrated lamp | E |
| Manufacturer's Warranty | 5 years |
