| Surface | Presence detector |
| Mains power supply | 12 – 22,5 V |
| Power supply, detail | DALI bus |
| Number of Dali users | 12 |
| Settings via | Bus |
| With remote control | No |

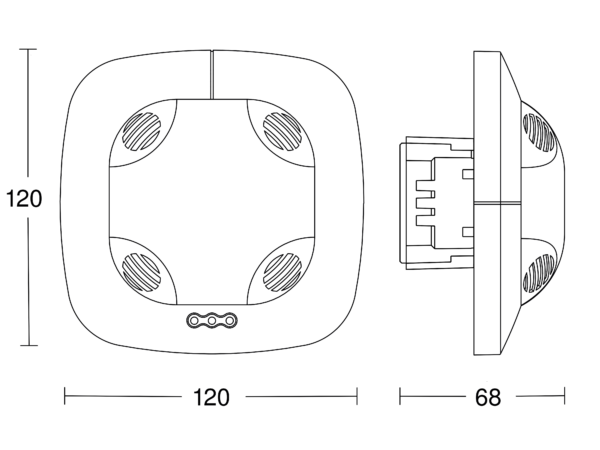

| Dimensions (L x W x H) | 66 x 120 x 120 mm |
| Sensor Technology | Ultrasonic |
| Sensor Technology 2 | passive infrared |
| Ultrasonic technology | 40 kHz |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors |
| Application, room | classroom one-person office open-plan office conference room / meeting room duty room recreation room Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,50 – 3,5 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 3,50 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |

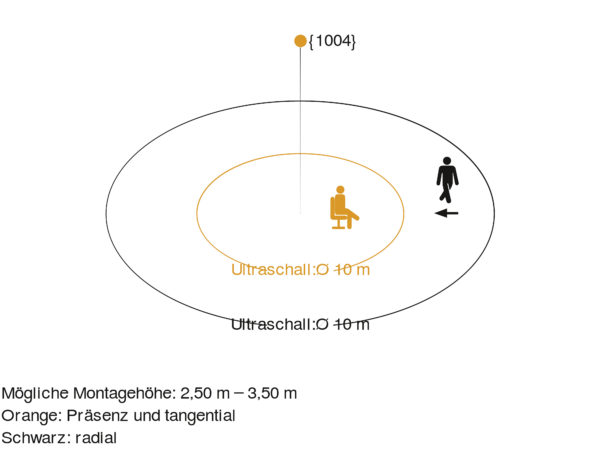

| Radial reach | Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²) |
| Tangential reach radius | Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²) |
| Presence reach | Ultrasonic: Ultraschall: Ø 6 m (Ultraschall: 28 m²) |
| Reach, radial 2 | passive infrared: Passiv Infrarot: Ø 4 m (Passiv Infrarot: 13 m²) |
| Reach, tangential 2 | passive infrared: Passiv Infrarot: Ø 8 m (Passiv Infrarot: 50 m²) |
| Reach, presence 2 | passive infrared: Passiv Infrarot: Ø 4 m (Passiv Infrarot: 13 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Constant-lighting control | No |
| Control output, Dali | Addressable/slave |
| IP rating | IP20 |
| Ambient temperature | from -25 up to +55 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
