| Type | Presence detector |
| Dimensions (L x W x H) | 50 x 80 x 80 mm |
| Power supply, detail | KNX bus |
| Sensor Technology | High frequency |
| Application, place | Indoors |
| Application, place, room | one-person office, corridor / aisle, function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors |
| Installation site | wall |
| Type of installation | Concealed wiring |
| HF-system | 5,8 GHz |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Mounting height | 1,20 – 2,2 m |
| Optimum mounting height | 1,2 m |
| Detection | also through glass, wood and stud walls |
| Detection angle | 180 ° |
| Angle of aperture | 140 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |

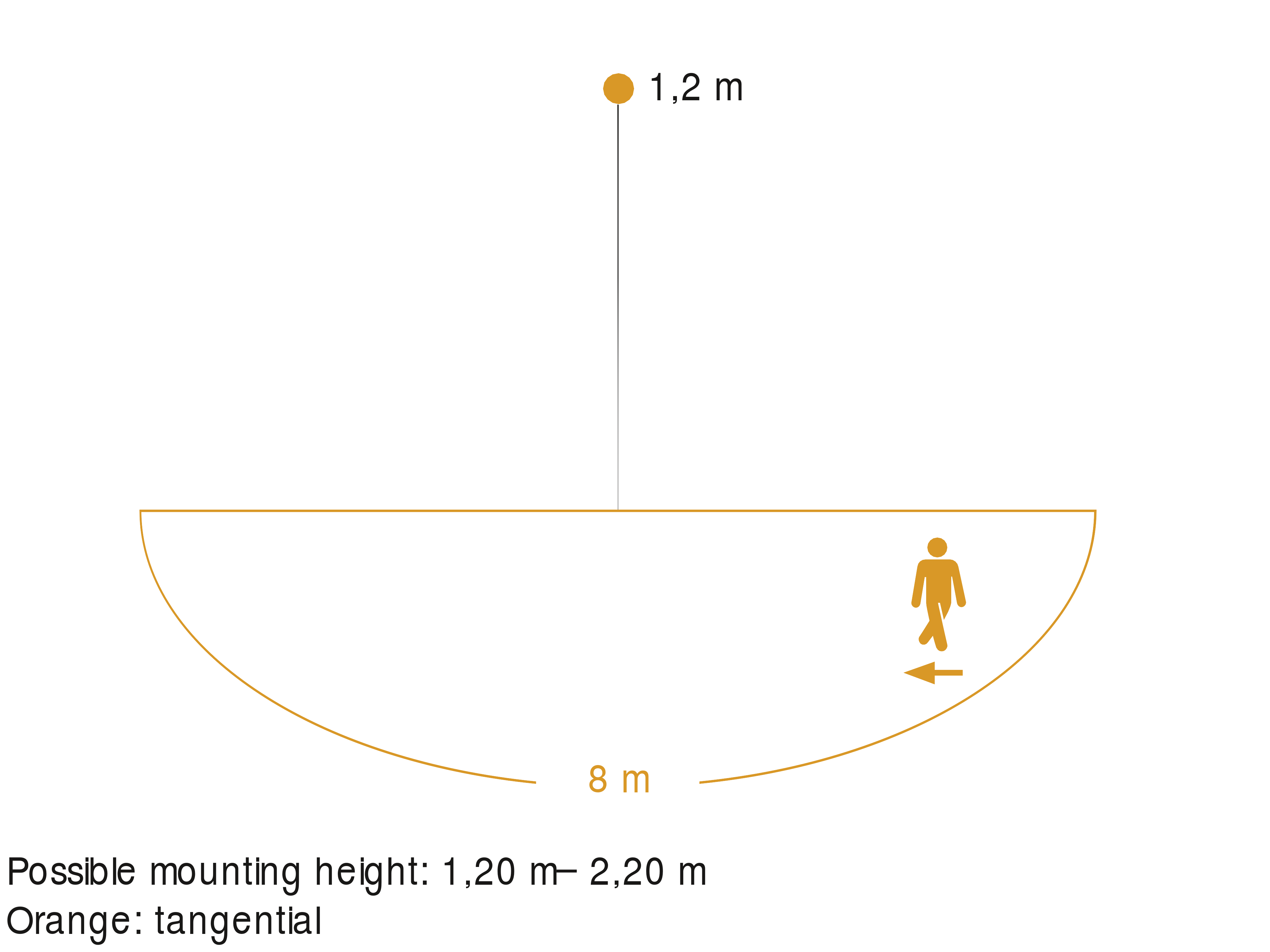

| Reach, radial | r = 8 m (101 m²) |
| Reach, tangential | r = 8 m (101 m²) |
| Twilight setting TEACH | Yes |
| Twilight setting | 2 – 1000 lx |
| Time setting | 60 sec – 255 min |
| Constant-lighting control | Yes |
| Basic light level function | Yes |
| Basic light level function in per cent | 10 – 50 % |
| Basic light level function time | Permanently ON, 1-255 min, all night |
| KNX functions | Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output, Integrated button, Temperature output, Humidity output |
| With bus coupling | No |
| Settings via | ETS software, Remote control, Bus, Smart Remote |
| Interconnection | Yes |
| Type of interconnection | Master/master, Master/slave |
| IP rating | IP20 |
| Material | Plastic |
| Ambient temperature | 0 – 40 °C |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Version | KNX - white |
| FIL_2_PRO_Interface | KNX |
| FIL_4_PRO_Sensor_Technology | High frequency |
