| Surface | Presence detector |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Bluetooth |
| With remote control | No |

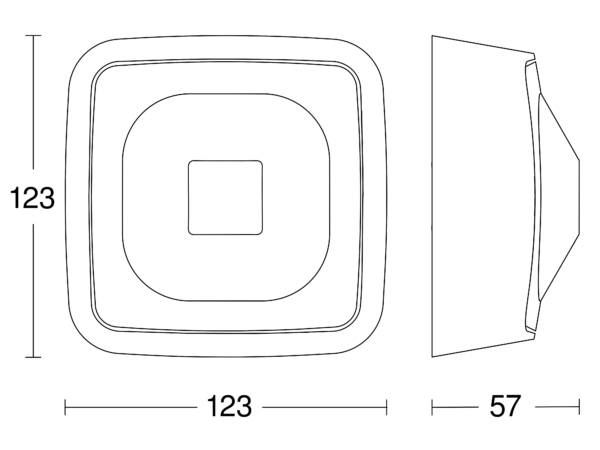

| Dimensions (L x W x H) | 57 x 123 x 123 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Bluetooth |
| Application, place | Indoors |
| Application, room | function room / ancillary room kitchenette stairwell WC / washroom Indoors |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,50 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| Output | 2000 W |
| Power consumption | 0,5 W |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 140 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, detail | 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation. |

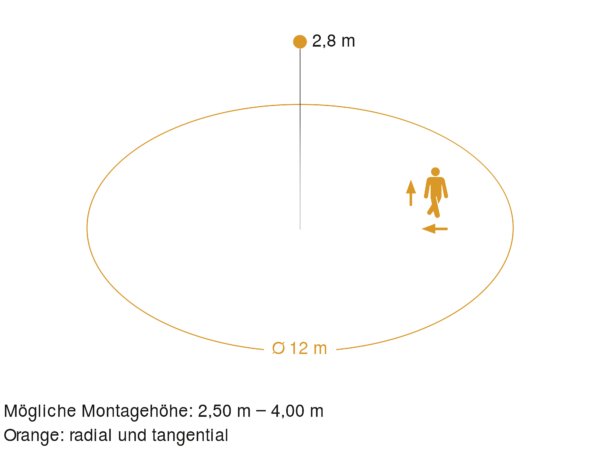

| Radial reach | Ø 12 m (113 m²) |
| Tangential reach radius | Ø 12 m (113 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 10 s – 60 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 2000 W |
| Functions | Semi-/fully automatic Master/slave override Neighbouring group function Normal / test mode Presence function Group parameterisation Lighting scenario Manual ON / ON-OFF |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Switching output 1, resistive | 2000 W |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| Switching output 1, number of LEDs / fluorescent lamps | 8 pcs. |
| Switching output 1, floating | No |
| IP rating | IP54 |
| Ambient temperature | from -25 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
