| Type of installation | Use in continuous row |

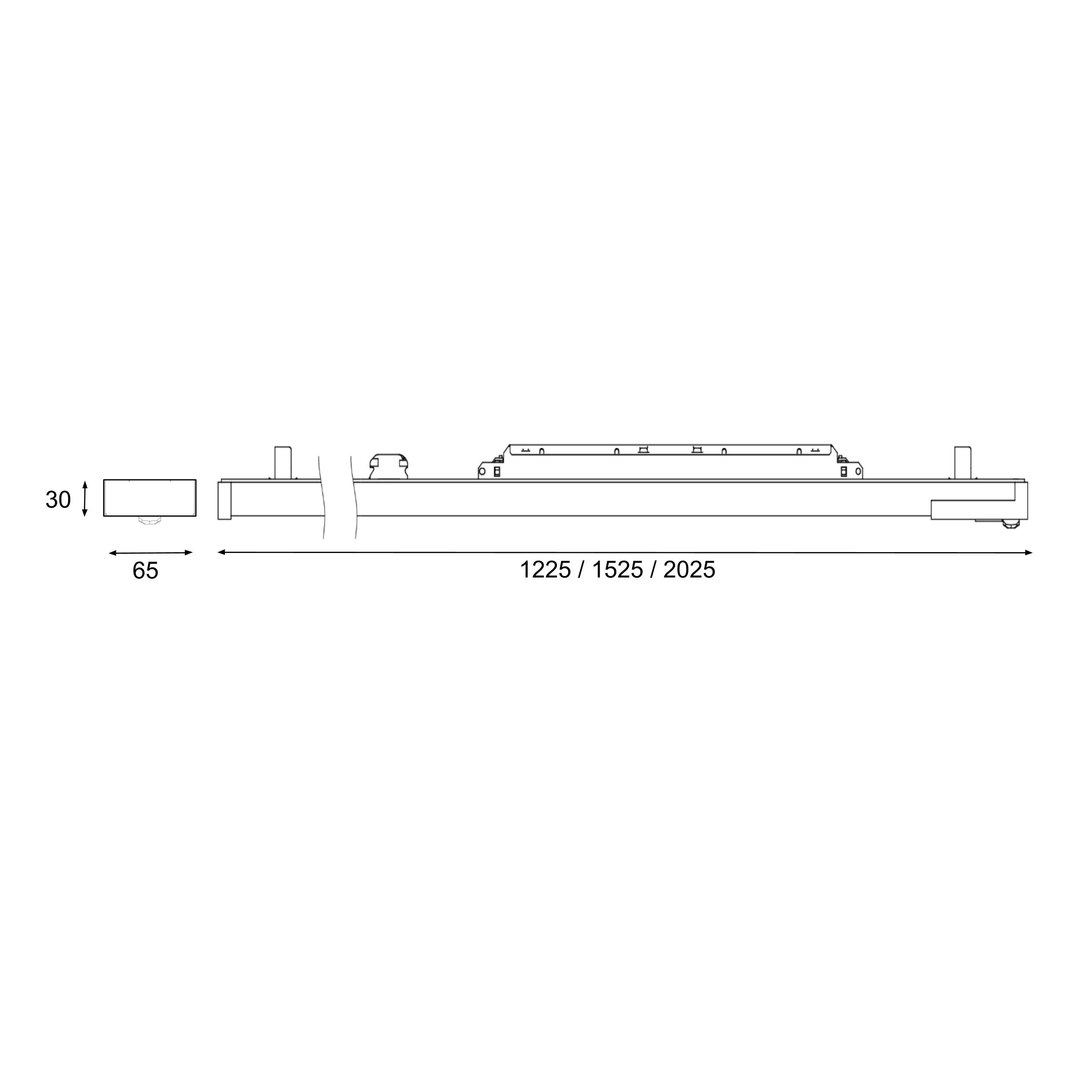

| Dimensions (L x W x H) | 1525 x 65 x 30 mm |
| Mains power supply | 200...240 V / 50 – 60 Hz |
| Output | 54 W |
| Luminous flux | 6200 lm |
| Luminaire efficacy | 115 lm/W |
| With motion detector | No |
| With light sensor | No |
| With emergency light | No |
| Dimming DALI | Yes |
| LED nominal current | 370 mA |
| Maximum number of luminaires on circuit breaker | C10: 21x, C16: 36x, B10: 13x , B16: 22x |
| Colour temperature | 4000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index CRI | 80-89 |
| Suitable for light line configuration | Yes |
| Type of cabling | Suitable for through wiring |
| Lamp | LED |
| Exchangeable control gear | Yes |
| LED life expectancy (25 °C) | 50000 h |
| IP rating | IP40 |
| Protection class | I |
| Weight | 1.9 kg |
| Ambient temperature | -20...45 °C |
| Housing material | Aluminum |
| Colour | White |
| Cover material | Diffusor opal |

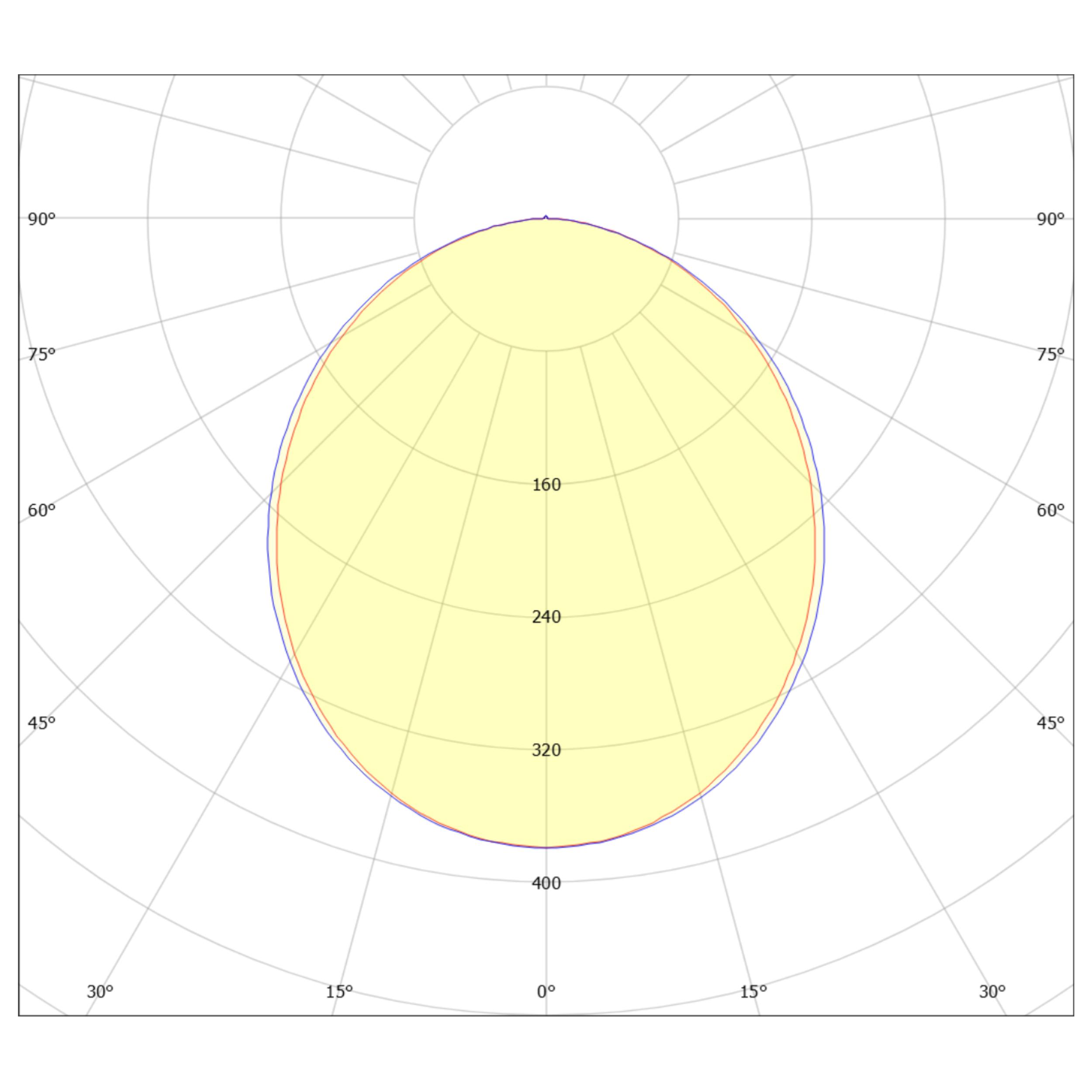

| Beam angle | 105° |
| Unified Glare Rating | UGR < 24 |
| Energy efficiency class of integrated lamp | E |
| Manufacturer's Warranty | 5 years |
