| Surface | Presence detector |
| Power supply, detail | KNX bus |
| With bus coupling | Yes |
| Settings via | ETS software Remote control Bus Smart Remote |
| With remote control | No |

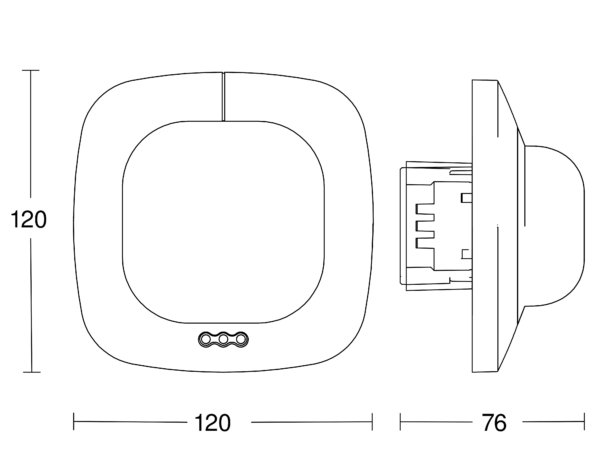

| Dimensions (L x W x H) | 75 x 120 x 120 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | KNX bus |
| Application, place | Indoors |
| Application, room | one-person office conference room / meeting room duty room recreation room changing room function room / ancillary room kitchenette Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,50 – 8,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 8,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 100 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | Yes |

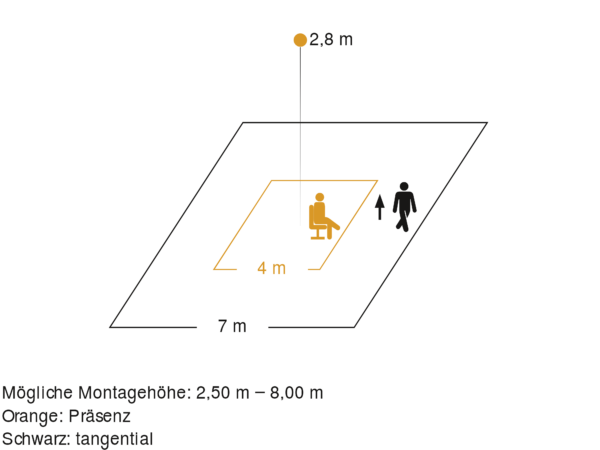

| Radial reach | 5 x 5 m (25 m²) |
| Tangential reach radius | 7 x 7 m (49 m²) |
| Presence reach | 4 x 4 m (16 m²) |
| Switching zones | 1760 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 10 s – 1092 Min. |
| Main light adjustable | 0 - 100 % |
| Basic light level function | Yes |
| KNX functions | Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate |
| Soft light start | Yes |
| Continuous light | selectable |
| Constant-lighting control | Yes |
| IP rating | IP20 |
| Ambient temperature | from 0 up to 40 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
