| Surface | Presence detector |
| Mains power supply | 230 V / 50 – 60 Hz |
| Settings via | Remote control DIP switches Potentiometers Smart Remote |
| With remote control | No |

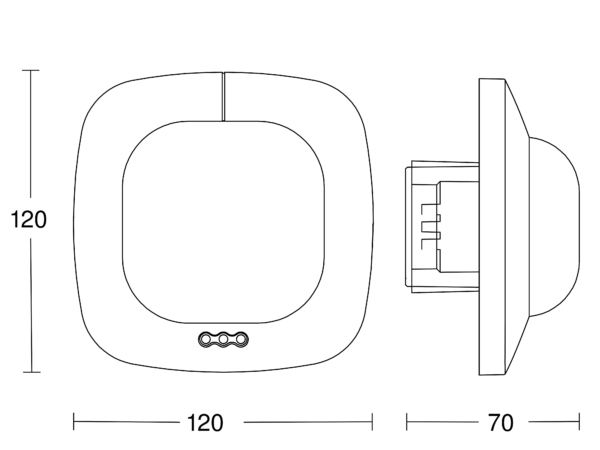

| Dimensions (L x W x H) | 65 x 120 x 120 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Cable |
| Interconnection, number | max. 10 sensors |
| Application, place | Indoors |
| Application, room | classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,50 – 10,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 10,00 m |
| Output | 2000 W |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | Yes |

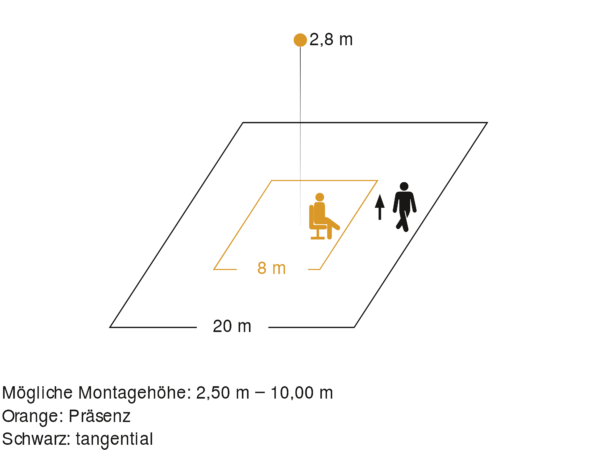

| Radial reach | 8 x 8 m (64 m²) |
| Tangential reach radius | 20 x 20 m (400 m²) |
| Presence reach | 8 x 8 m (64 m²) |
| Detection levels | 13 |
| Switching zones | 4800 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 30 s – 30 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 2000 W |
| Functions | Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF Constant-lighting control ON-OFF |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 1000 VA |
| Fluorescent lamps, series-corrected | 1000 VA |
| Fluorescent lamps, parallel-corrected | 1000 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in uF | 176 µF |
| IP rating | IP20 |
| Ambient temperature | from -25 up to 55 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
