| Surface | Presence detector |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Remote control Smart Remote |
| With remote control | No |

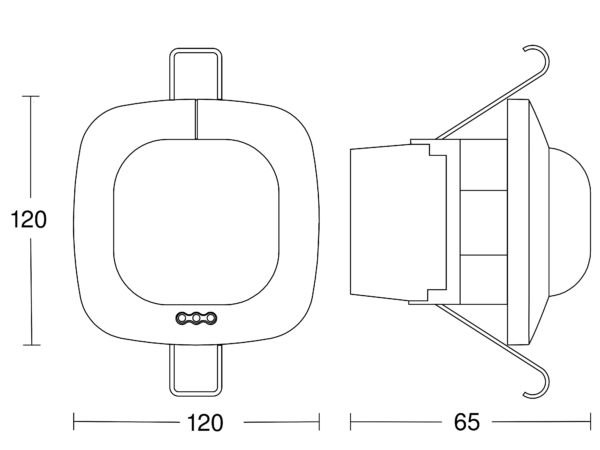

| Dimensions (L x W x H) | 120 x 120 x 119 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Cable DALI bus |
| Application, place | Indoors |
| Application, room | classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors |
| Installation site | ceiling |
| Type of installation | In-ceiling installation |
| Mounting height | 2,50 – 10,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 10,00 m |
| Power consumption | 0,5 W |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | Yes |

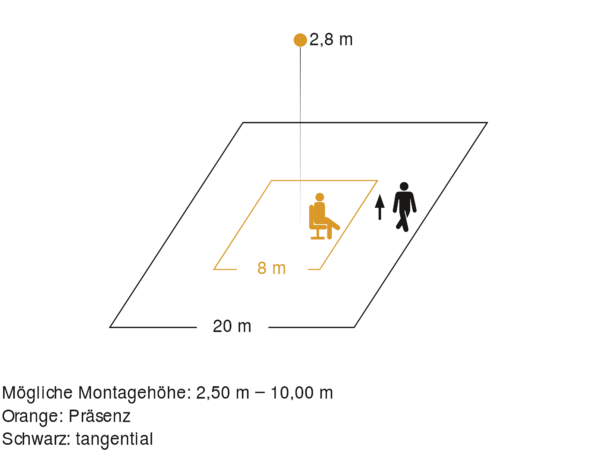

| Radial reach | 8 x 8 m (64 m²) |
| Tangential reach radius | 20 x 20 m (400 m²) |
| Presence reach | 8 x 8 m (64 m²) |
| Switching zones | 4800 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 60 Min. |
| Main light adjustable | 50 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | 1-60 min, all night |
| Basic light level function in per cent | 10 – 60 % |
| Basic light level function percentage, from | 10 % |
| Functions | 4 inputs for conventional switches Semi-/fully automatic Constant-lighting control ON-OFF Master/slave override Neighbouring group function Normal / test mode TouchDIM function |
| Soft light start | Yes |
| Continuous light | selectable |
| Constant-lighting control | Yes |
| Control output, Dali | Addressable / broadcast 64 electronic ballasts |
| IP rating | IP20 |
| Ambient temperature | from 0 up to 40 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | VDE DALI-2 |
| Includes corner wall mount | No |
