| Surface | Motion detectors |
| Mains power supply | 230 V / 50 Hz |
| Settings via | Potentiometers |
| With remote control | No |

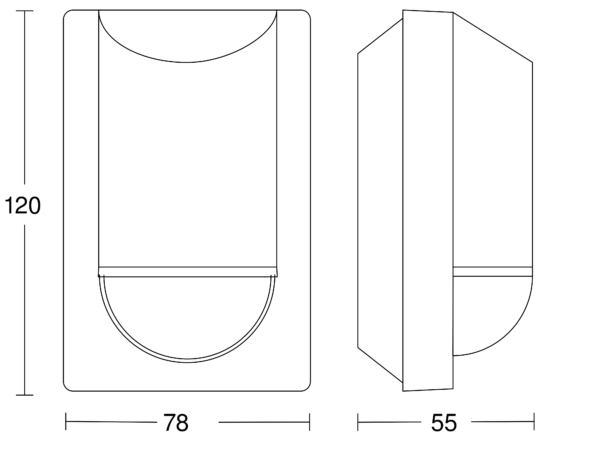

| Dimensions (L x W x H) | 55 x 78 x 120 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Application, place | Outdoors Indoors |
| Application, room | outdoors front door all round the building terrace / balcony courtyard & driveway |
| Installation site | wall corner |
| Type of installation | Surface wiring |
| Mounting height | 1,8 – 4 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 4,00 m |
| Output | 1000 W |
| Power consumption | 0,5 W |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

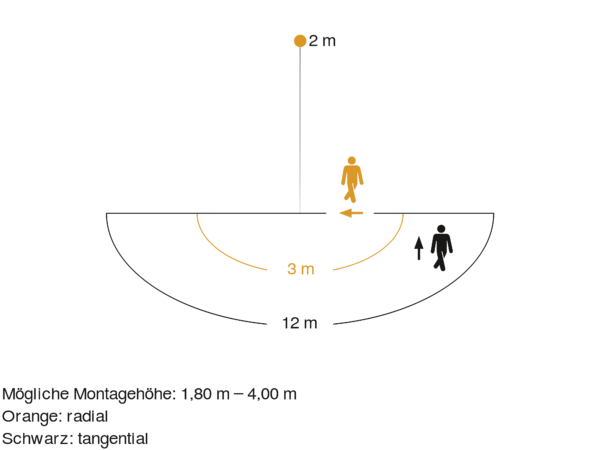

| Radial reach | r = 1.5 m (4 m²) / r = 3 m (14 m²) |
| Tangential reach radius | r = 5 m (39 m²) / r = 12 m (226 m²) |
| Switching zones | 508 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | No |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 1000 W |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Switching output 1, resistive | 1000 W |
| Fluorescent lamps, electronic ballast | 1000 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 900 VA |
| Fluorescent lamps, parallel-corrected | 500 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 175 W |
| LED lamps > 8 W | 350 W |
| Capacitive load in uF | 132 µF |
| Switching output 1, floating | No |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | Anthracite |
| Colour, RAL | 7016 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
