| Surface | Motion detectors |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |
| With remote control | No |

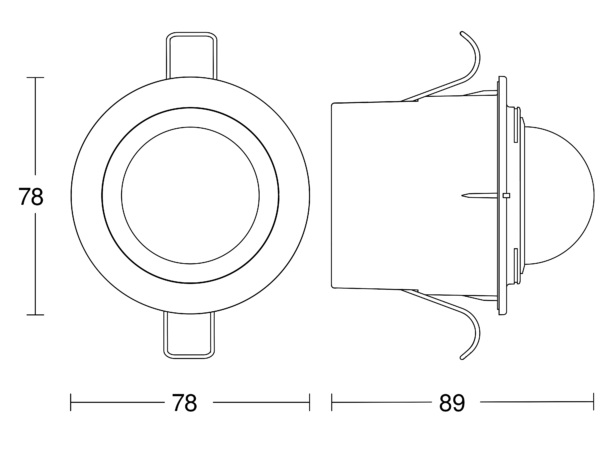

| Dimensions (Ø x H) | 78 x 89 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
| Application, place | Outdoors Indoors |
| Application, room | corridor / aisle changing room function room / ancillary room kitchenette stairwell WC / washroom outdoors front door all round the building terrace / balcony Indoors |
| Installation site | ceiling |
| Type of installation | In-ceiling installation |
| Mounting height | 2,2 – 4 m |
| Optimum mounting height | 2,5 m |
| Mounting height max. | 4,00 m |
| Output | 1000 W |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Radial reach | Ø 4 m (13 m²) |
| Tangential reach radius | Ø 8 m (50 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | No |
| Time setting | 8 s – 35 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 1000 W |
| Soft light start | No |
| Continuous light | selectable |
| Constant-lighting control | No |
| Fluorescent lamps, electronic ballast | 350 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 500 VA |
| Fluorescent lamps, parallel-corrected | 500 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 175 W |
| LED lamps > 8 W | 350 W |
| Capacitive load in uF | 132 µF |
| Switching output 1, number of LEDs / fluorescent lamps | 6 pcs. |
| IP rating | IP54 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Material | Plastic |
| Housing material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | VDE |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
