| Surface | Motion detectors |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Remote control Potentiometers Smart Remote |
| With remote control | No |

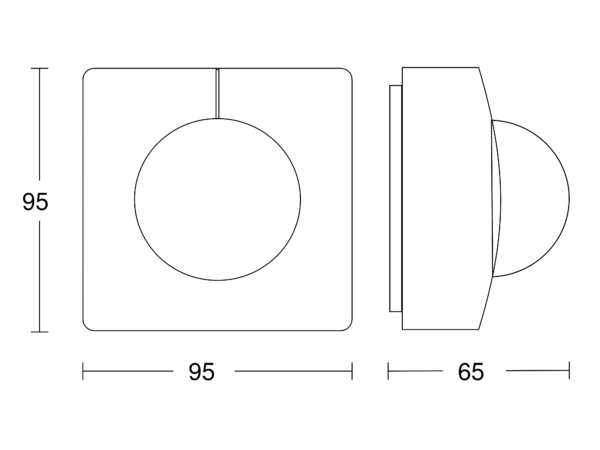

| Dimensions (L x W x H) | 65 x 95 x 95 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | Cable |
| Application, place | Indoors |
| Application, room | high-bay warehouse sports hall Indoors |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 4,00 – 14,00 m |
| Optimum mounting height | 12 m |
| Mounting height max. | 14,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Radial reach | Ø 14 m (154 m²) |
| Tangential reach radius | Ø 36 m (1018 m²) |
| Switching zones | 1416 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | 50 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | 1-30 min all night |
| Basic light level function in per cent | 10 – 50 % |
| Basic light level function percentage, from | 10 % |
| Functions | Normal / test mode Manual ON / ON-OFF Constant-lighting control ON-OFF |
| Soft light start | Yes |
| Continuous light | selectable, 4h |
| Constant-lighting control | Yes |
| Control output, Dali | Broadcast 1x30 electronic ballasts |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
