| Surface | Motion detectors |
| Mains power supply | 12 – 22,5 V |
| Power supply, detail | DALI bus |
| Number of Dali users | 3 |
| With bus coupling | Yes |
| Settings via | Bus |
| With remote control | No |

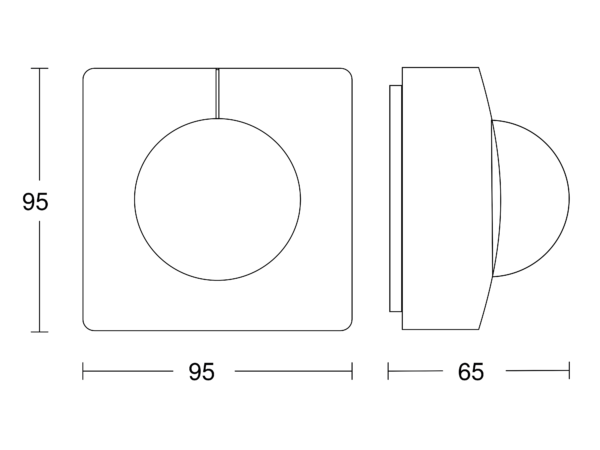

| Dimensions (L x W x H) | 65 x 95 x 95 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors Outdoors |
| Application, room | high-bay warehouse sports hall Indoors |
| Installation site | ceiling |
| Type of installation | Surface wiring |
| Mounting height | 4,00 – 14,00 m |
| Optimum mounting height | 12 m |
| Mounting height max. | 14,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

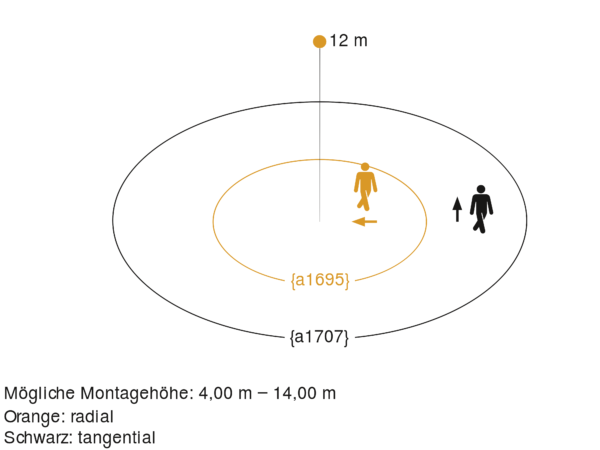

| Radial reach | Ø 14 m (154 m²) |
| Tangential reach radius | Ø 36 m (1018 m²) |
| Switching zones | 1416 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Soft light start | No |
| Constant-lighting control | No |
| Switching output 1, floating | No |
| Control output, Dali | Addressable/slave |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
