| Type | Motion and Presence Detector |
| Dimensions (L x W x H) | 78 x 94 x 94 mm |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Sensor Technology | passive infrared |
| Application, place | Indoors |
| Application, place, room | production facilities, recreation room, changing room, function room / ancillary room, sports hall, reception / lobby, stairwell, WC / washroom, multi-storey / underground car park, warehouse, Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Switching zones | 1416 switching zones |
| Electronic scalability | No |
| Mechanical scalability | No |

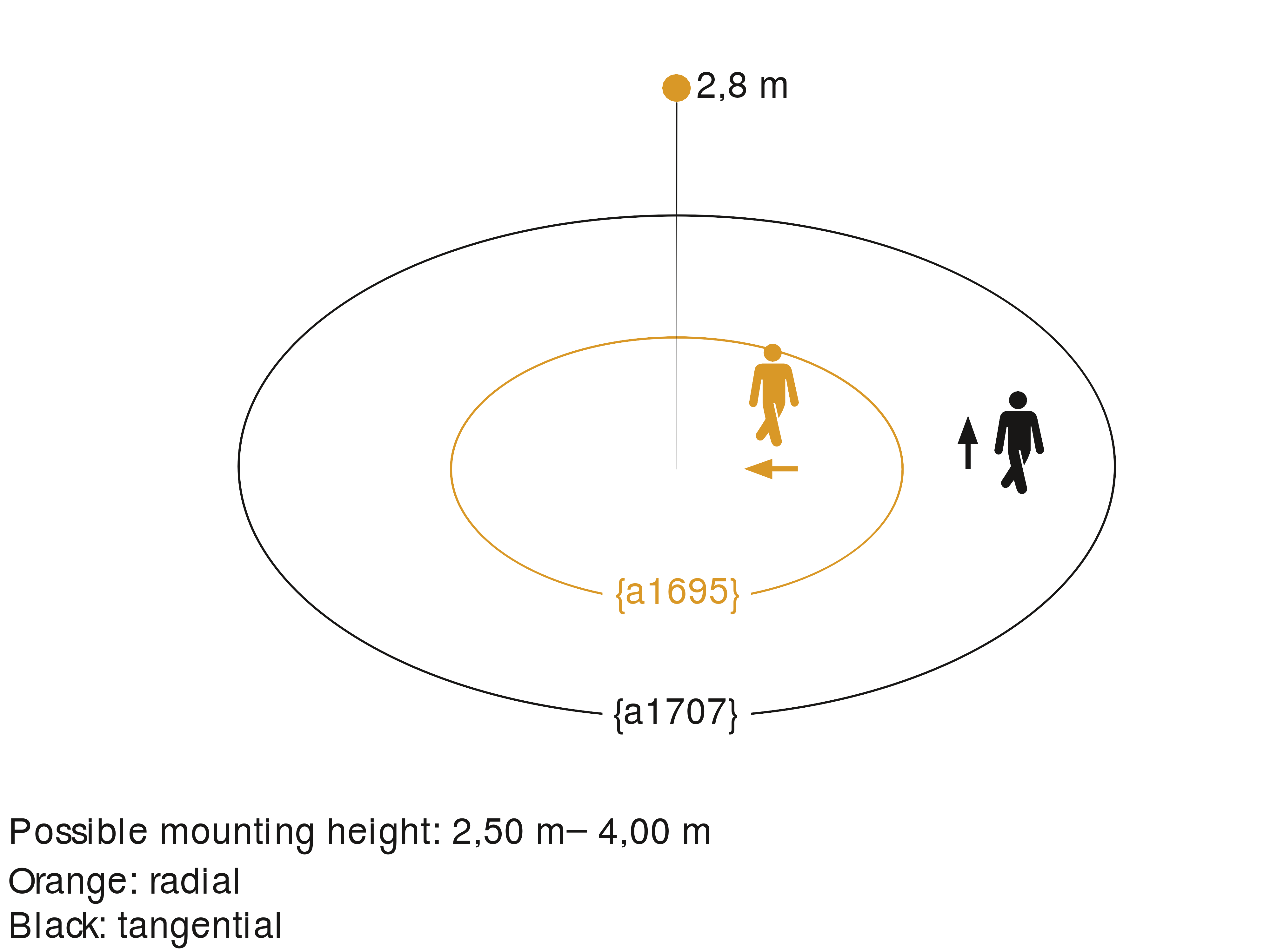

| Mounting height | 2,50 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Reach, radial | Ø 8 m (50 m²) |
| Reach, tangential | Ø 40 m (1257 m²) |
| Reach, presence | Ø 3 m (7 m²) |
| Twilight setting TEACH | Yes |
| Twilight setting | 2 – 1000 lx |
| Time setting | 5 sec – 15 min |
| Output | 2000 W |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 1000 VA |
| Fluorescent lamps, series-corrected | 400 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in µF | 176 µF |
| Constant-lighting control | No |
| Basic light level function | No |
| Functions | Normal / test mode, Manual ON / ON-OFF |
| Settings via | Remote control, Potentiometers, Smart Remote |
| With remote control | No |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| IP rating | IP20 |
| Material | Plastic |
| Ambient temperature | -20 – 50 °C |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| Version | PF - concealed, sq. |
| FIL_2_PRO_Interface | PF (Switching a floating relay) |
| FIL_4_PRO_Sensor_Technology | Passive infrared |
