| Surface | Motion detectors |
| Mains power supply | 12 – 22,5 V / 50 – 60 Hz |
| Power supply, detail | DALI bus |
| Number of Dali users | 3 |
| With bus coupling | Yes |
| Settings via | Bus |
| With remote control | No |
| Dimensions (L x W x H) | 78 x 94 x 94 mm |

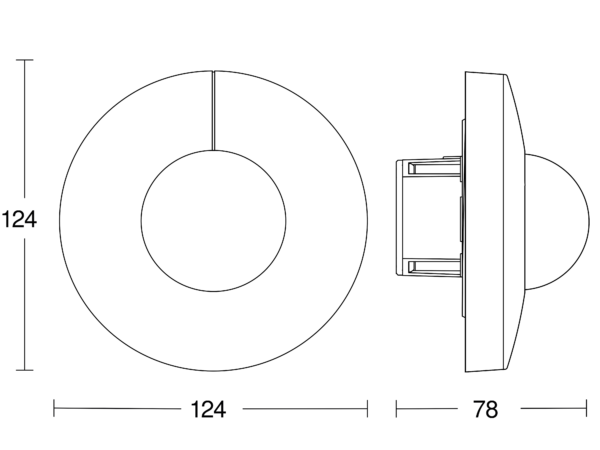

| Dimensions (Ø x H) | 124 x 78 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | DALI bus |
| Application, place | Indoors |
| Application, room | corridor / aisle multi-storey / underground car park Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,5 – 5 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 5,00 m |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Angle of aperture | 45 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

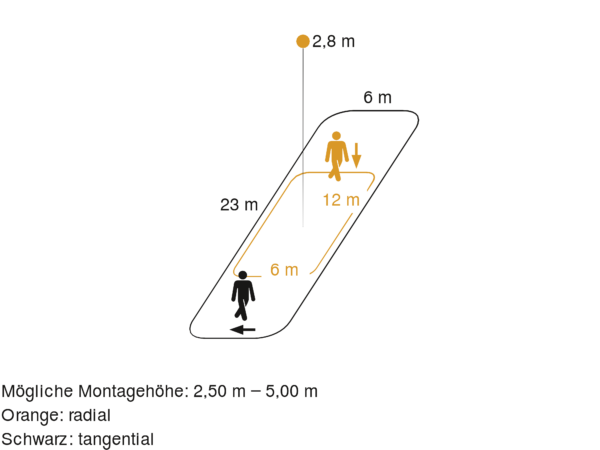

| Radial reach | 12 x 6 m (72 m²) |
| Tangential reach radius | 23 x 6 m (138 m²) |
| Switching zones | 280 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | No |
| Main light adjustable | No |
| Basic light level function | No |
| Basic light level function time | 1-30 min, all night |
| Soft light start | No |
| Constant-lighting control | No |
| Control output, Dali | Addressable/slave |
| IP rating | IP20 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | DALI-2 |
| Includes corner wall mount | No |
