| Surface | Motion detectors |
| Power supply, detail | KNX bus |
| With bus coupling | Yes |
| Settings via | ETS software Remote control Bus Smart Remote |
| With remote control | No |
| Dimensions (L x W x H) | 78 x 94 x 94 mm |

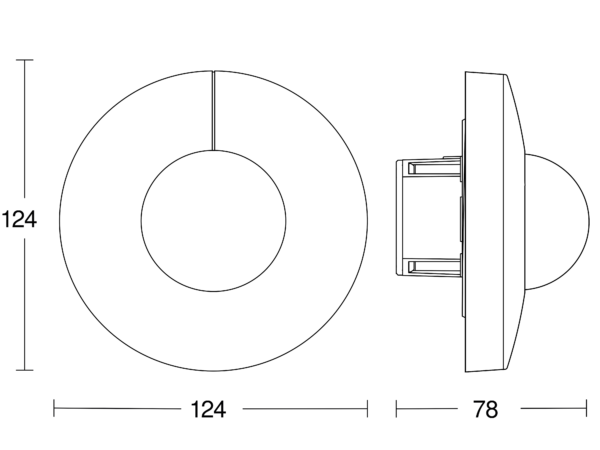

| Dimensions (Ø x H) | 124 x 78 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Interconnection via | KNX bus |
| Application, place | Indoors |
| Application, room | corridor / aisle multi-storey / underground car park Indoors |
| Installation site | ceiling |
| Type of installation | Concealed wiring |
| Mounting height | 2,50 – 5,00 m |
| Optimum mounting height | 2,5 m |
| Mounting height max. | 5,00 m |
| Detection angle | 360 ° |
| Angle of aperture | 45 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

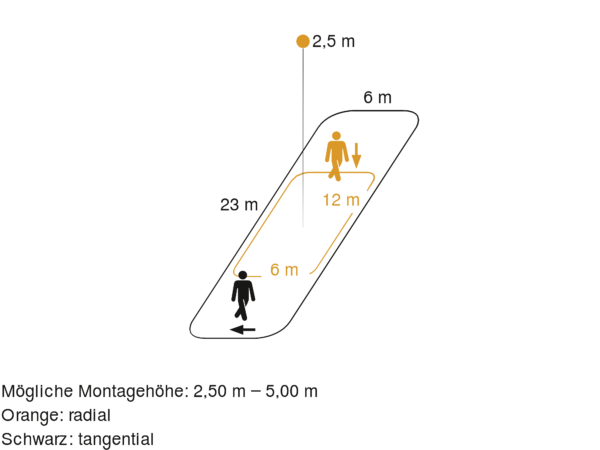

| Radial reach | 12 x 6 m (72 m²) |
| Tangential reach radius | 23 x 6 m (138 m²) |
| Switching zones | 280 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 15 Min. |
| Main light adjustable | 0 - 100 % |
| Basic light level function | Yes |
| KNX functions | Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate |
| Soft light start | Yes |
| Continuous light | selectable |
| Constant-lighting control | Yes |
| IP rating | IP20 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9003 |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
