| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |
| With remote control | No |

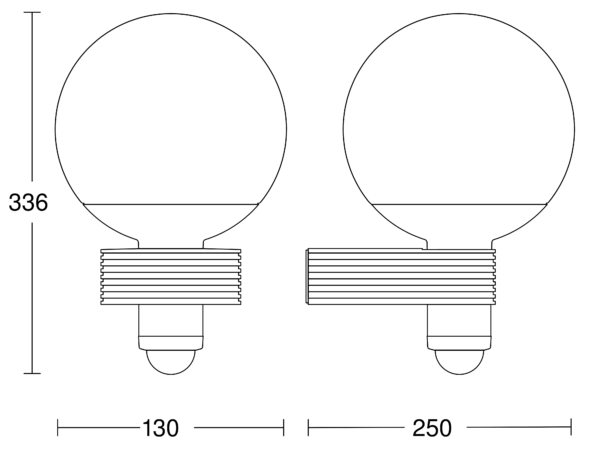

| Dimensions (L x W x H) | 250 x 215 x 336 mm |
| Sensor Technology | passive infrared |
| Interconnection | No |
| Slave modeselectable | No |
| Application, place | Outdoors |
| Application, room | outdoors front door all round the building terrace / balcony courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 6,00 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 6,00 m |
| Output | 60 W |
| Power consumption | 0,8 W |
| With lamp | No |
| Lamp | All-purpose lamp |
| Base | E27 |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

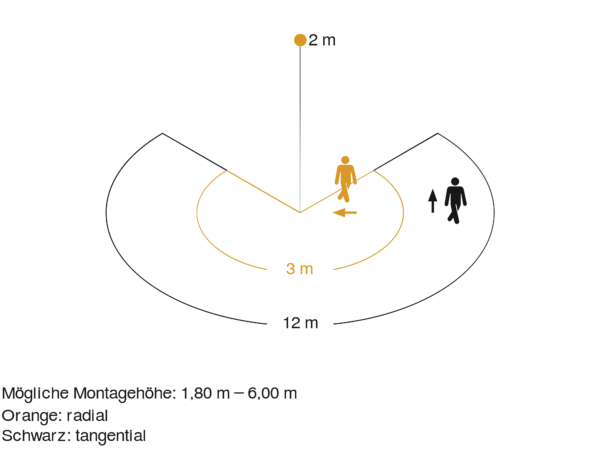

| Radial reach | r = 3 m (19 m²) |
| Tangential reach radius | r = 12 m (302 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | Yes |
| Basic light level function in per cent | 0 – 50 % |
| Basic light level function percentage, from | 0 % |
| Output | 60 W |
| Soft light start | Yes |
| Continuous light | selectable, 4h |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Plastic |

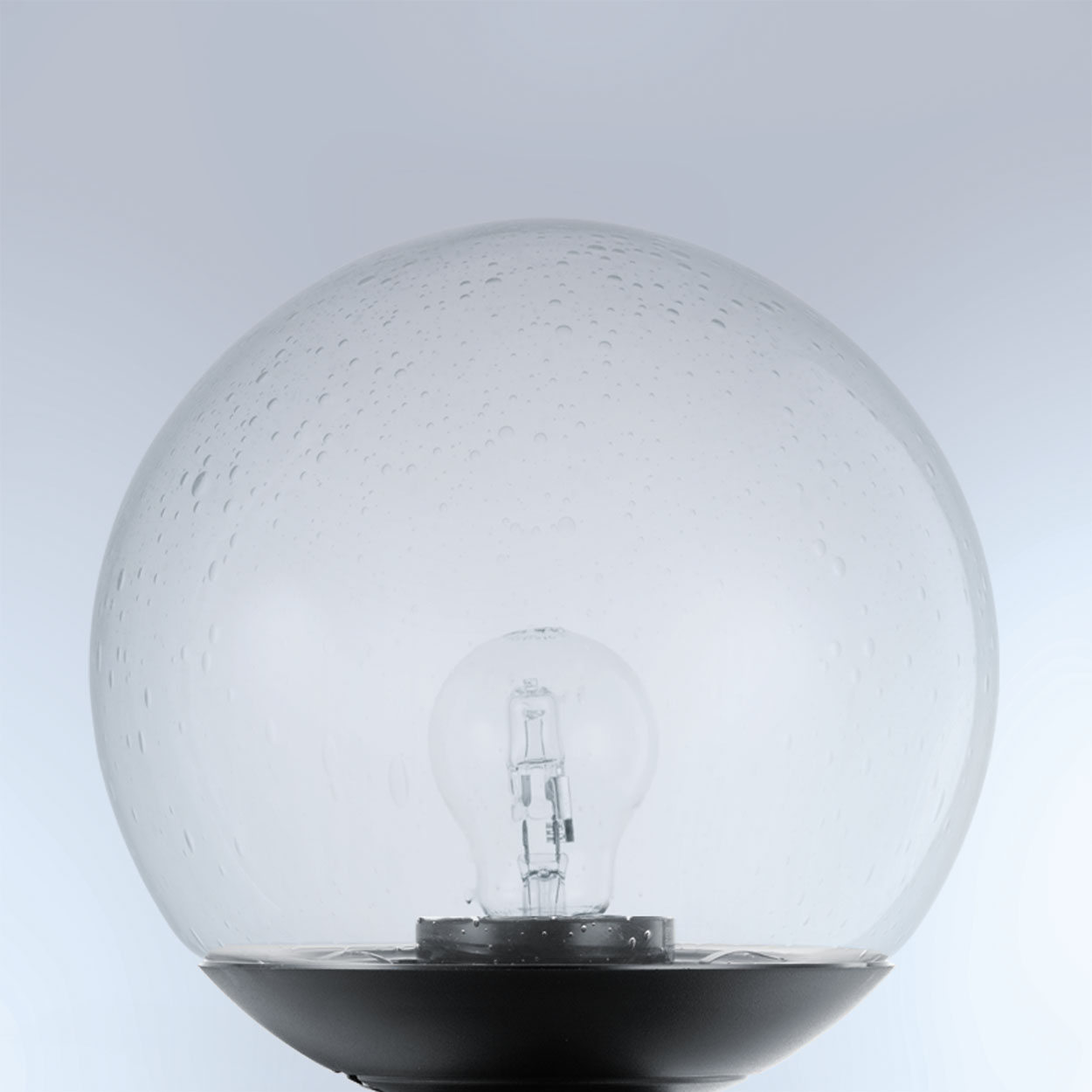

| Cover material | Glass transparent |
| Manufacturer's Warranty | 5 years |
| Cover material delivery | shrouds |
