| Dimensions (L x W x H) | 131 x 78 x 305 mm |
| Mains power supply | 220 – 240 V , 50 / 60 Hz |
| Mounting height max. | 2,00 m |

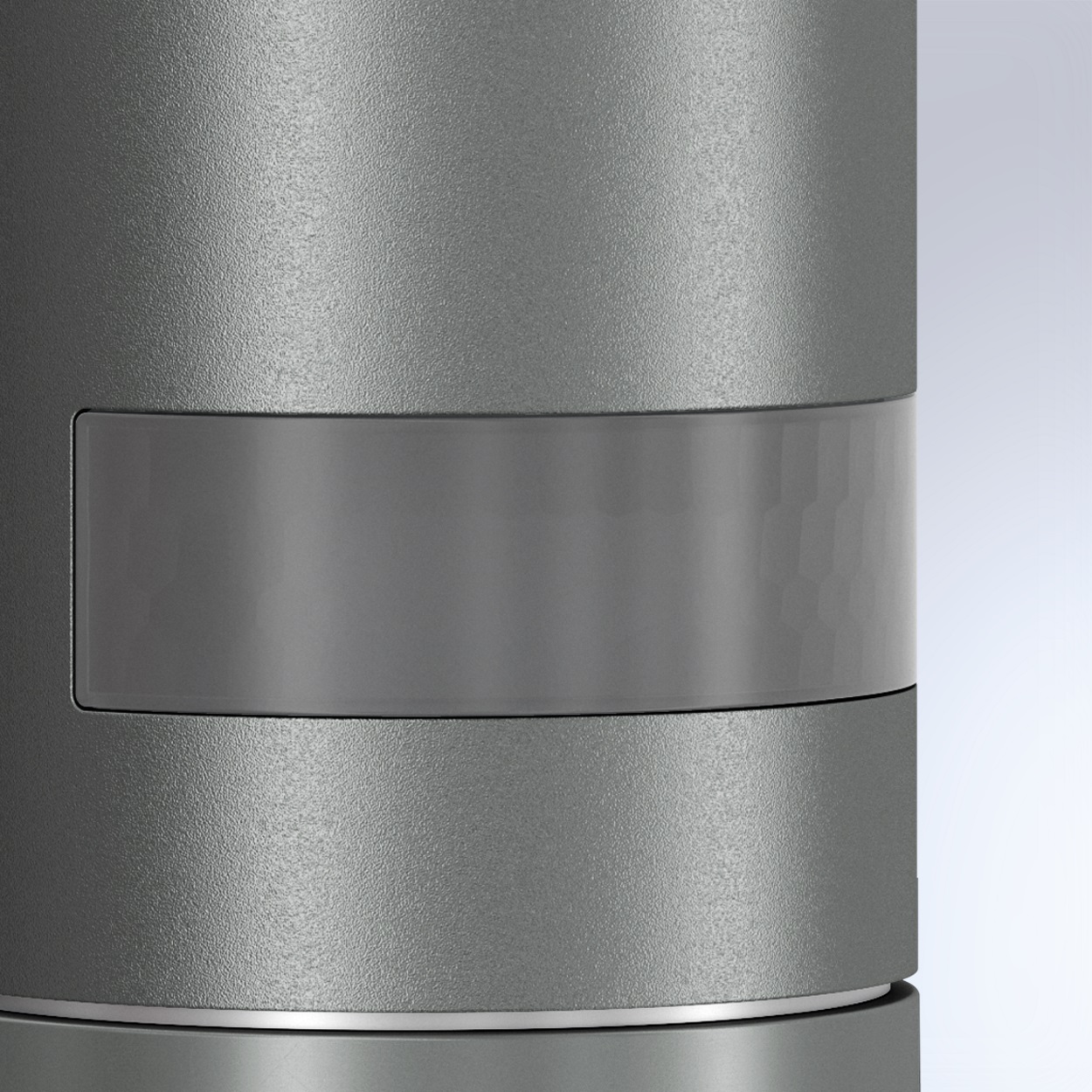

| Sensor Technology | passive infrared |
| Output | 14,3 W |
| Interconnection | No |
| Luminous flux | 781 lm |
| Efficiency | 54 lm/W |
| Colour temperature | 3000 K |
| Colour Rendering Index CRI | 80-89 |

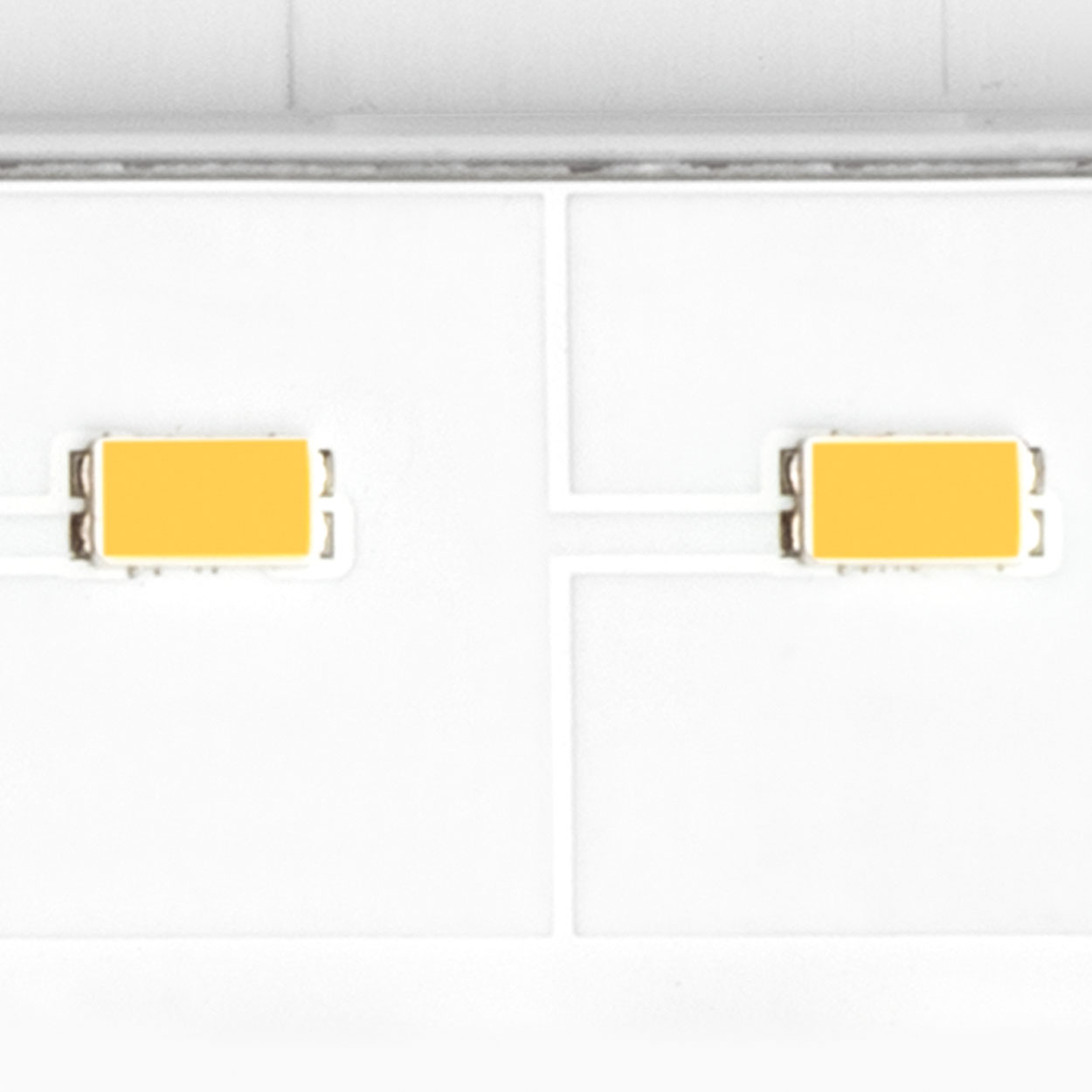

| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 180 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, tangential | passive infrared: r = 10 m (157 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 10 – 10000 lx |
| Time setting | 60 sec – 15 min |
| Basic light level function | Yes |
| Soft light start | Yes |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | -10 – 40 °C |
| Housing material | Aluminium |
| Cover material | Glass opal |
| Manufacturer's Warranty | 3 years |

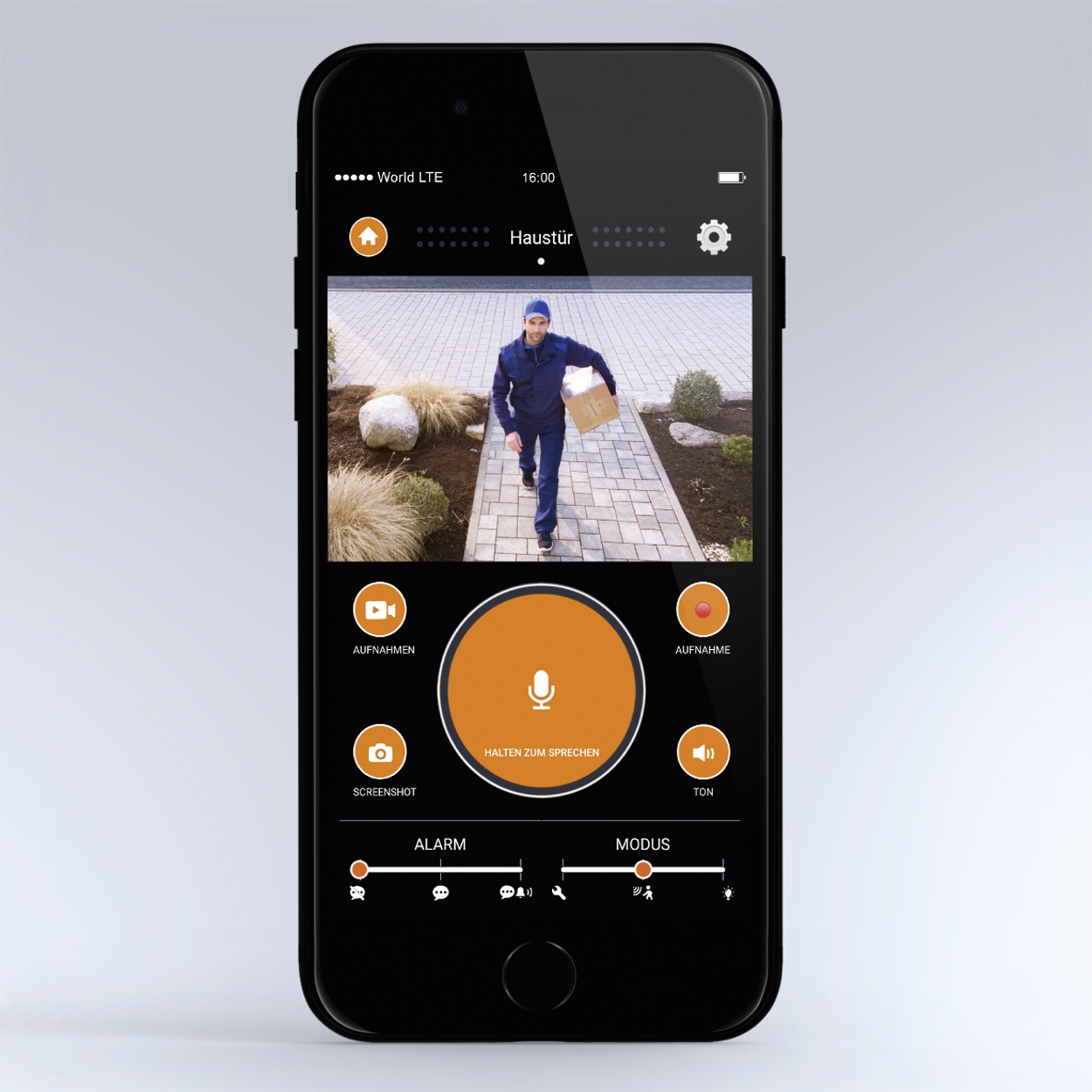

| Settings via | Smartphone |
| With remote control | Yes |
