| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |
| With remote control | No |

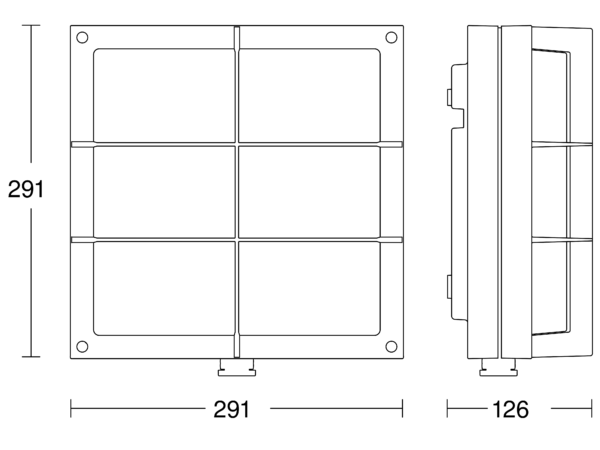

| Dimensions (L x W x H) | 126 x 291 x 303 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Interconnection via | Cable |
| Slave modeselectable | No |
| Application, place | Outdoors |
| Application, room | outdoors front door all round the building courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 2,50 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 2,50 m |
| Output | 8,5 W |
| Efficiency | 68 lm/W |

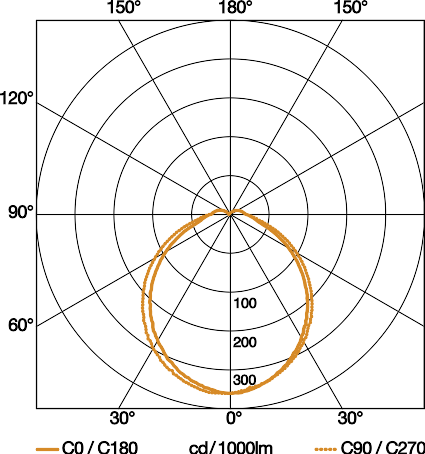

| Measured luminous flux (360°) | 576 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | = 82 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| Lifetime LED L70B50 (25°) | > 60000 h |
| Average rated life of power supply unit at 25°C | > 60000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 360 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

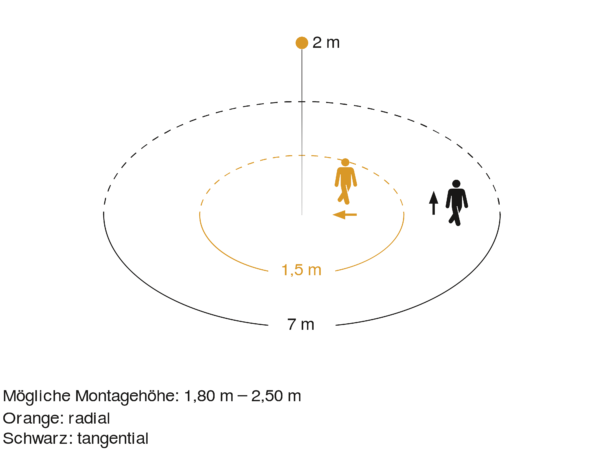

| Radial reach | r = 1.5 m (7 m²) |
| Tangential reach radius | r = 7 m (154 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Basic light level function in per cent | 10 % |
| Basic light level function percentage, from | 10 % |
| Output | 8,5 W |
| Functions | 4 programme settings geared to practical needs, can be selected on removable sensor module |
| Soft light start | Yes |
| Continuous light | selectable, 4h |
| Impact resistance | IK07 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | from -20 up to 50 °C |
| Material | Aluminium |
| Housing material | Aluminium |
| Cover material | Plastic, opal |
| Colour | Anthracite |
| Manufacturer's Warranty | 5 years |
| Cover material delivery | shrouds |
| EPREL Category | Surrounded product with integrated light source |
