| Dimensions (L x W x H) | 55 x 350 x 350 mm |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Output | 24,5 W |
| Power consumption | 0,5 W |
| Interconnection | Yes |
| Type of interconnection | Master/slave |
| Luminous flux | 3150 lm |
| Colour temperature | 4000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index CRI | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| LED life expectancy (25 °C) | 60000 h |
| Drop in luminous flux in accordance with LM80 | L80B50 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |

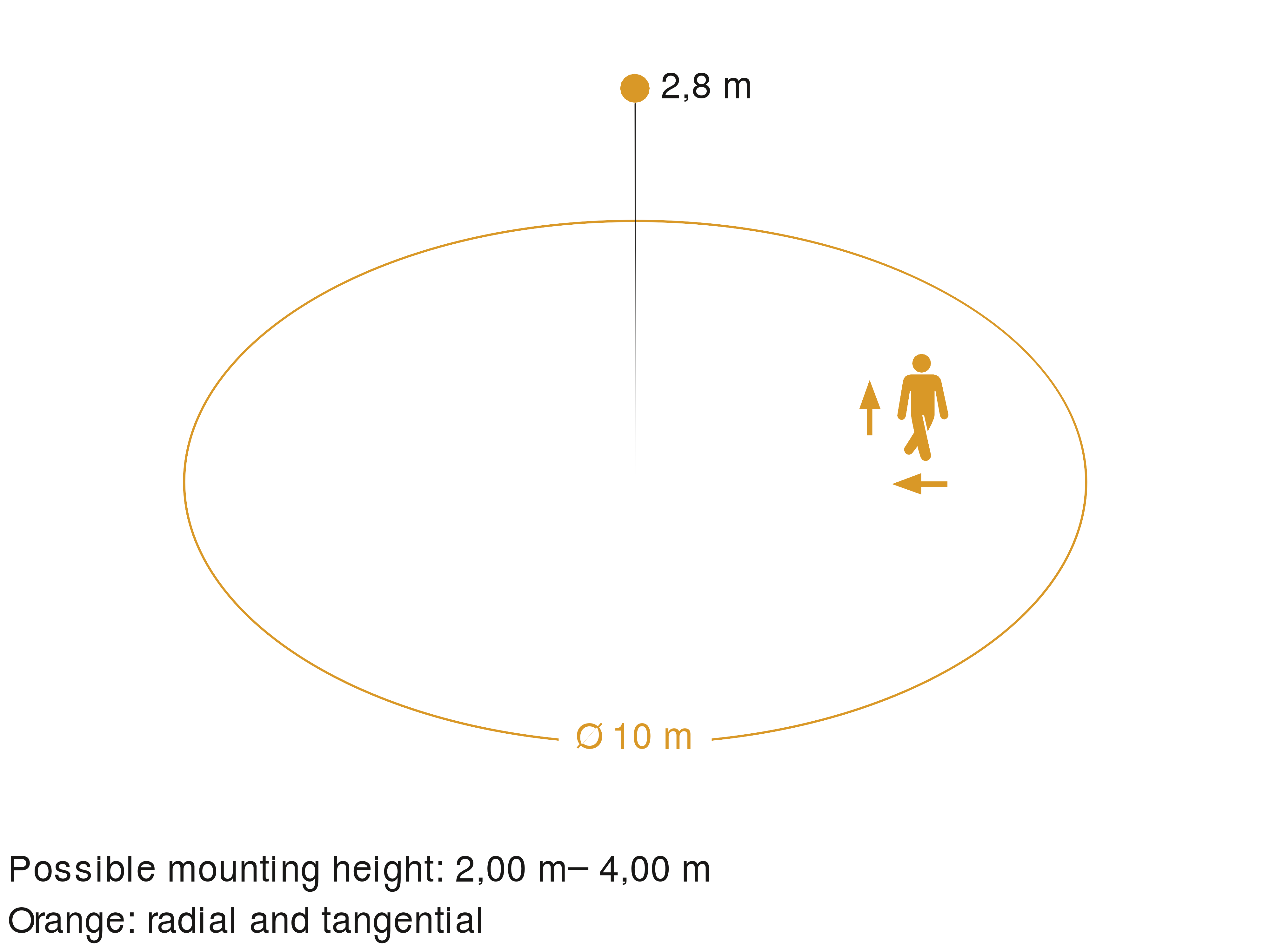

| Reach, radial | Ø 10 m (79 m²) |
| Continuous light | selectable |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 sec – 30 min |
| Basic light level function | Yes |
| Basic light level function, detail | LED Backlight |
| Basic light level function time | 10-30 min, all night |
| Functions | Group parameterisation, Manual ON / ON-OFF, Master/slave override, Neighbouring-group function, Presence function, Backlight |
| Soft light start | Yes |
| Impact resistance | IK07 |
| IP rating | IP40 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Housing material | Plastic |
| Cover material | PC, opal |
| Manufacturer's Warranty | 5 years |
| Settings via | Bluetooth |
| With remote control | No |
| Version | Neutral white |
