| Dimensions (Ø x H) | 350 x 83 mm |
| Mains power supply | 230 – 240 V / 50 – 60 Hz |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Output | 26 W |
| Power consumption | 1,2 W |
| Interconnection | Yes |
| Type of interconnection | Master/master, Master/slave |
| Luminous flux | 2496 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index CRI | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 70000 h |
| Drop in luminous flux in accordance with LM80 | L80B10 |
| Base | without |
| LED cooling system | Active Thermo Control |
| With motion detector | Yes |
| Detection | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |

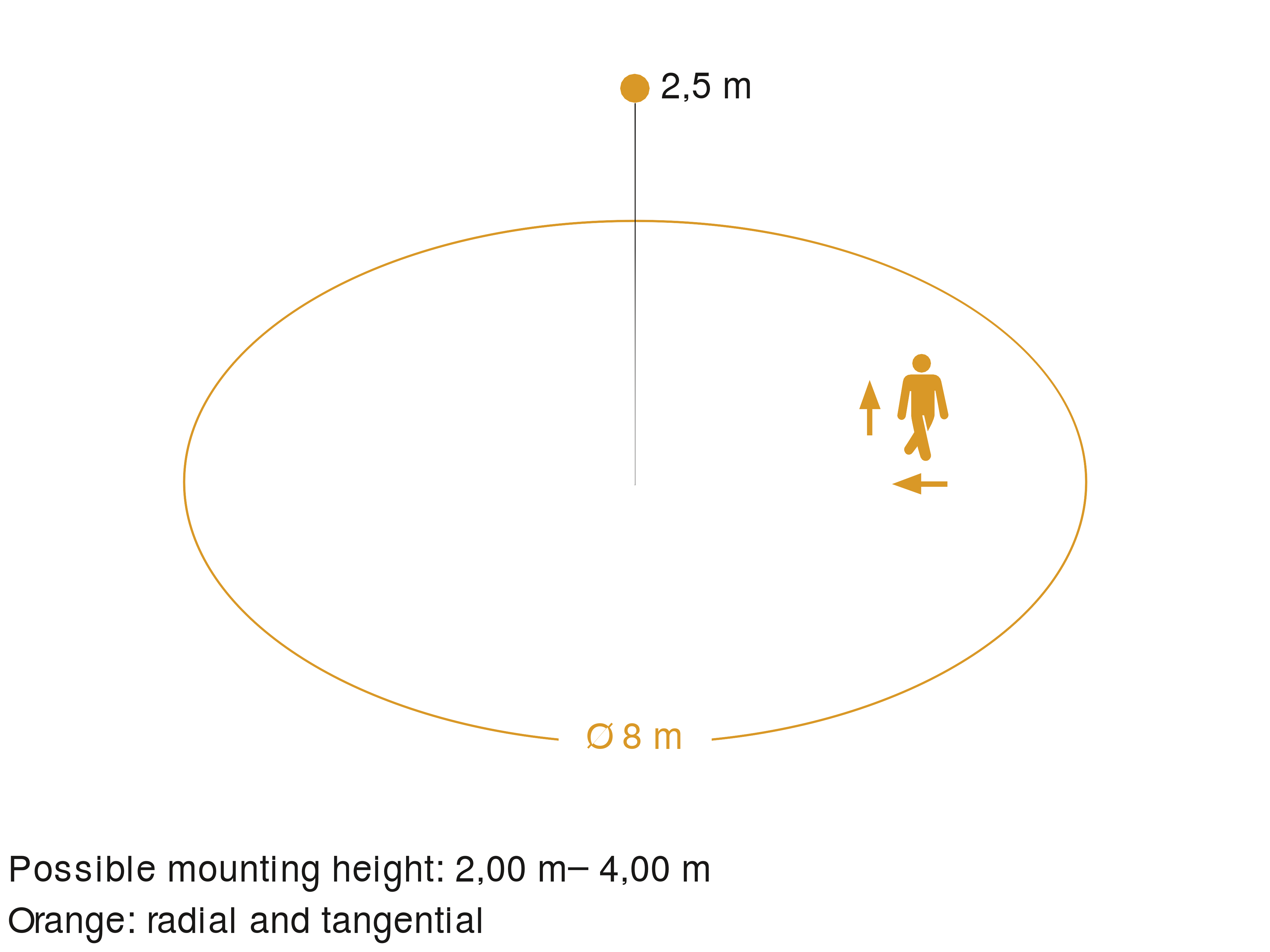

| Reach, radial | Ø 8 m (50 m²) |
| Continuous light | selectable, 4h |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 sec – 15 min |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Functions | Neighbouring-group function, Presence function, Group parameterisation, Manual ON / ON-OFF |
| Soft light start | Yes |
| Impact resistance | IK03 |
| IP rating | IP20 |
| Protection class | II |
| Ambient temperature | -10 – 50 °C |
| Housing material | Aluminium |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 5 years |
| Settings via | DIP switches, Potentiometers, Remote control, Smart Remote |
| With remote control | No |
| Version | PMMA warm white |
