| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Bluetooth |
| With remote control | No |

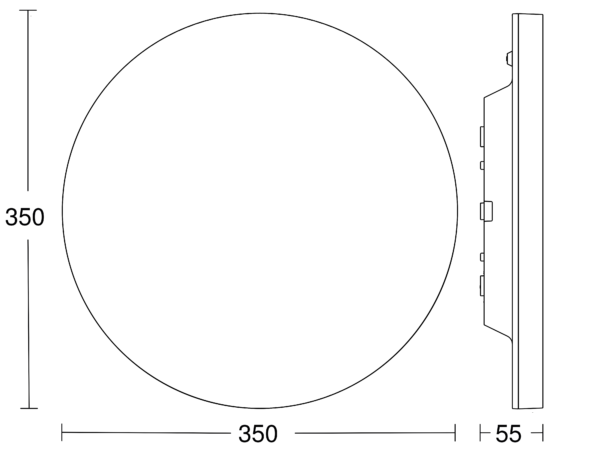

| Dimensions (Ø x H) | 350 x 55 mm |
| Sensor Technology | High frequency |
| Transmitter power | < 1 mW |
| HF-system | 5,8 GHz |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | Bluetooth Mesh Connect |
| Slave modeselectable | Yes |
| Application, place | Indoors |
| Application, room | corridor / aisle changing room function room / ancillary room kitchenette stairwell Indoors |
| Installation site | wall ceiling |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 4,00 m |
| Optimum mounting height | 2,8 m |
| Mounting height max. | 4,00 m |
| Output | 15,86 W |
| Power consumption | 0,3 W |
| Measured luminous flux (360°) | 1823 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| LED life expectancy (max. °C) | 50000 h |
| Lifetime LED L70B50 (25°) | > 60000 h |
| Drop in luminous flux in accordance with LM80 | L80B50 |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Capture | also through glass, wood and stud walls |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |

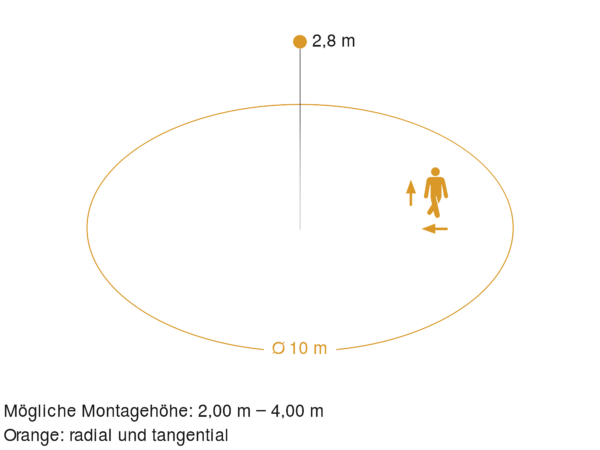

| Radial reach | Ø 10 m (79 m²) |
| Tangential reach radius | Ø 10 m (79 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 5 s – 60 Min. |
| Main light adjustable | 0 - 100 % |
| Basic light level function | Yes |
| Basic light level function, detail | LED Backlight |
| Basic light level function time | 1-60 min |
| Basic light level function in per cent | 0 – 100 % |
| Basic light level function percentage, from | 0 % |
| Output | 15,86 W |
| Functions | Group parameterisation Manual ON / ON-OFF Neighbouring group function Backlight Orientation light Connection to central battery systems Adjustable fade time when switching on and off Free selection of the light value in a luminaire group Encrypted communication Motions sensor Light sensor |
| Soft light start | Yes |
| Continuous light | selectable |
| Impact resistance | IK07 |
| IP rating | IP40 |
| Protection class | II |
| Ambient temperature | from -20 up to 40 °C |
| Material | Plastic |
| Housing material | Plastic |
| Cover material | PC, opal |
| Colour | white |
| Manufacturer's Warranty | 5 years |
| includes sheet of self-adhesive numbers | No |
| EPREL Category | Surrounded product with integrated light source |
