| Surface | Motion detectors |
| Type of accessory | Corner adapter |
| With bus coupling | Yes |
| Settings via | ETS software Remote control Bus Smart Remote |
| With remote control | Yes |

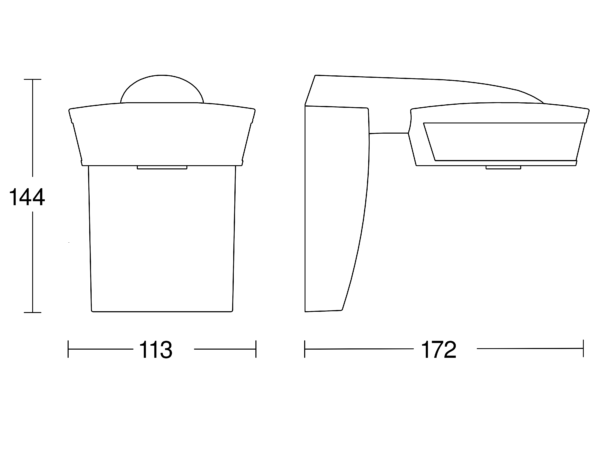

| Dimensions (L x W x H) | 172 x 113 x 144 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Type of interconnection | Master/master Master/slave |
| Interconnection via | KNX bus |
| Application, place | Indoors Outdoors |
| Application, room | multi-storey / underground car park outdoors warehouse front door all round the building courtyard & driveway Indoors |
| Installation site | wall ceiling corner |
| Type of installation | Surface wiring |
| Mounting height | 2,00 – 5,00 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 5,00 m |
| With motion detector | Yes |
| Detection angle | 300 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | Yes |

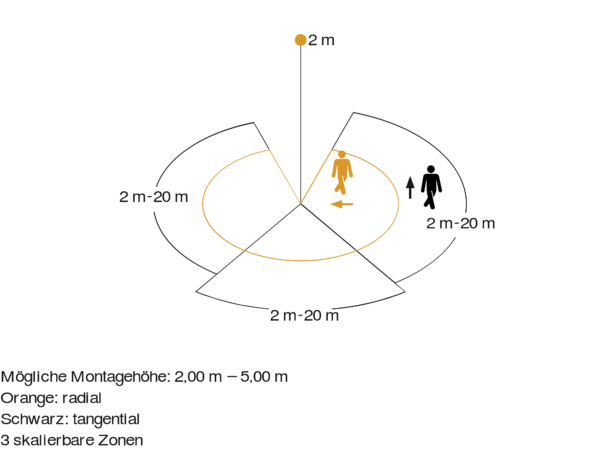

| Reach, detail | Reach adjustable from 2 - 20 m in 3 directions (100° in each) |
| Radial reach | r = 4 m (42 m²) |
| Tangential reach radius | r = 20 m (1047 m²) |
| Switching zones | 1360 switching zones |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 60 s – 255 Min. |
| Main light adjustable | 0 - 100 % |
| Basic light level function | Yes |
| Basic light level function time | 1-255 min |
| KNX functions | Light output 2x Presence output Light level Constant-lighting control Basic light level function Photo-cell controller Close range Individual pyro evaluation Logic gate |
| Soft light start | Yes |
| Continuous light | selectable |
| Constant-lighting control | Yes |
| IP rating | IP54 |
| Ambient temperature | from -20 up to 50 °C |
| Material | Plastic |
| Colour | white |
| Colour, RAL | 9010 |
| Manufacturer's Warranty | 5 years |
| IDs, certificates | VDE |
| Includes corner wall mount | Yes |
