| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |

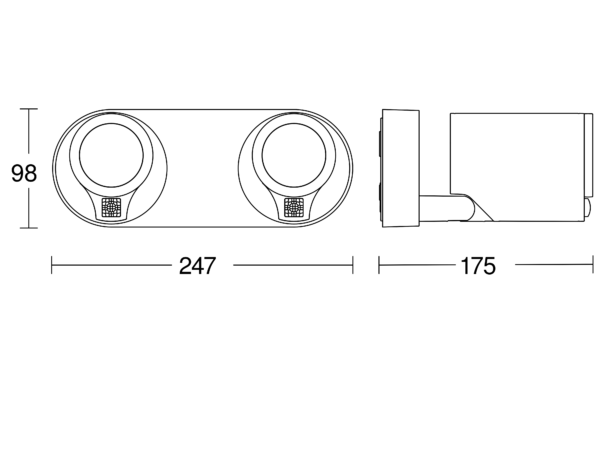

| Dimensions (L x W x H) | 175 x 247 x 98 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Interconnection via | Cable |
| Application, place | Outdoors |
| Application, room | outdoors all round the building terrace / balcony courtyard & driveway |
| Installation site | wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 2,50 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 2,50 m |
| Output | 14,95 W |
| Measured luminous flux (360°) | 1024 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM5 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, LED lamp |
| Lamp | LED can be replaced |
| Lifetime LED L70B50 (25°) | > 20000 h |
| Base | GU10 |
| With motion detector | Yes |
| Detection angle | 90 ° |
| Angle of aperture | 90 ° |
| Sneak-by guard | No |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | No |

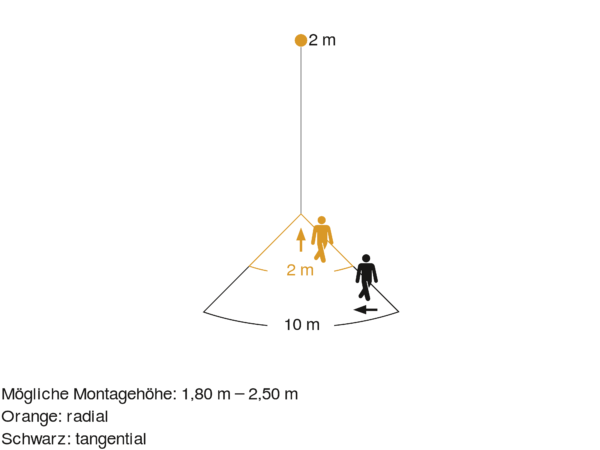

| Radial reach | r = 2 m (3 m²) |
| Tangential reach radius | r = 10 m (79 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 1000 lx |
| Twilight setting TEACH | No |
| Time setting | 8 s – 35 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 14,95 W |
| Soft light start | No |
| Continuous light | selectable |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | from -20 up to 40 °C |
| Housing material | Aluminium |
| Cover material | Plastic, transparent |
| Colour | Anthracite |
| Manufacturer's Warranty | 3 years |
| Includes corner wall mount | No |
| EPREL Category | Surrounded product with separate light source (e.g. E27) |
