| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Settings via | Potentiometers |

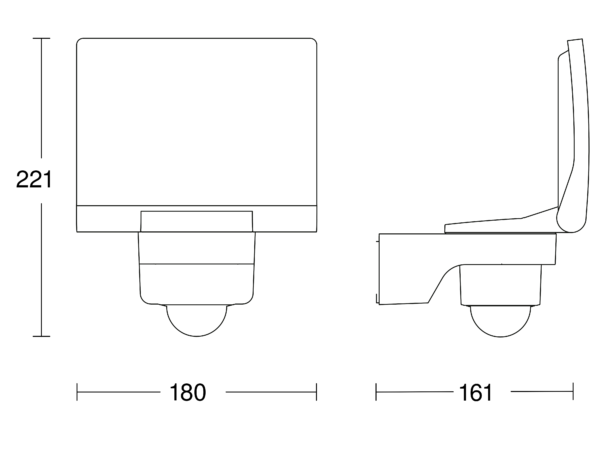

| Dimensions (L x W x H) | 161 x 180 x 223 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Interconnection via | Cable |
| Interconnection, number | maximum of 10 floodlights |
| Application, place | Outdoors |
| Application, room | outdoors all round the building terrace / balcony courtyard & driveway |
| Installation site | wall corner |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 6 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 6,00 m |
| Output | 19,3 W |

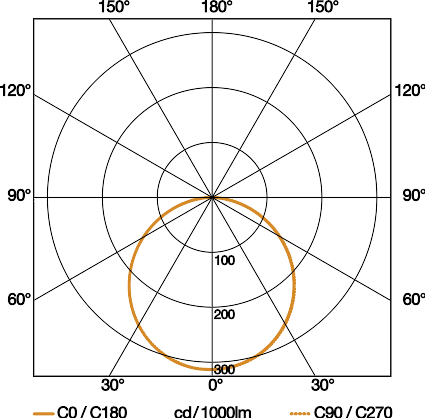

| Measured luminous flux (360°) | 2124 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| Lifetime LED L70B50 (25°) | > 60000 h |
| Base | without |
| LED cooling system | HCMC (High Conductive Magnesium Composite) |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |

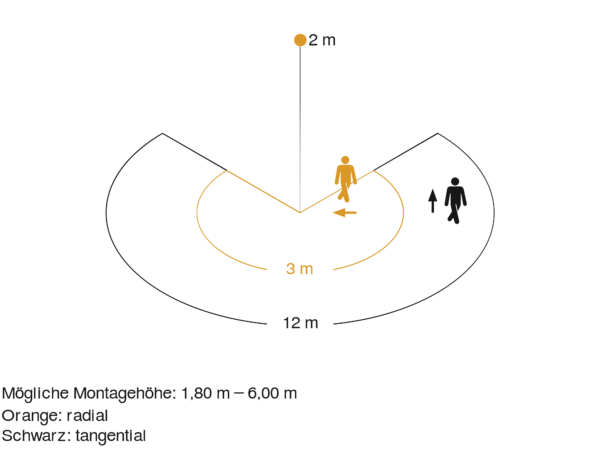

| Radial reach | r = 3 m (19 m²) |
| Tangential reach radius | r = 12 m (302 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | No |
| Time setting | 10 s – 15 Min. |
| Main light adjustable | No |
| Basic light level function | No |
| Output | 19,3 W |
| Soft light start | No |
| Continuous light | selectable |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Housing material | HCMC |
| Cover material | Plastic, opal |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
| EPREL Category | Light source |
