| Mains power supply | 220 – 240 V / 50 – 60 Hz |

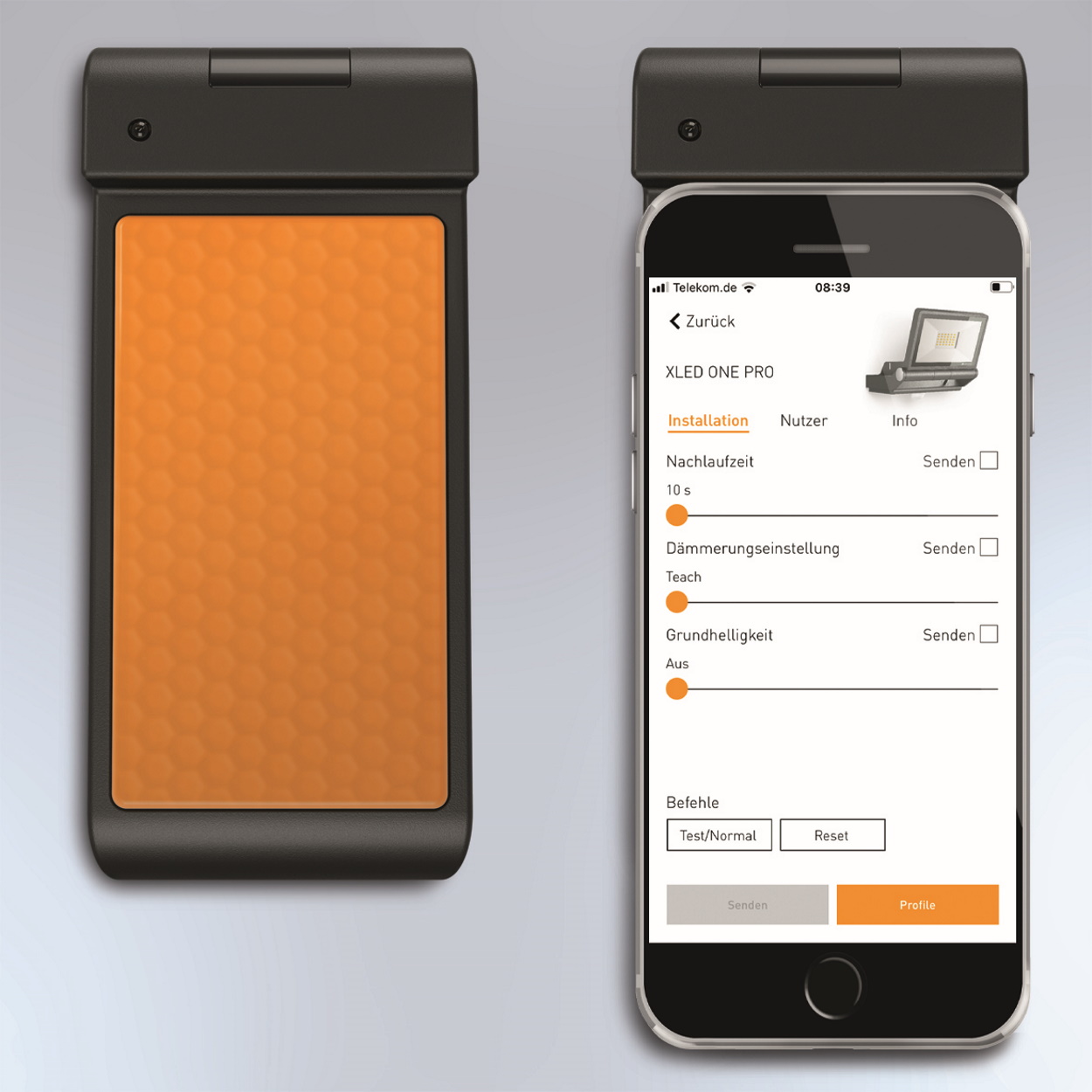

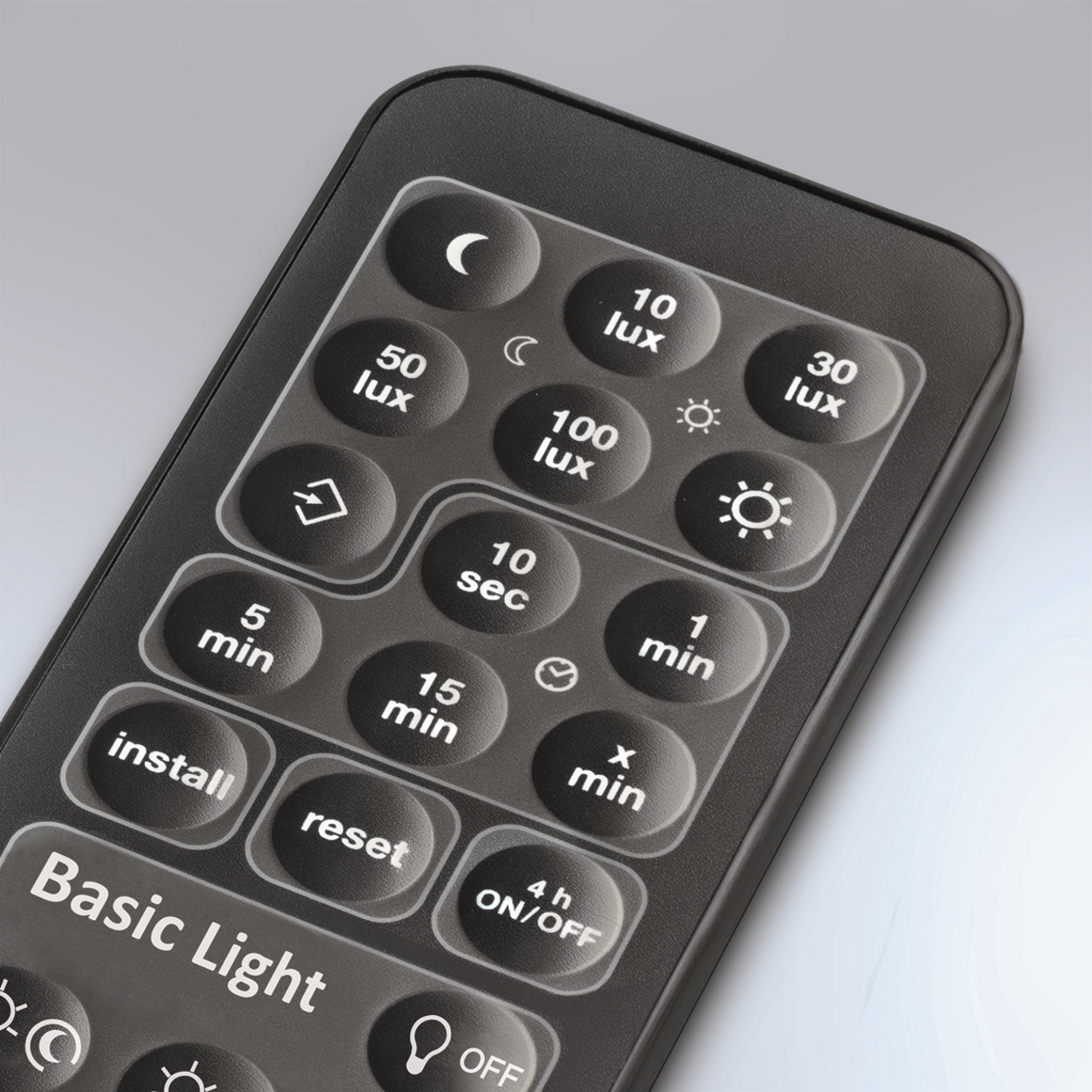

| Settings via | Remote control Potentiometers Smart Remote |
| Dimensions (L x W x H) | 202 x 259 x 250 mm |
| Sensor Technology | passive infrared |
| Interconnection | Yes |
| Interconnection via | Cable |
| Slave modeselectable | No |
| Application, place | Outdoors |
| Application, room | outdoors garden front door courtyard & driveway all round the building |
| Installation site | ceiling wall |
| Type of installation | Surface wiring |
| Mounting height | 1,80 – 6,00 m |
| Optimum mounting height | 2 m |
| Mounting height max. | 6,00 m |
| Output | 33,8 W |
| Measured luminous flux (360°) | 4370 lm |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Colour Rendering Index | 80-89 |
| With lamp | Yes, STEINEL LED system |
| Lamp | LED cannot be replaced |
| Lifetime LED L70B50 (25°) | > 36000 h |
| Base | without |
| LED cooling system | Passive Thermo Control |
| With motion detector | Yes |
| Detection angle | 240 ° |
| Angle of aperture | 180 ° |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | No |
| Mechanical scalability | No |

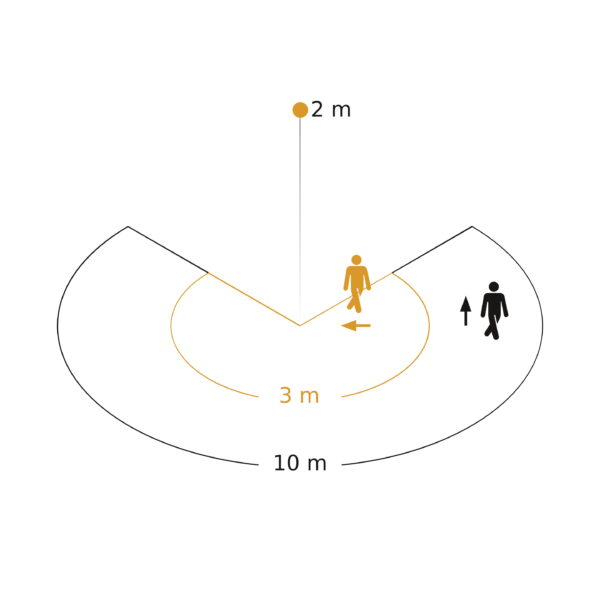

| Radial reach | r = 3 m (19 m²) |
| Tangential reach radius | r = 10 m (209 m²) |
| Photo-cell controller | Yes |
| Twilight setting | 2 – 2000 lx |
| Twilight setting TEACH | Yes |
| Time setting | 8 s – 35 Min. |
| Main light adjustable | No |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Basic light level function in per cent | 10 % |
| Basic light level function percentage, from | 10 % |
| Output | 33,8 W |
| Functions | DIM function Light sensor Motions sensor Orientation light |
| Soft light start | Yes |
| LED lamps < 2 W | 10 W |
| LED lamps > 2 W < 8 W | 64 W |
| LED lamps > 8 W | 64 W |
| Capacitive load in uF | 88 µF |
| Impact resistance | IK03 |
| IP rating | IP44 |
| Protection class | I |
| Ambient temperature | -20 – 40 °C |
| Housing material | Aluminium |
| Cover material | Glass transparent |
| Colour | white |
| Manufacturer's Warranty | 5 years |
| Includes corner wall mount | No |
| Cover material delivery | shrouds |
| EPREL Category | Light source |
