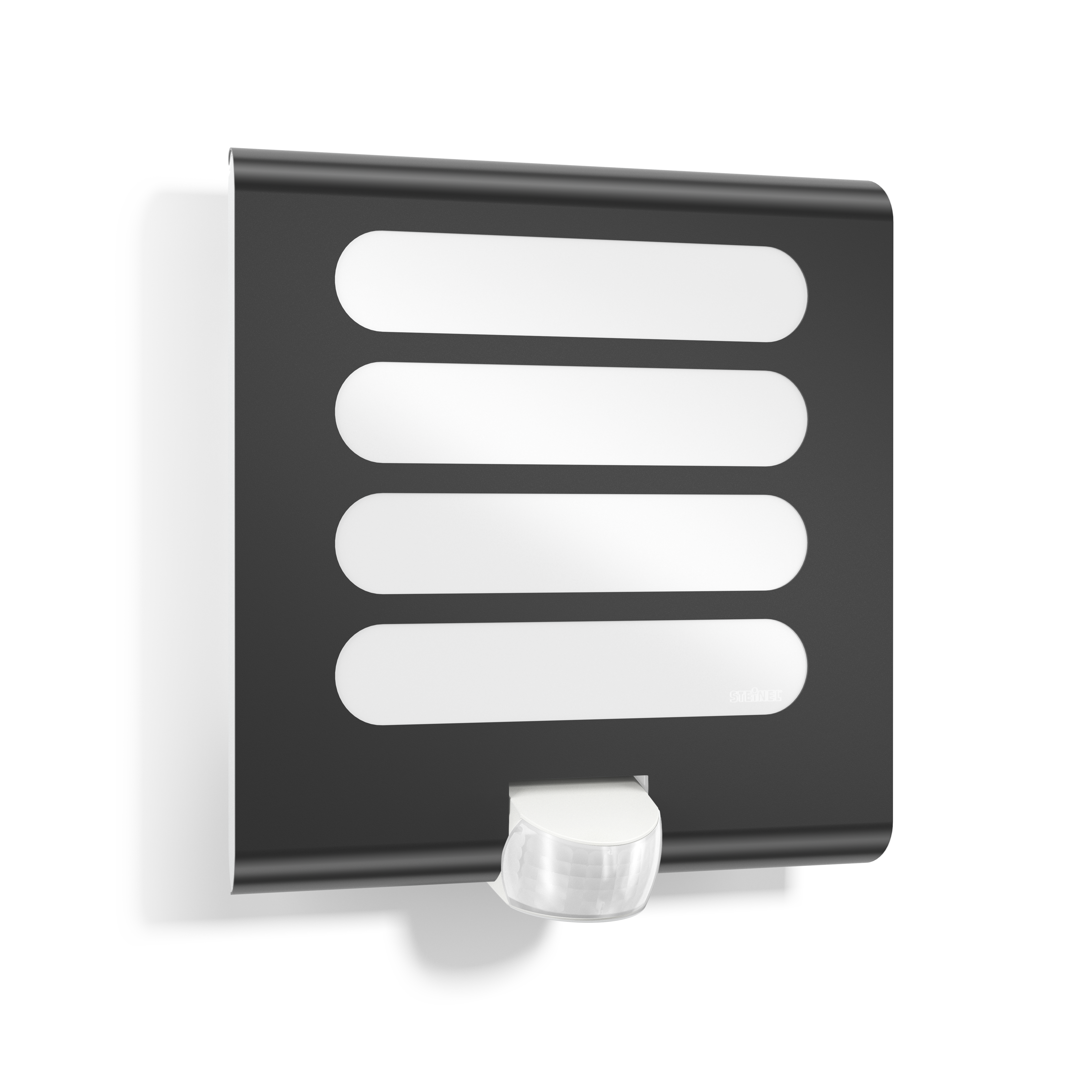

Nevalux L 224 LED Anthracite
EAN-No. 4007841 033224
This product is being replaced by a successor product.
Go to successor product · L 240 S Anthracite (056506)Elegant ambient light. L 224 LED sensor-switched outdoor light. Modern look thanks to the stainless steel panel with horizontal slots for optimum illumination (410 lm). The square light combines innovative STEINEL LED and high-precision IR sensor technology. 180° angle of coverage, 10 m reach, 7,5 W power consumption.
- Including STEINEL LED system
- LED ambient light
- Rustproof stainless steel trim
- Impact-resistant material rated to IK07
Dimensions
Dimensions L × W × H
251 x 246 x 84 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
7,5 W
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (14 m²)
Tangential range
r = 10 m (157 m²)
Mounting height
1,80 – 3,00 m
Optimal mounting height
2 m
Connectivity
Networking
No
Lighting technology
Measured luminous flux 360°
410 lm
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
No
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 sec – 35 min
Base light function
No
Settings via
Potentiometers
Housing & material
Impact resistance
IK07
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 50 °C
Housing material
Stainless steel
Cover material
Plastic, opal
Mounting location
wall
Application location
Outdoors
Mounting type
Surface wiring
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Scope of delivery & warranty
Manufacturer warranty
3 years
