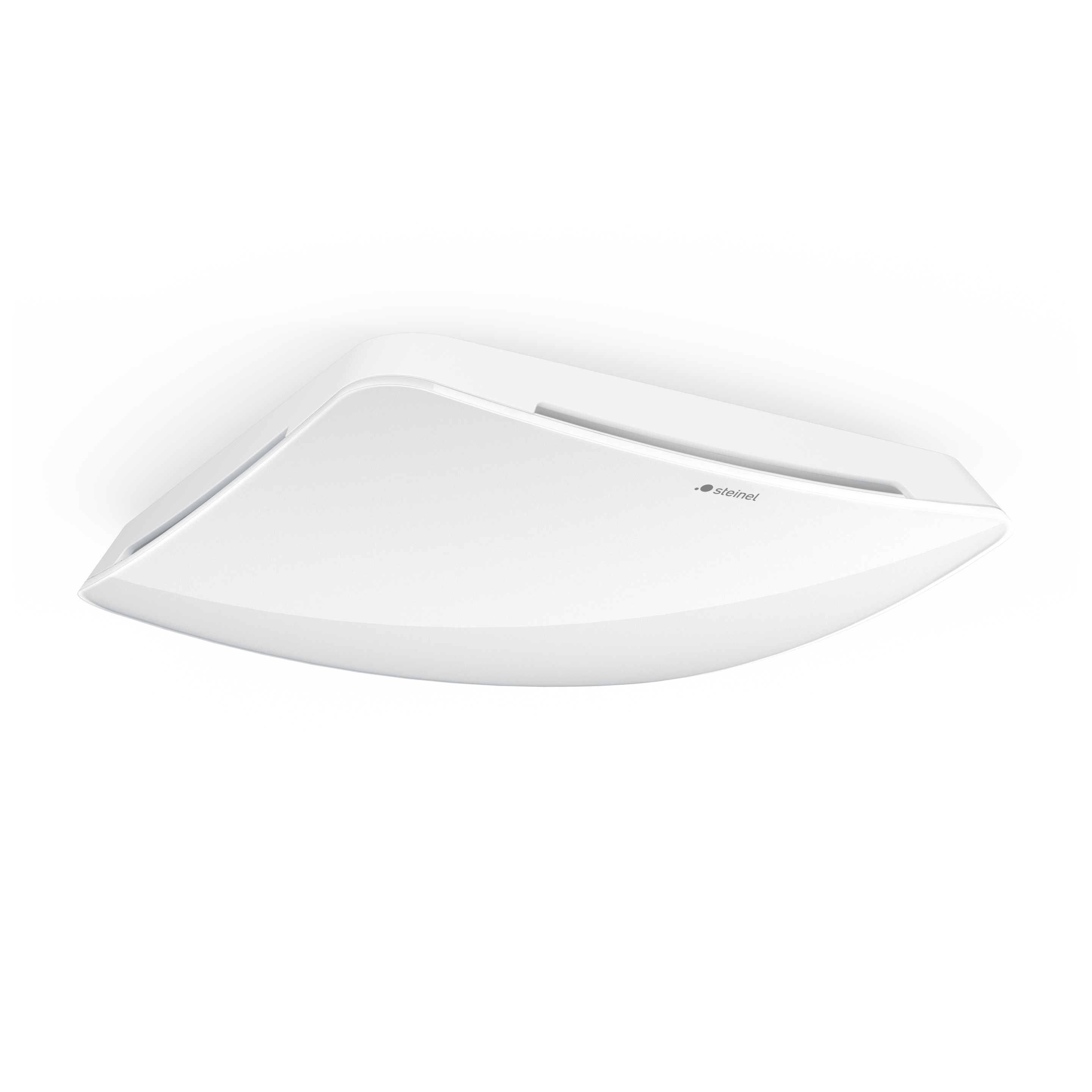

Nevalux Multisensor Air KNX

ELDAS® no. 535 938 801

EAN-No. 4007841 056346

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Multisensor AIR KNX, the air, brightness and temperature specialist. Multisensor Air KNX delivers reliable additional information to the building management system. It measures temperature, humidity, air pressure, volatile organic compounds (VOC), CO2 concentration as well a brightness. Without True Presence® detection. But geared towards the design if the True Presence family. For a modern ceiling look all round. KNX interface for easy integration.

UV-resistant plastic

Identification

Version Other

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 33 x 123 x 123 mm

Electrical

Mains connection 30 V

Own consumption 0,5 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology Multisensor

With motion detector No

Mounting height 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master\nMaster/slave

Networking via KNX bus

KNX functions Comfort\nCO2\nLight level\nHVAC output\nAir pressure\nHumidity output\nDewpoint\nTemperature output\nVOC\nPhoto-cell controller\nLogic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function Yes

Main light adjustable No

Settings via ETS software\nBluetooth\nBus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors care room classroom conference room / meeting room duty room hotel room lecture hall one-person office open-plan office reception / lobby recreation room sports hall

Colour white

RAL colour 9016

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Data sheet User manual Declaration of conformity
