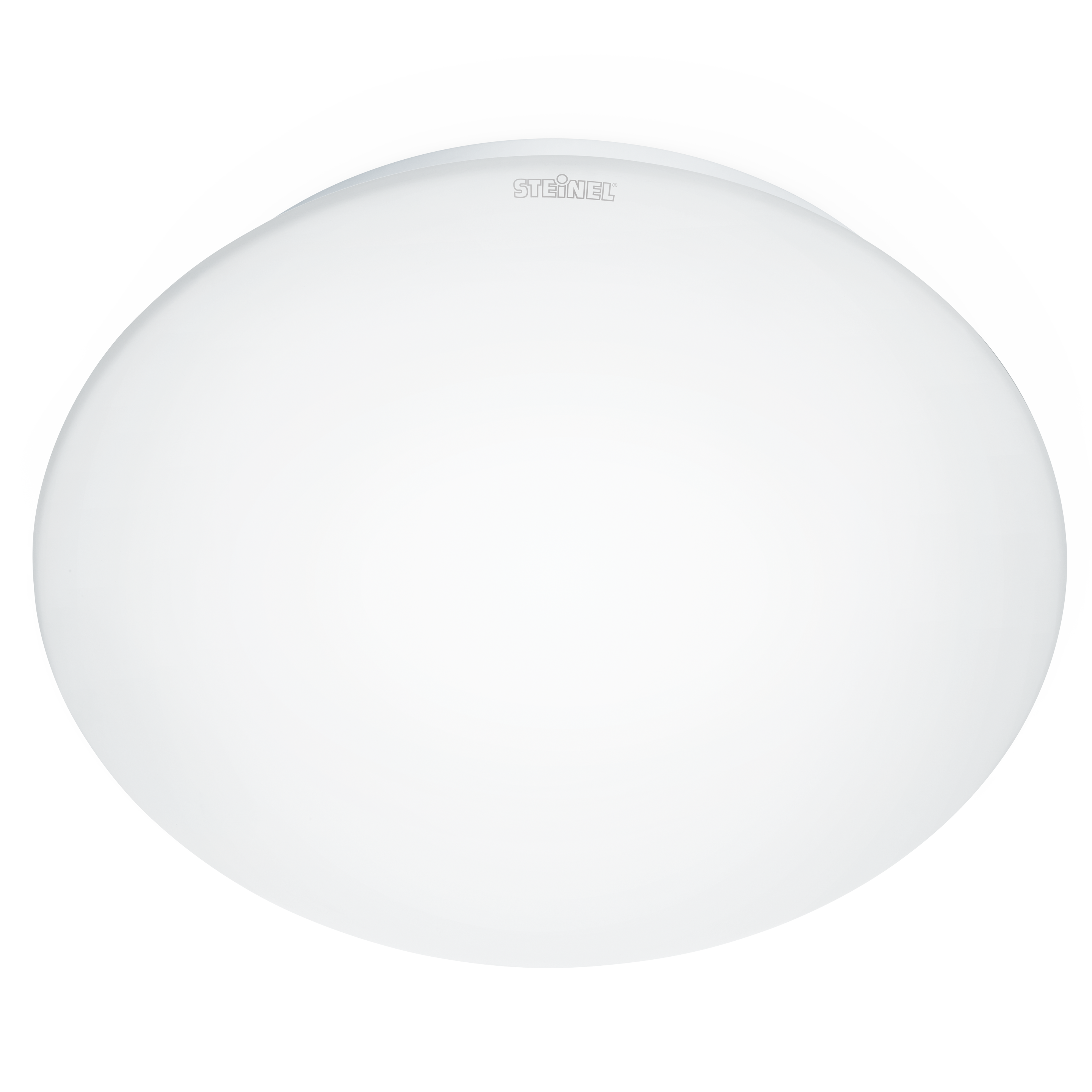

Nevalux RS 160 LED Glas

ELDAS® no. 941 000 009

EAN-No. 4007841 053987

This product is being replaced by a successor product.

Go to successor product · RS PRO P2 S warm white (056100)

Can be interconnected with XXL lighting. The sensor-switched indoor light in exquisite opal glass sets off walls and ceilings in corridors, hallways, stairwells or bathrooms with stunning effect. 3000 K colour temperature, 1000 lm light output, 9,5 W consumption. With 360° high-frequency sensor and 3 to 8 m reach. Facility for connecting external fan. With optional manual override (4 h). Can be interconnected to create lighting groups.

Including STEINEL LED system
4-hour manual override (optional)
High-quality opal glass shade
Facility for connecting fan

Variants

Luminous flux 1000 lm

Dimensions

Dimensions Ø × H 310 x 125 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 9,5 W

Sensor technology

Sensor technology High frequency

Transmission power < 1 mW

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Electronic scalability Yes

Mechanical scalability No

Connectivity

Networking Yes

Lighting technology

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 90-100

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Continuous light selectable, 4h

Luminous flux 1000 lm

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 sec – 15 min

Housing & material

Impact resistance IK00

Protection class (IP) IP44

Protection class II

Ambient temperature -10 – 40 °C

Housing material Glass

Cover material Glass opal

Scope of delivery & warranty

Manufacturer warranty 3 years

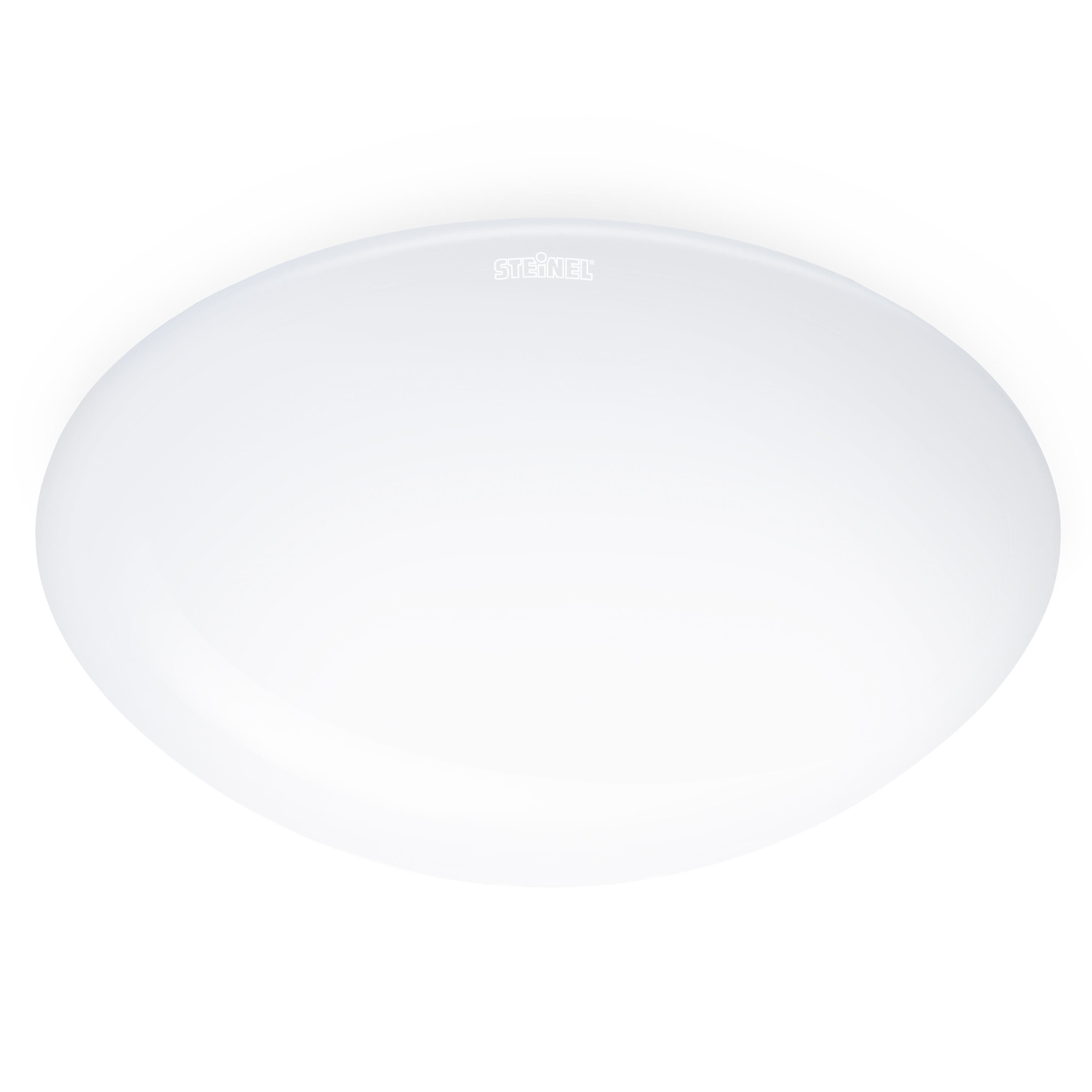

Sensor detection range

Data sheet User manual
