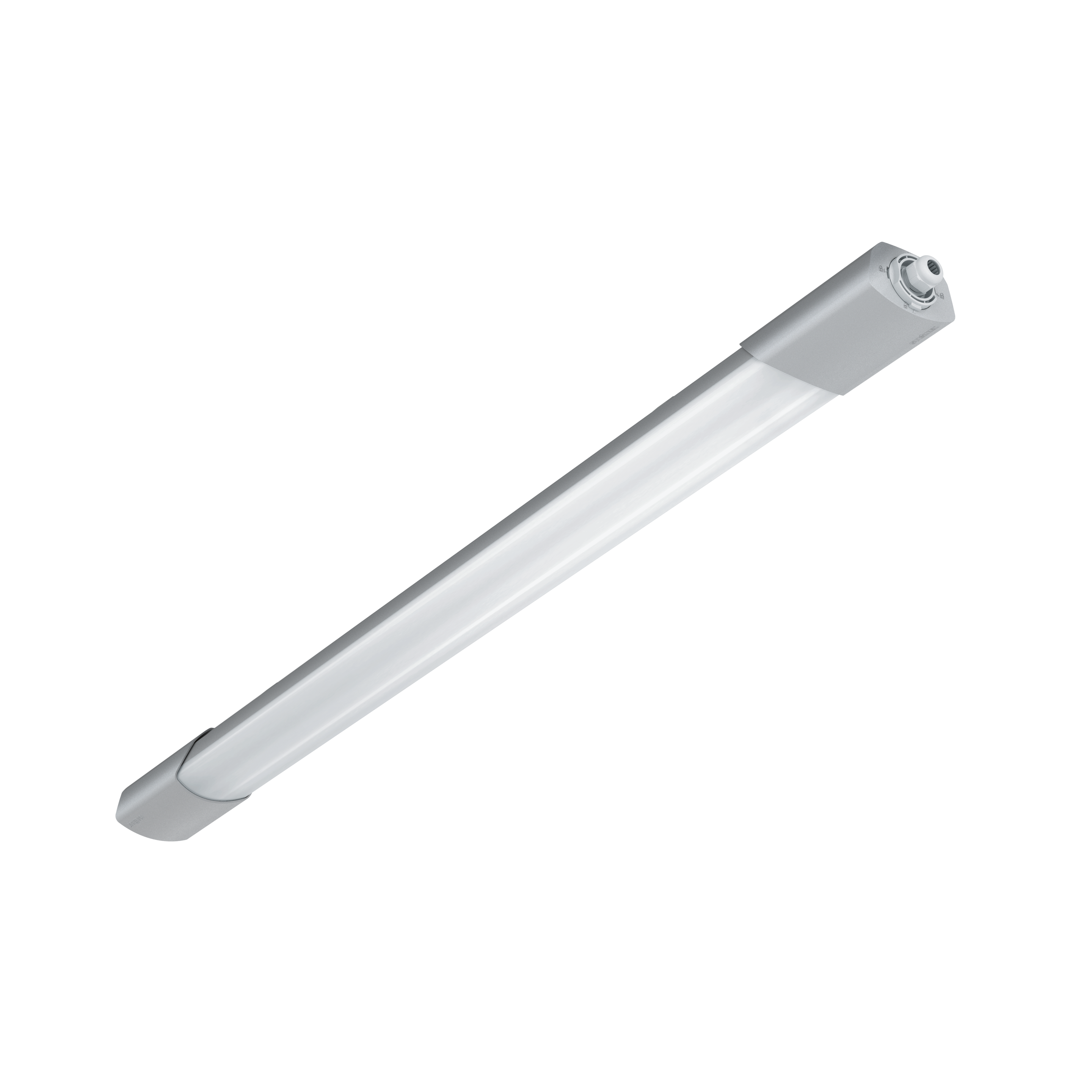

Nevalux RS PRO 5100 C without motion detector

Nevalux RS PRO 5100 C without motion detector

ELDAS® no. 941 336 979 · EAN-No. 4007841 079178

Technical data Illustrations Wiring diagrams Downloads
Nevalux Nevalux Connect

Nevalux RS PRO 5100 C without motion detector

ELDAS® no. 941 336 979

EAN-No. 4007841 079178

This product is being replaced by a successor product.

Go to successor product · RS PRO 5100 SC with motion detector & Bluetooth (078881)

Our engineers agreed: The new damp-proof light should be simple and good. Easy to install and maintain, good in energy efficiency, function and quality. The moisture-proof luminaire the world has been waiting for. Robust, highly functional, very easy to install. When networked with a sensor variant, functions, e.g. basic light, can be taken over by the latter. With 4250 lm at 31 W and 4000 K.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 0 - 100 %
  • Adjustable main light brighness (0 - 100%)
  • Adjustable mounts for easy installation

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W
Own consumption 0,45 W

Sensor technology

With motion detector No
Electronic scalability Yes

Connectivity

Networking via Bluetooth Mesh Connect

Lighting technology

Measured luminous flux 360° 4250 lm
Colour temperature 4000 K
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10

Settings

Base light function Yes
Base light function time 1-60 min
Main light adjustable 0 - 100 %

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Technical drawing

Sensor detection range

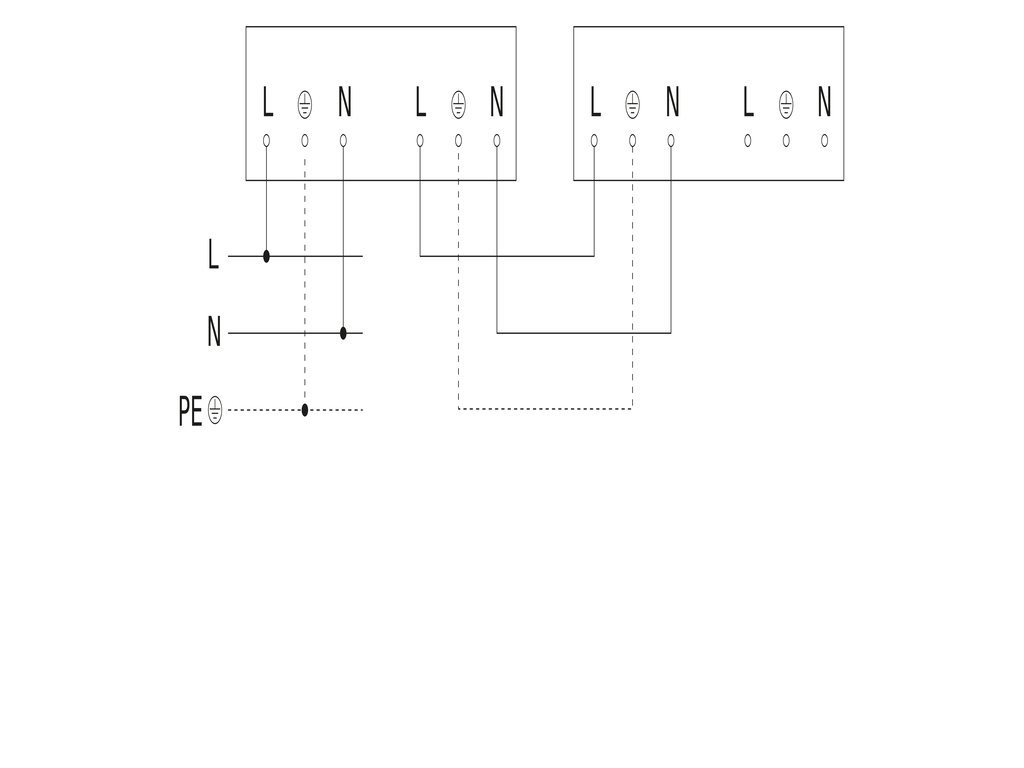

Wiring diagram 1

Master/slave interconnection circuit diagram
