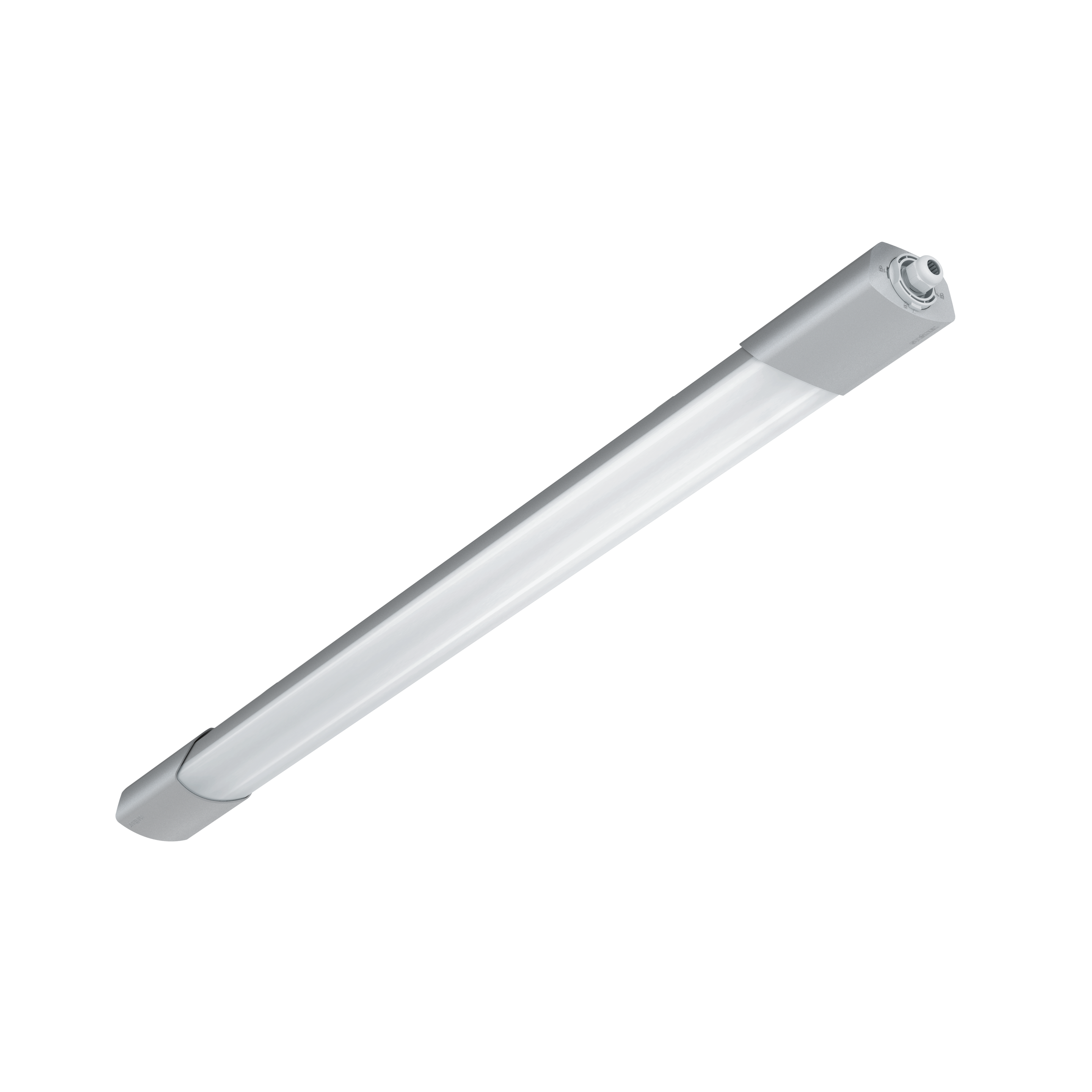

Nevalux RS PRO Connect 5100 LED Emergency light

Nevalux RS PRO Connect 5100 LED Emergency light

ELDAS® no. 941 000 069 · EAN-No. 4007841 058708

Technical data Illustrations Wiring diagrams Downloads
Nevalux Nevalux Connect

Nevalux RS PRO Connect 5100 LED Emergency light

ELDAS® no. 941 000 069

EAN-No. 4007841 058708

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Sensor-switched LED diffuser luminaire with emergency light. Complying with EN 60598-2-22, the emergency-light version is ideal for rugged applications (IP66, IK07) and all spaces still fitted with old diffuser luminaires. Simply use the same wiring, attach to existing drill holes and interconnect and configure the new installation by Bluetooth via app.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 10 - 50 %
  • Optional main light level 50 - 100%
  • Adjustable mounts for easy installation
  • Emergency light module in compliance with EN 60598-2-22

Dimensions

Dimensions L × W × H 58 x 1370 x 87 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 32 W
Own consumption 0,41 W

Sensor technology

Max. mounting height 3,50 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)
Tangential range Ø 10 m (79 m²)
Mounting height 2,00 – 3,5 m
Optimal mounting height 3 m

Connectivity

Networking Yes
Networking via Bluetooth

Lighting technology

Measured luminous flux 360° 4206 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Continuous light selectable
Luminous flux emergency light 687 lm

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 60 min
Base light function Yes
Base light function time 10-30 min, all night
Main light adjustable 50 - 100 %
Functions Group parameterisation\nManual ON / ON-OFF\nMaster/slave override\nNeighbouring group function\nPresence function\nEmergency light in compliance with EN 60598-2-22 for 3h
Settings via Bluetooth
With remote control Yes
Twilight setting teach Yes
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK07
Protection class (IP) IP66
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Application room Indoors WC / washroom changing room corridor / aisle function room / ancillary room kitchenette outdoors stairwell
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram
