Nevalux RS PRO Connect 5100 LED Slave

Nevalux RS PRO Connect 5100 LED Slave

ELDAS® no. 941 000 049 · EAN-No. 4007841 052904

Technical data Illustrations Wiring diagrams Downloads
Nevalux

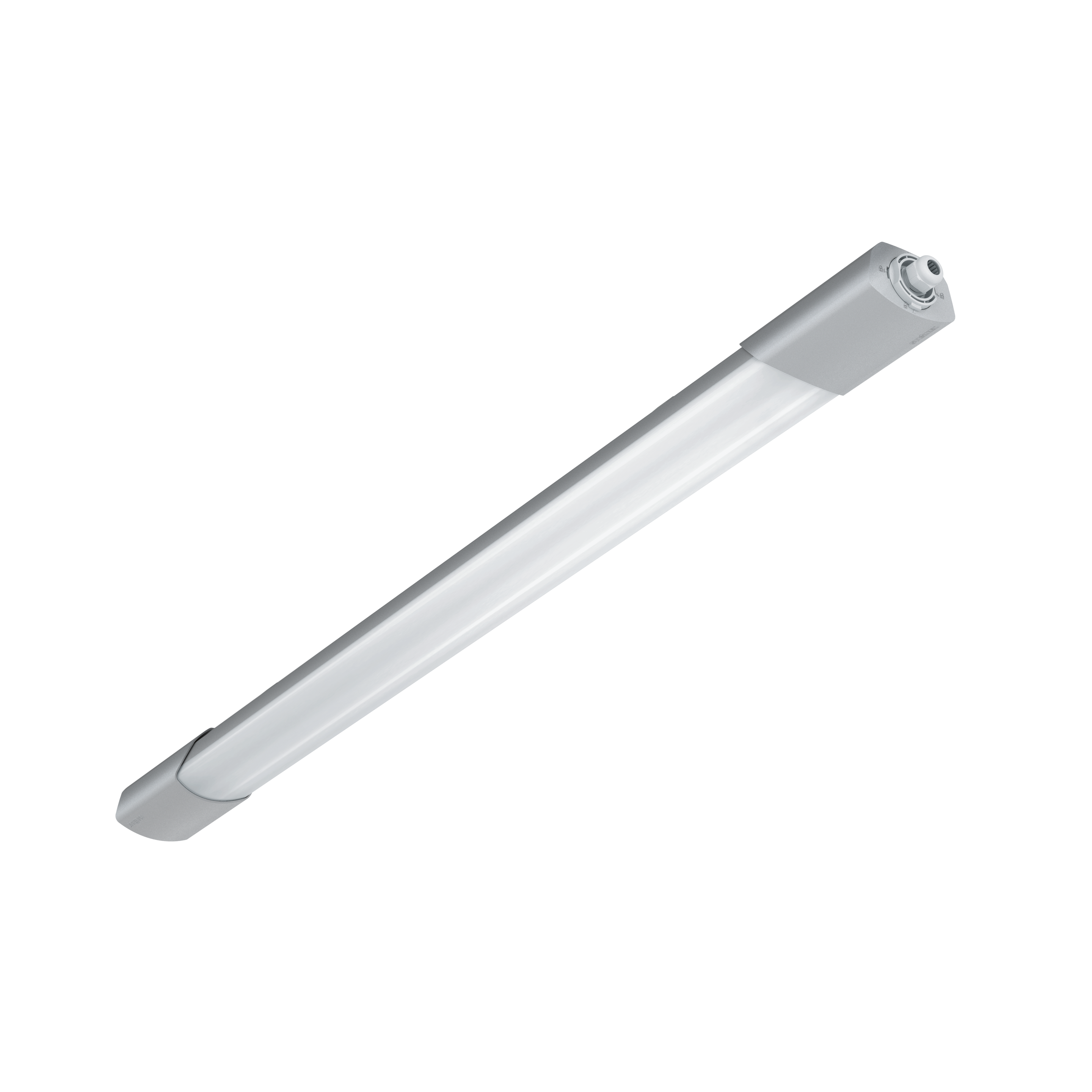

Nevalux RS PRO Connect 5100 LED Slave

ELDAS® no. 941 000 049

EAN-No. 4007841 052904

This product is being replaced by a successor product.

Go to successor product · RS PRO 5100 SC with motion detector & Bluetooth (078881)

LED diffuser luminaire as slave version. Without sensor. Bluetooth takes the effort out of interconnecting luminaires and setting their parameters. Energy-efficient lighting with 4206 lm luminous flux from 30 W. Colour temperature: 4000 K. Sturdy, highly practical and easily installed. For multi-storey car parks, basements, industrial and sports buildings, garages, corridors etc.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Optional basic lighting level 10 - 50 %
  • Optional main light level 50 - 100%
  • Adjustable mounts for easy installation

Dimensions

Dimensions L × W × H 58 x 1370 x 87 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 30 W
Own consumption 0,4 W

Sensor technology

With motion detector No
Electronic scalability Yes

Lighting technology

Measured luminous flux 360° 4206 lm
Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No
Continuous light selectable

Lifetime

LED lifetime max. °C 60000 h
Luminous flux decline per LM80 L80B10

Settings

Twilight switch No
Base light function Yes
Base light function time 10-30 min, all night
Main light adjustable 50 - 100 %
Settings via Bluetooth
With remote control No
Twilight setting teach No
Base light function in percent 10 – 50 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP66
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location ceiling wall
Application location Indoors
Mounting type Surface wiring
Application room Indoors WC / washroom changing room corridor / aisle function room / ancillary room kitchenette outdoors stairwell
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA

Technical drawing

Sensor detection range

Wiring diagram 1

Master/slave interconnection circuit diagram
