Nevalux RS PRO Connect R30 Q warm white

Nevalux RS PRO Connect R30 Q warm white

ELDAS® no. 941 301 499 · EAN-No. 4007841 057220

Technical data Illustrations Wiring diagrams Downloads Accessories
Nevalux

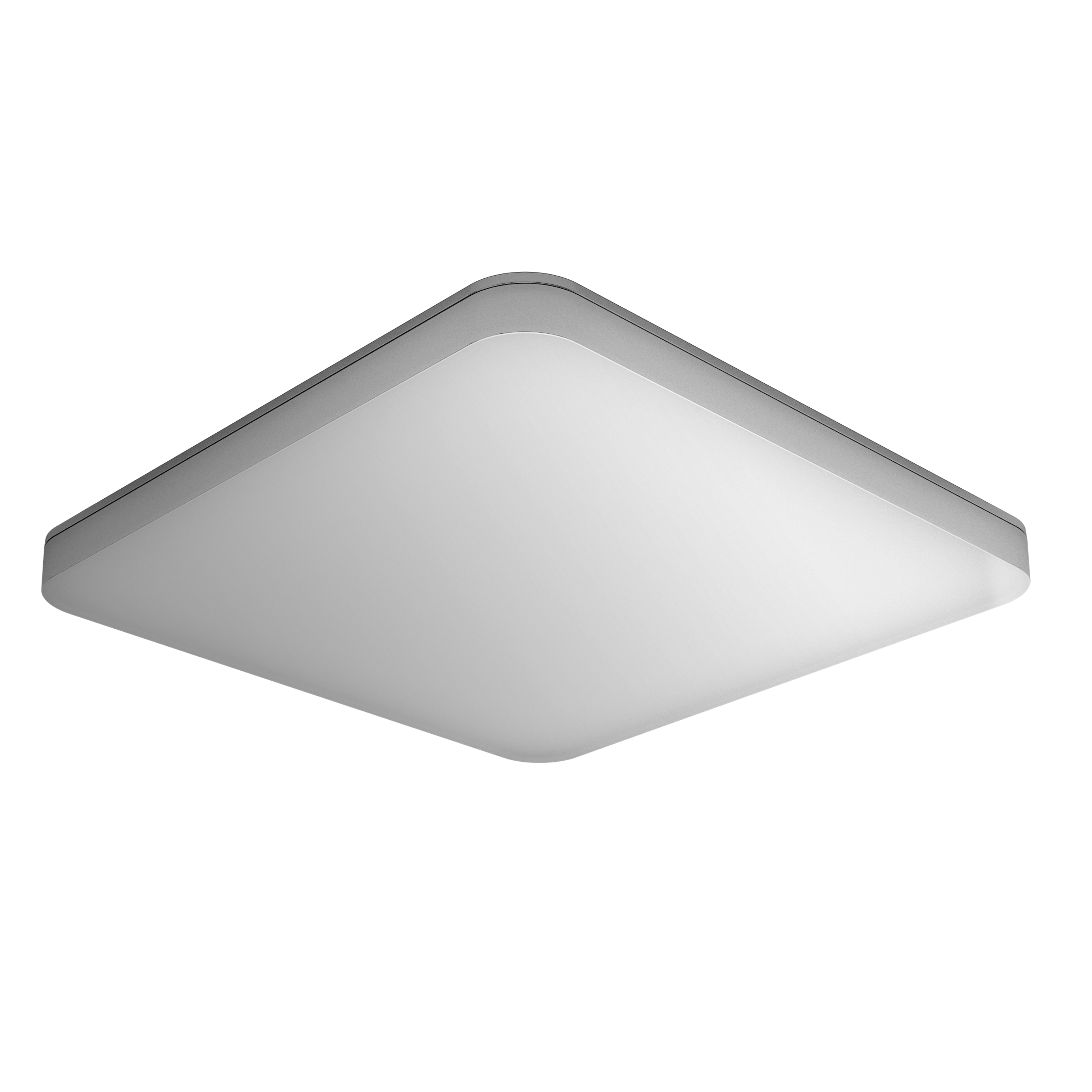

Nevalux RS PRO Connect R30 Q warm white

ELDAS® no. 941 301 499

EAN-No. 4007841 057220

This product is being replaced by a successor product.

Go to successor product · RS PRO R30 plus Q SC warm white (067786)

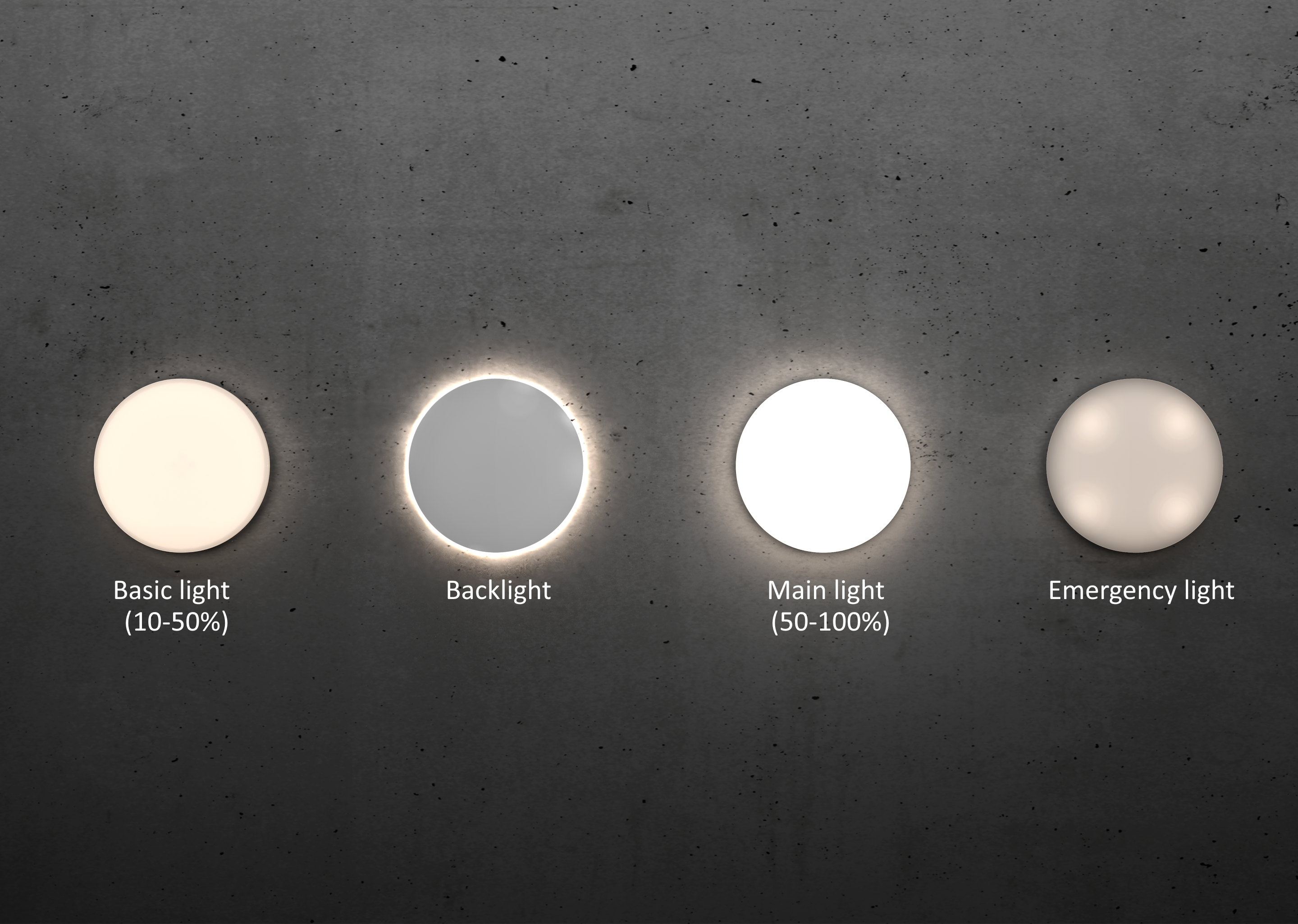

Square. Digital. Ingenious. Wirelessly adjustable via app, the digital RS PRO Connect R30 Q sensor-switched light makes connected lighting incredibly easy. Easily started up, interconnected and adjusted in any chosen way via app, it comes with 4 lighting functions: basic light level, backlight, dimmable main light and emergency light. 3070 lm. High-precision HF sensor (10 m reach). 3000 K, 350 x 350 x 55 mm.

  • Including STEINEL LED system
  • Interconnectable and adjustable via Bluetooth
  • Impact-resistant material rated to IK07
  • Backlight function
  • Optional basic lighting level 10 - 50 %
  • Optional main light level 50 - 100%
  • Optional emergency light

Identification

Variant warm white

Variants

Version Master
Luminous flux 3070 lm

Dimensions

Dimensions L × W × H 55 x 350 x 350 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 24,5 W
Own consumption 0,5 W

Sensor technology

Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)

Connectivity

Networking Yes
Type of networking Master/slave

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable
Luminous flux 3070 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L80B50
LED lifespan (25 °C) 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 30 min
Base light function Yes
Base light function detail LED Backlight
Base light function time 10-30 min, all night
Functions Group parameterisation, Manual ON / ON-OFF, Master/slave override, Neighbouring-group function, Presence function, Backlight
Settings via Bluetooth
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP40
Protection class II
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material PC, opal

Scope of delivery & warranty

Manufacturer warranty 5 years

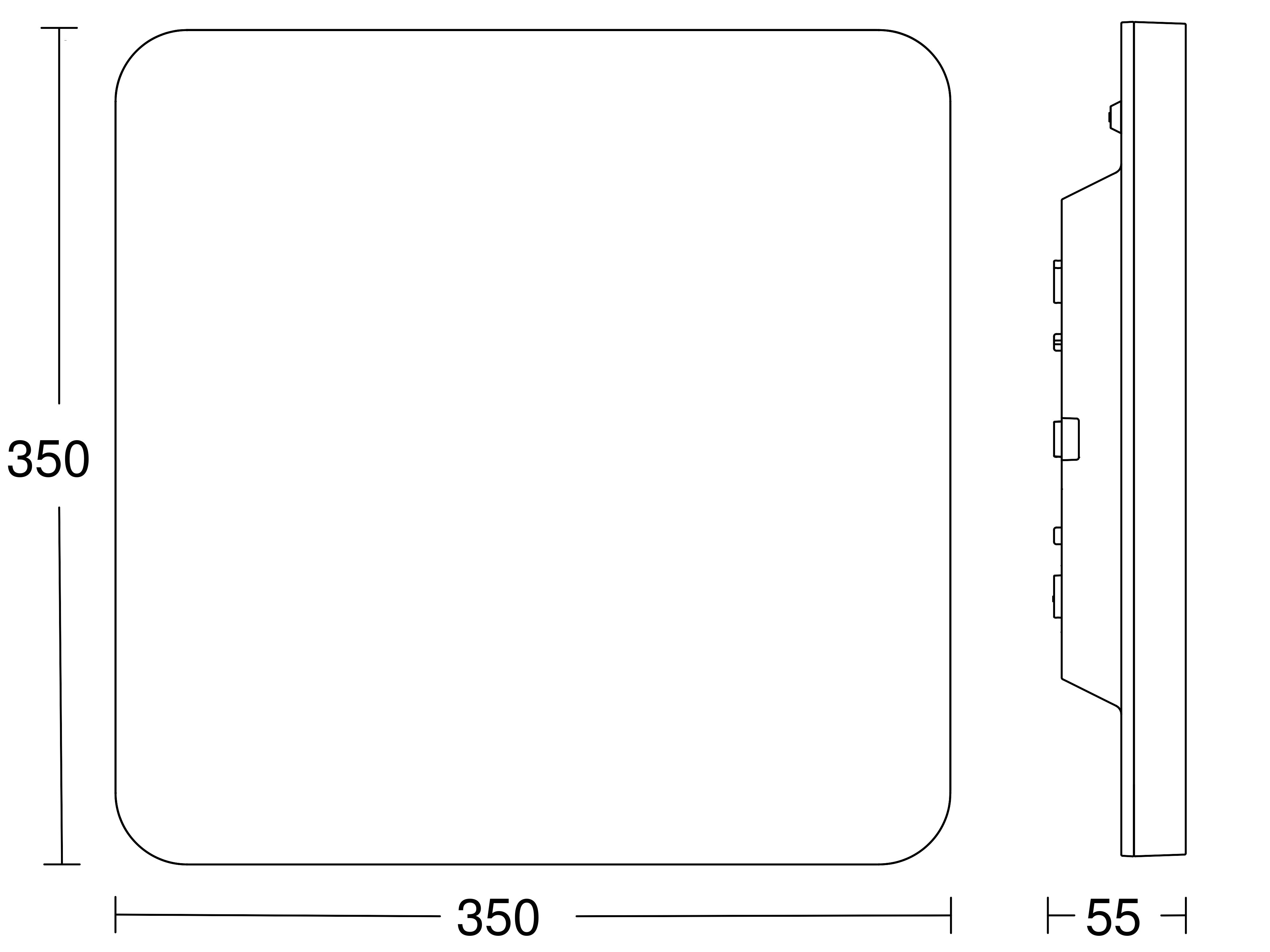

Technical drawing

Sensor detection range

Wiring diagram 1

Slave/wireless master interconnection circuit diagram

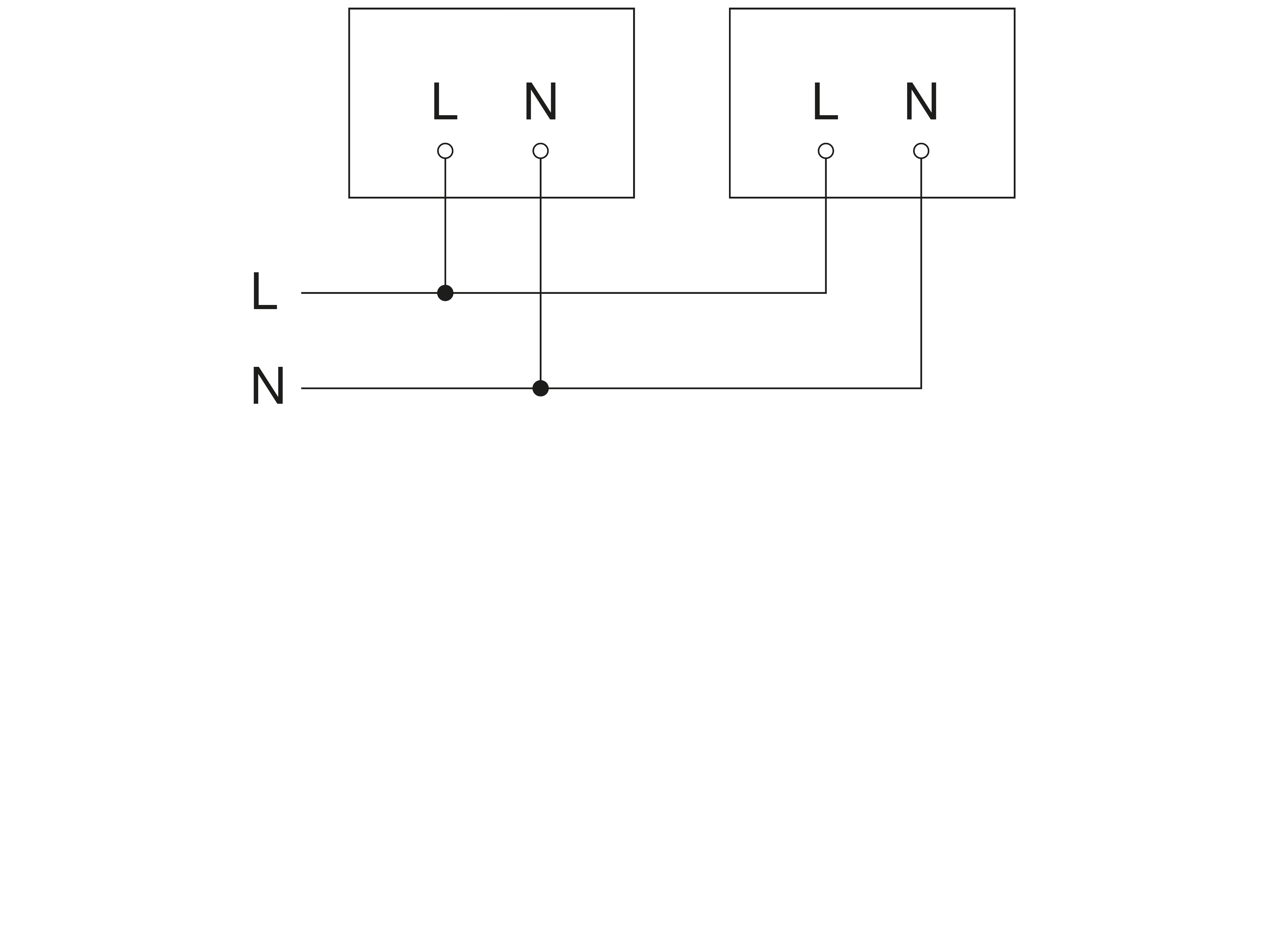

Wiring diagram 2

Master/master interconnection circuit diagram

R-series emergency light module

R-series emergency light module

Item no. 064143
