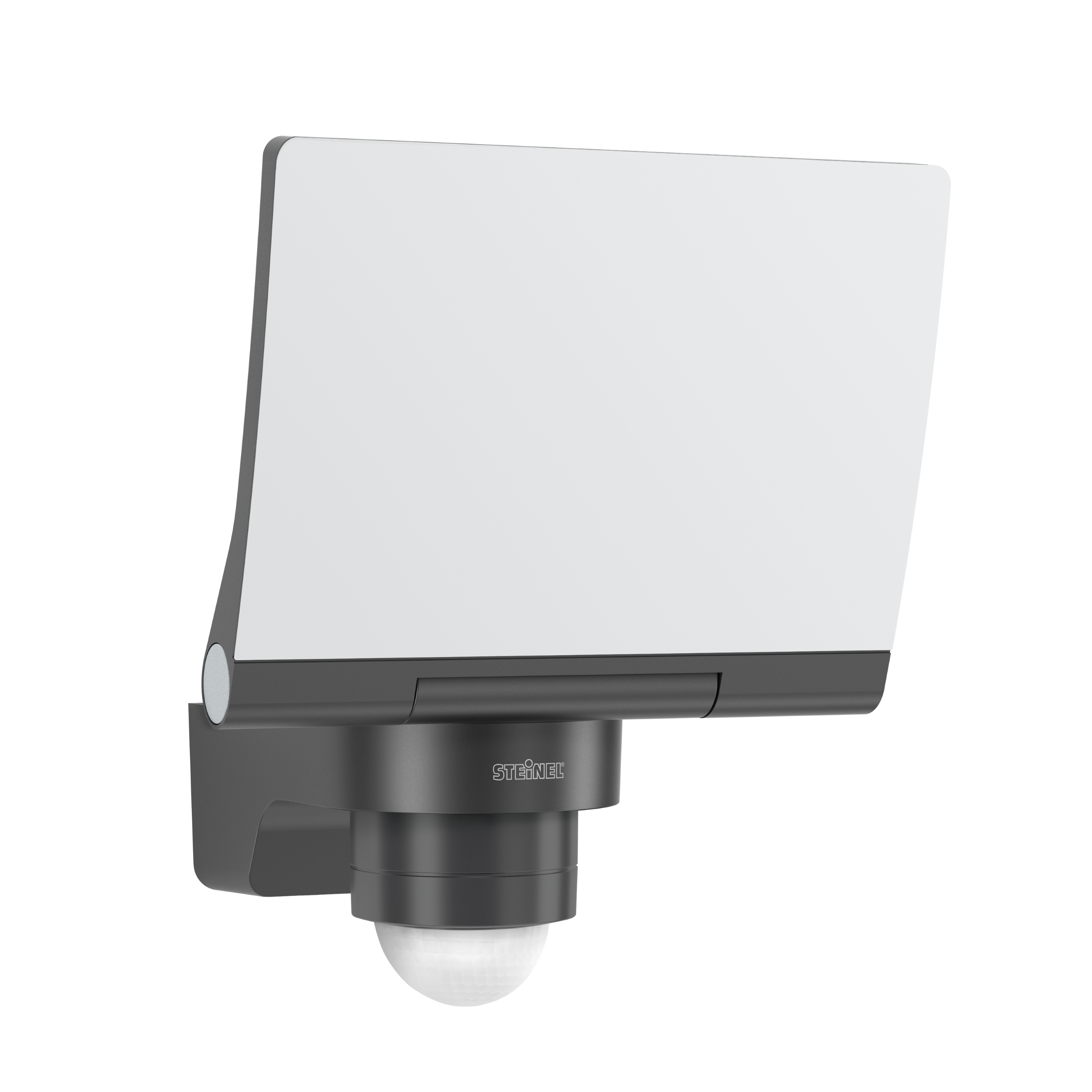

Nevalux XLED PRO 240 Anthracite
ELDAS® no. 924 702 412
EAN-No. 4007841 057695
This product is being replaced by a successor product.
Go to successor product · XLED PRO 240 S warm white anthracite (068066)Day-bright illumination throughout: the XLED PRO 240 sensor-switched outdoor floodlight. With fully swivelling LED flat panel and opal diffuser. 1830 lumens, 4000 K, 20 W. With a 240° infrared sensor for reliable motion detection over a reach of up to 12 m. Includes corner wall mount.
- Including STEINEL LED system
- HCMC cooling system
- UV-resistant plastic
- Colour rendering index Ra =80
- Including corner wall mount
Identification
Variant
Anthracite
Variants
Luminous flux
1830 lm
Dimensions
Dimensions L × W × H
221 x 180 x 161 mm
Electrical
Mains connection
230 – 240 V
Power
20 W
Sensor technology
Max. mounting height
6,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
240 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Tangential range
r = 12 m (302 m²)
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Luminous flux
1830 lm
Lifetime
LED lifetime max. °C
60000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Housing & material
Impact resistance
IK00
Protection class (IP)
IP44
Protection class
II
Housing material
Plastic
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
Yes
