nevalux anele C595

nevalux anele C595

Product code 221636

Technical data Illustrations Wiring diagrams Downloads Accessories
nevalux

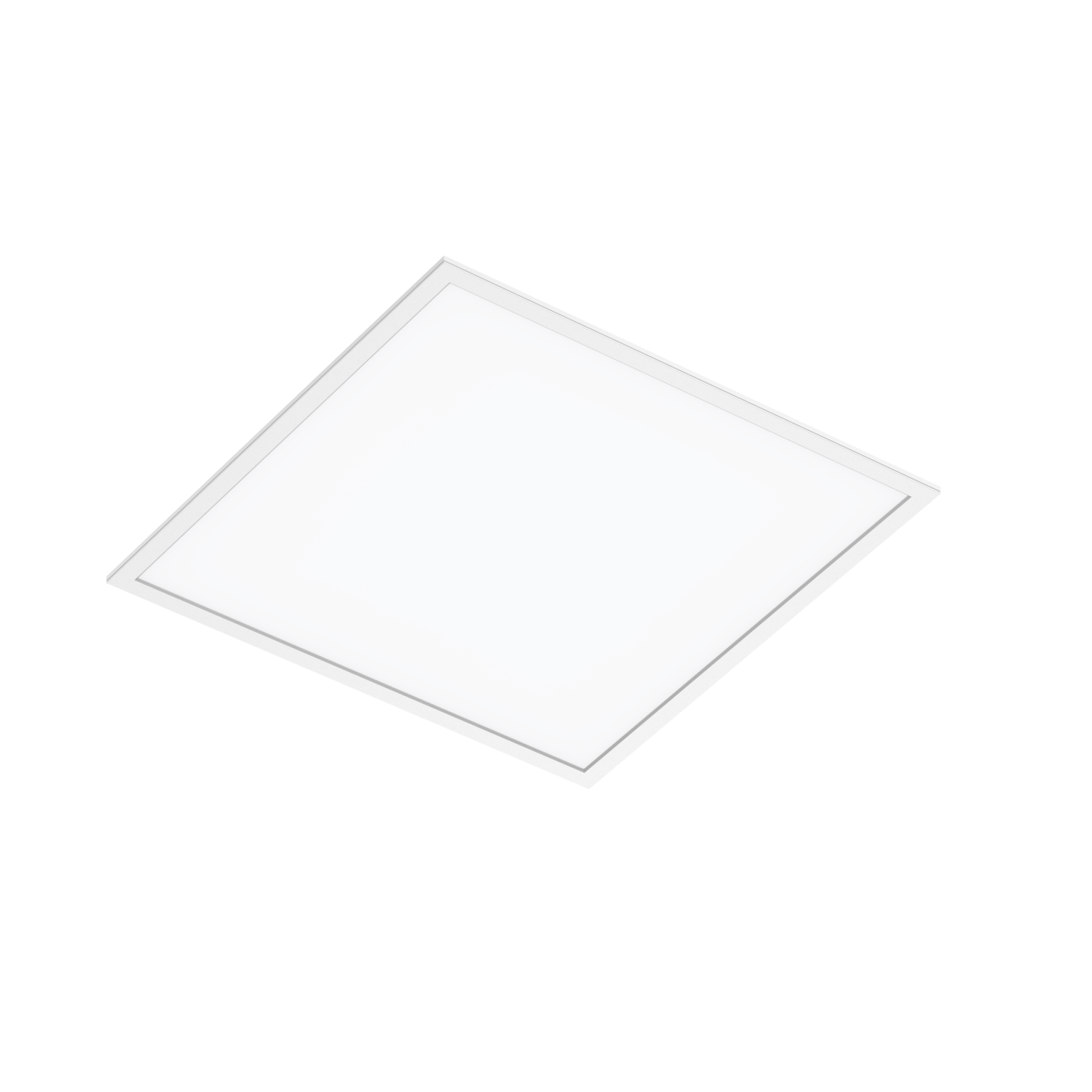

nevalux anele C595

Recessed panel for offices and schools. Ultra-slim, low glare, with presence sensor.

Product code 221636

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Dimensions L × W × H

595 x 595 x 8.5 mm (Einbautiefe: 40 mm) 620 x 620 x 8.5 mm (Einbautiefe: 40 mm)

Control technology

Dali-Leuchte Smartlink Connect
  • For universal use for lighting offices, schools, traffic zones, etc.
  • Available as intelligent Connect version or as conventional DALI luminaire
  • Connect variant with motion detector and powerful IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
  • Microprismatic diffuser for best possible glare control
  • Variants available with 595 and 620 mm length
  • Surface-mounted housing and installation springs for suspended ceilings available as accessories
  • Housing Aluminium RAL9016, white

Variants

Version 595 mm
Luminous flux 3960 lm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 33 W
Replaceable driver Yes
Type of wiring Suitable for through wiring

Sensor technology

With motion detector No
With light sensor No

Connectivity

Networking via DALI 2

Lighting technology

Colour temperature 4000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
Illuminant LED
Luminous flux 3960 lm
Beam angle 90°
Luminaire luminous efficacy 120 lm/W
Glare value UGR < 19

Lifetime

LED lifespan (25 °C) 50000 h

Settings

DALI dimming Yes
With emergency light No
Suitable for light band configuration No

Housing & material

Protection class (IP) IP20
Protection class I
Ambient temperature -20...+45 °C
Housing material Aluminium
Cover material Microprismatic acrylic glass
Mounting type Recessed ceiling
Colour White

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

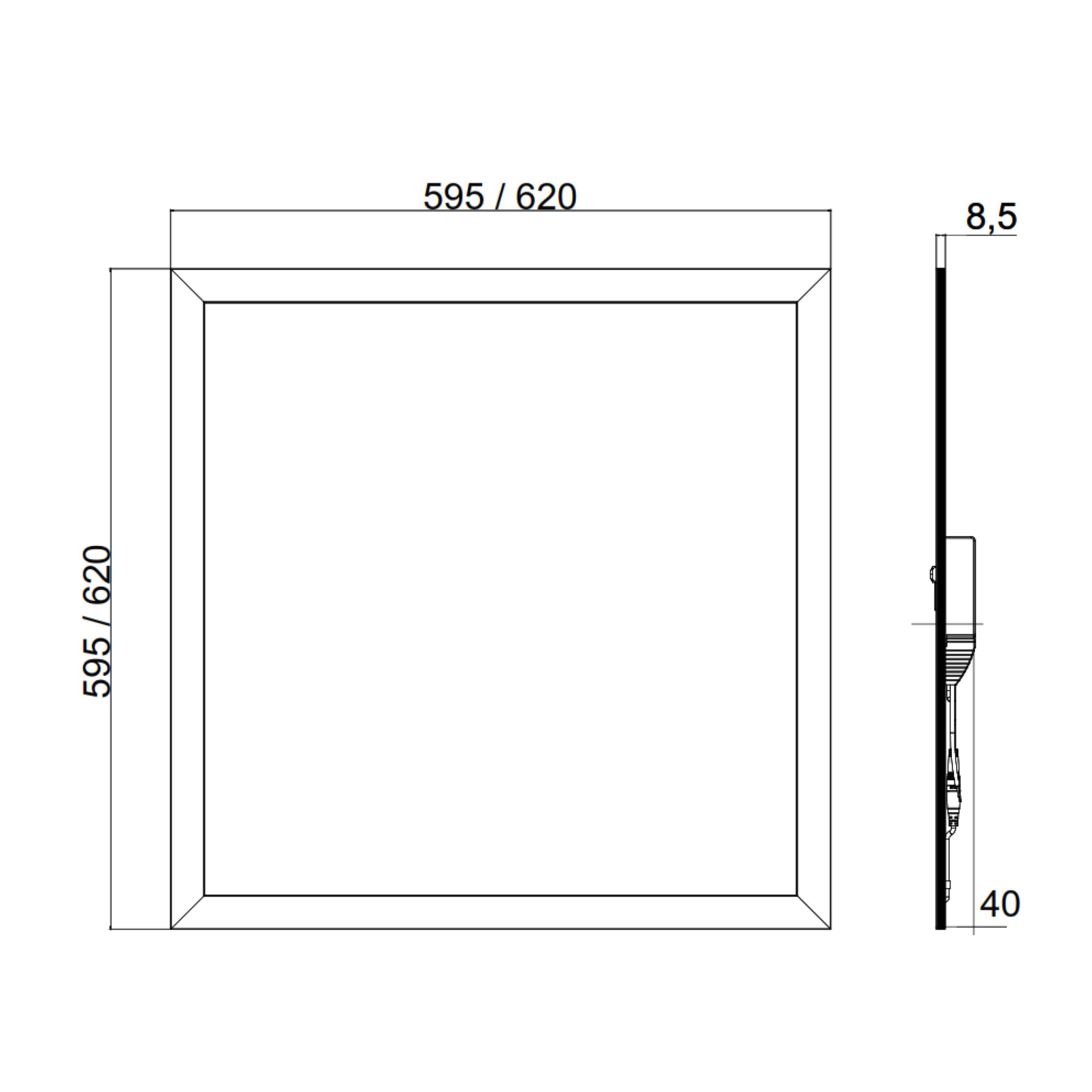

Technical drawing

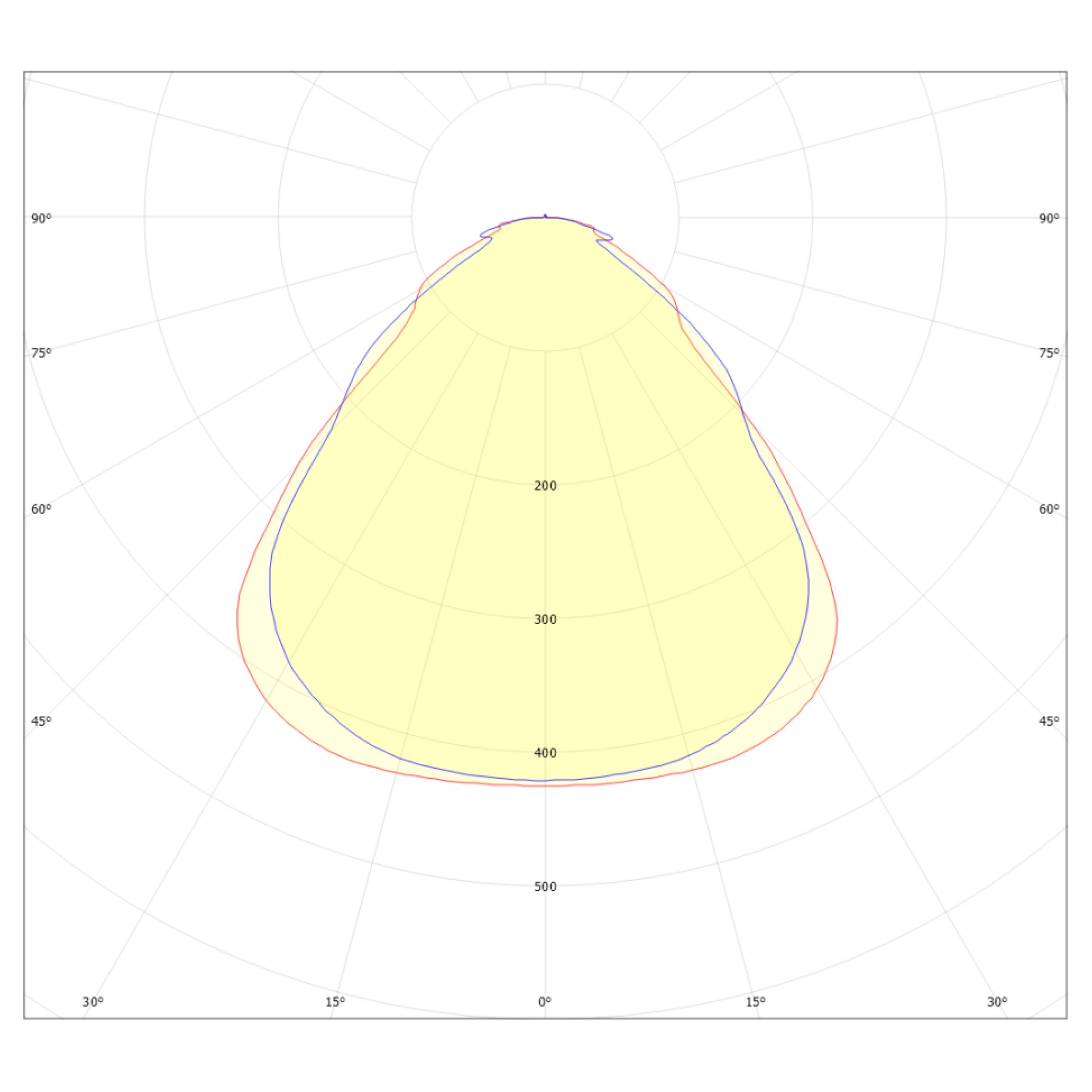

Lichtverteilungskurve

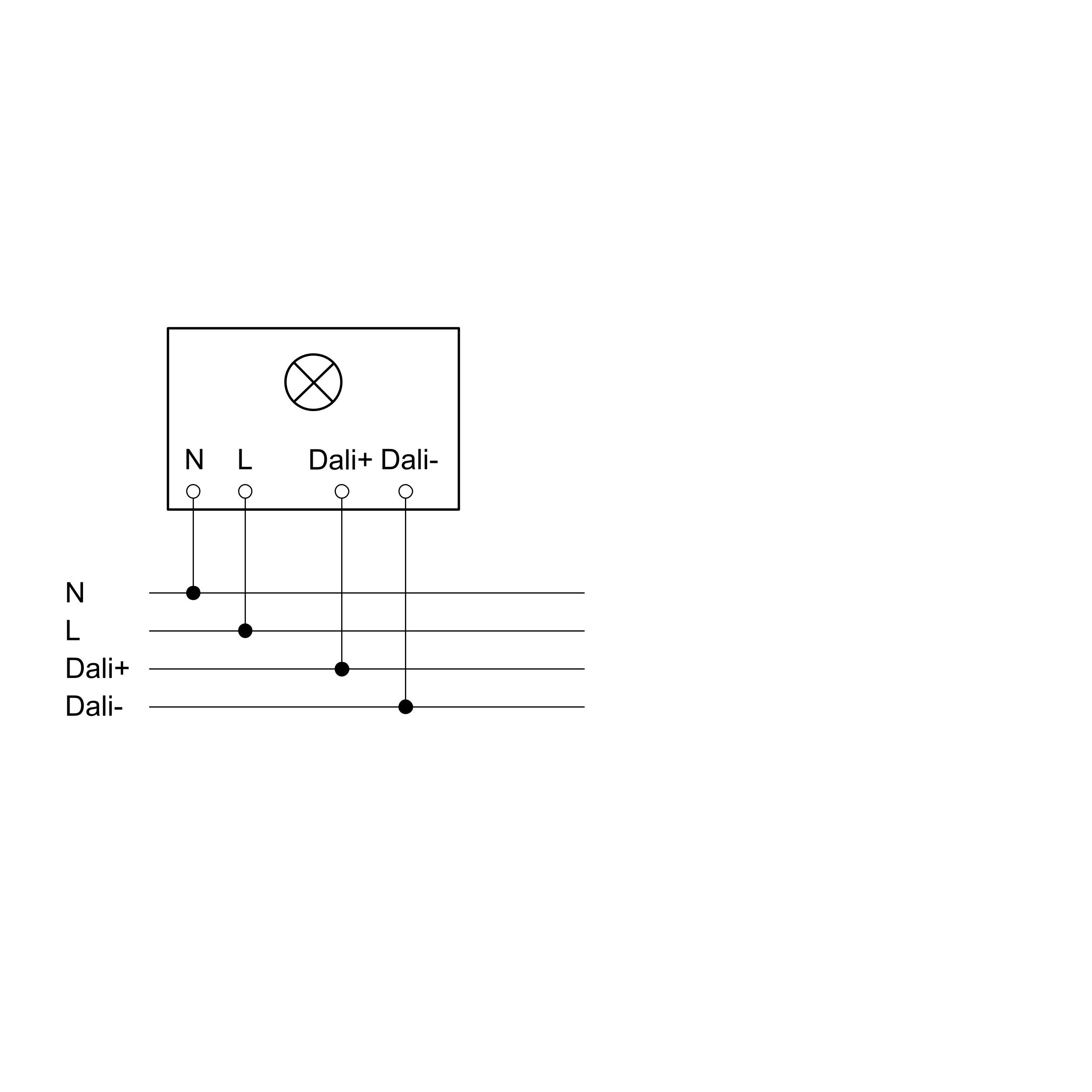

Wiring diagram 1

Wiring diagram

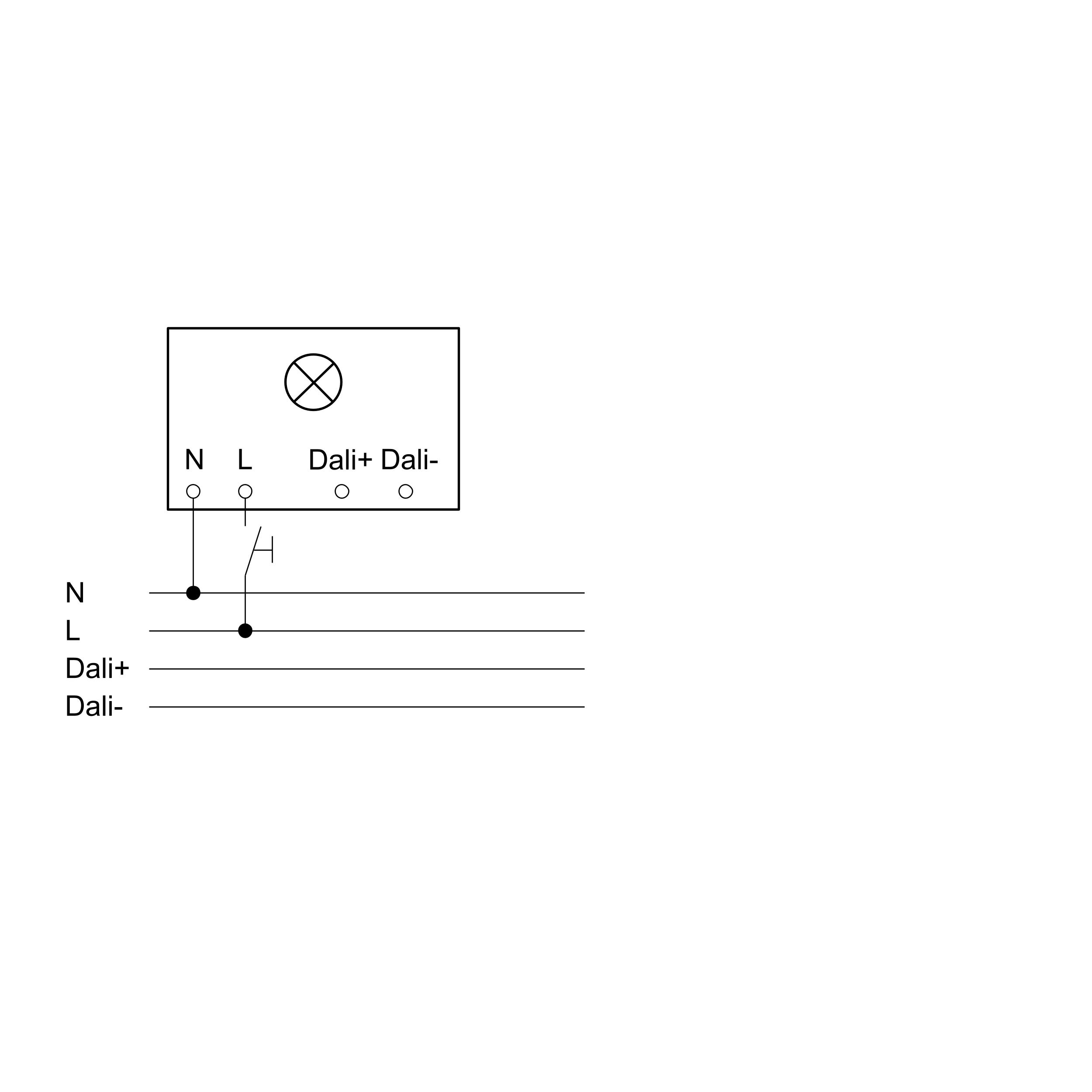

Wiring diagram 2

Wiring diagram
