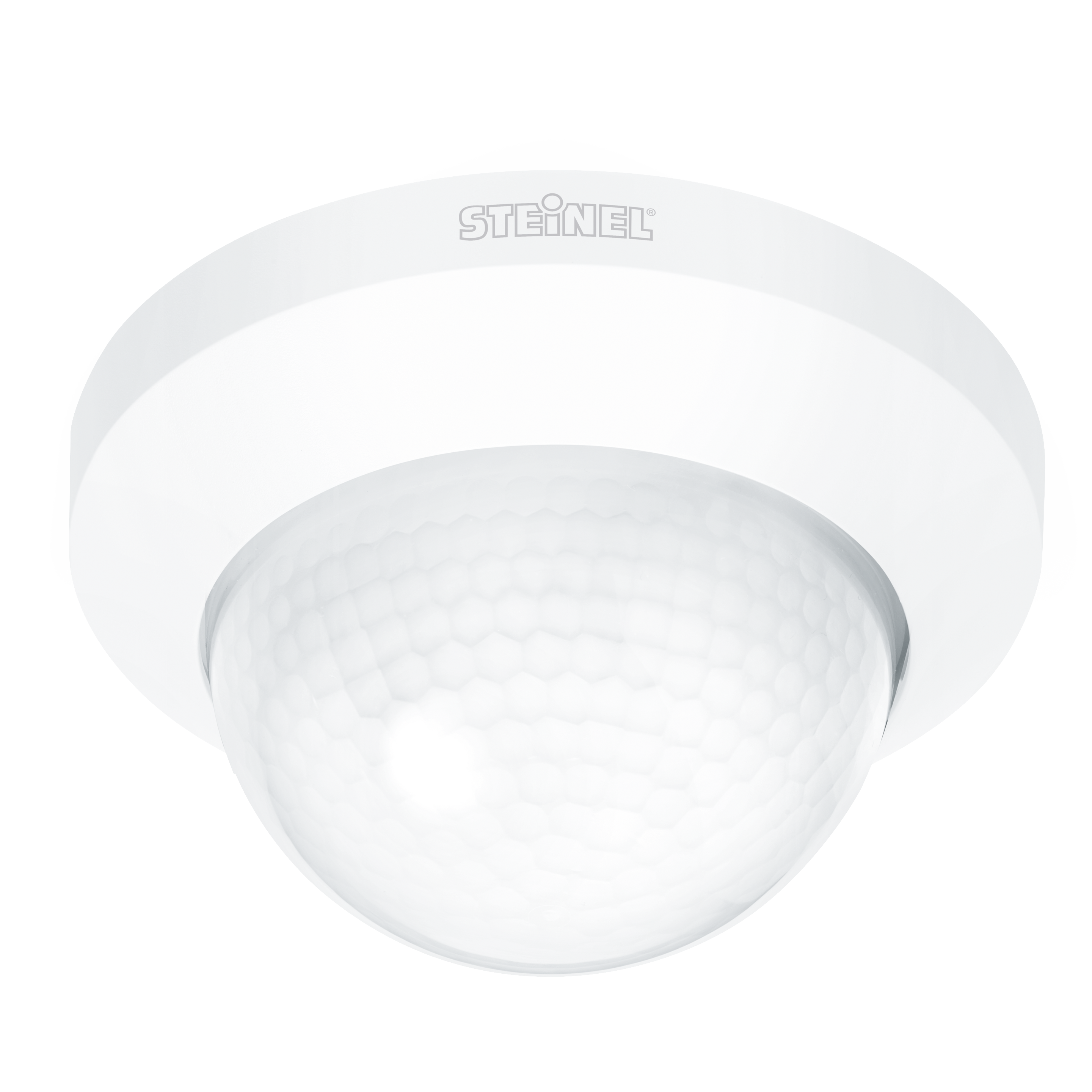

Our classic one. BLS infrared human presence detectors for indoors, ideal for offices, store, service and utility rooms, washrooms and WCs, for mounting up a height of 3 m, three parallel-connected pyro sensors for a detection reach of up to 12 m in either direction.
- Multi-lens
- Shrouds
Identification
Version
Presence detector
Dimensions
Dimensions L × W × H
120 x 120 x 66 mm
Electrical
Mains connection
230 – 240 V , 50 / 50 Hz
Switching output 1 resistive
2000 W
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Tangential range
Ø 24 m (452 m²)
Switching zones
1320 switching zones
Mounting height
2,50 – 3,00 m
Presence range
Ø 4 m (13 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
20 – 1300 lx
Time setting
280 sec – 30 min
Base light function
No
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
