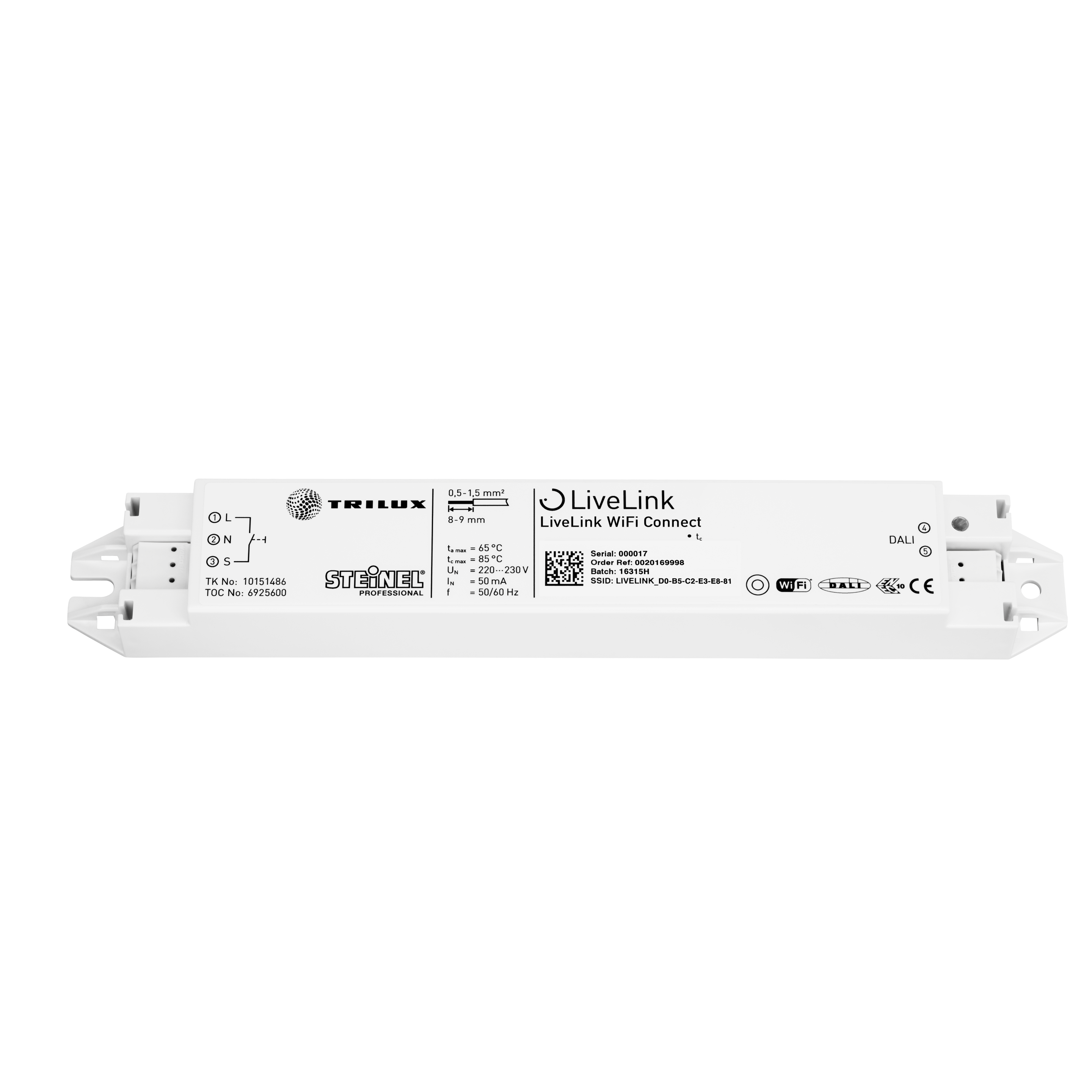

The heart of the light management system. LiveLink Wi-Fi Connect control device for interconnecting several LiveLink Control Boxes in the master-slave network, with a compact installed depth of only 21 mm, universal DALI interface for controlling and supplying up to 16 light groups and 64 individual components, direct connection for 1 switch, control via tablet, smartphone or switch, security from autonomously encrypted Wi-Fi network, configuration saved even in the event of a power cut.
- The heart of the light management system. LiveLink Wi-Fi Connect control device for interconnecting several LiveLink Control Boxes in the master-slave network, with a compact installed depth of only 21 mm, universal DALI interface for controlling and supplying up to 16 light groups and 64 individual components, direct connection for 1 switch, control via tablet, smartphone or switch, security from autonomously encrypted Wi-Fi network, configuration saved even in the event of a power cut.
Identification
Version
Lighting control set
Dimensions
Dimensions L × W × H
21 x 204 x 30 mm
Electrical
Mains connection
220 – 230 V / 50 – 60 Hz
Supply voltage detail
max. 64 users\nDALI bus
Connectivity
Networking
Yes
Type of networking
Master/master\nMaster/slave
Networking via
DALI bus\nWi-Fi
Networking quantity
max. 9 Connect controllers
Settings
Main light adjustable
0 - 100 %
Settings via
LiveLink app
Housing & material
Mounting type
Other
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
