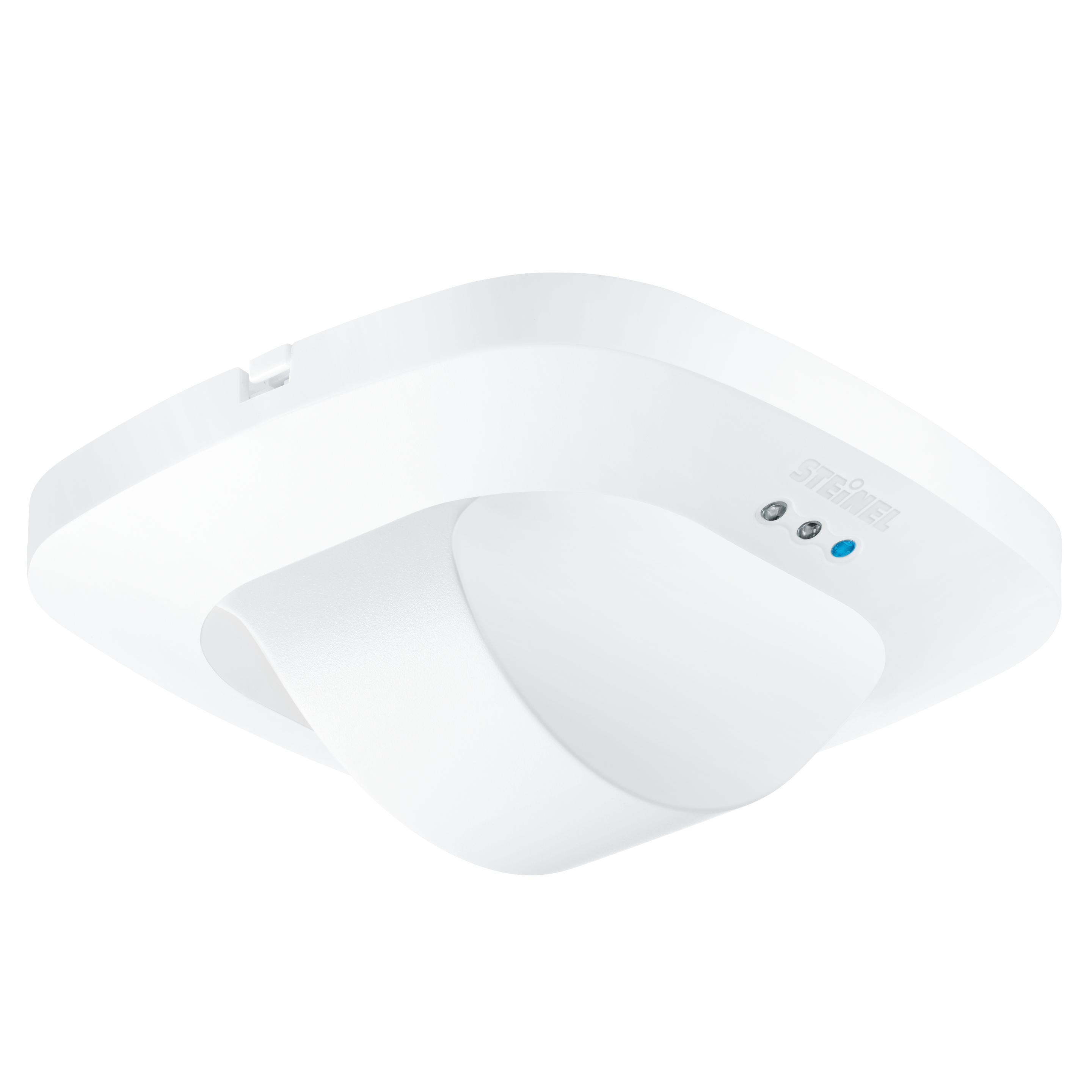

Nevalux Dual HF DIM
EAN-No. 4007841 002985
This product is being replaced by a successor product.
Go to successor product · Dual HF DALI-2 APC - concealed (4007841003005)Twice as vigilant! High-frequency corridor sensor Presence Control PRO Dual HF DIM for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, for controlling and switching light 'ON' and 'OFF', DUAL-HF technology for detecting radial movement over up to 20 m in two directions, detection regardless of temperature, HF-sensor technology detects movement through glass, wood and stud walls, switches light 'ON' almost instantly.
- Optional remote controls
- Optional surface-mounting adapter
- Optional guard cage
Identification
Variant
DIM
Version
Presence detector
Dimensions
Dimensions L × W × H
120 x 120 x 75 mm
Electrical
Mains connection
240 V, 50 / 60 Hz
Number of ECGs DIM interface
50
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
20 x 3 m (60 m²)
Tangential range
20 x 3 m (60 m²)
Mounting height
2,50 – 3,50 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
100 – 1000 lx
Time setting
30 sec – 30 min
Base light function
Yes
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
corridor, aisle
