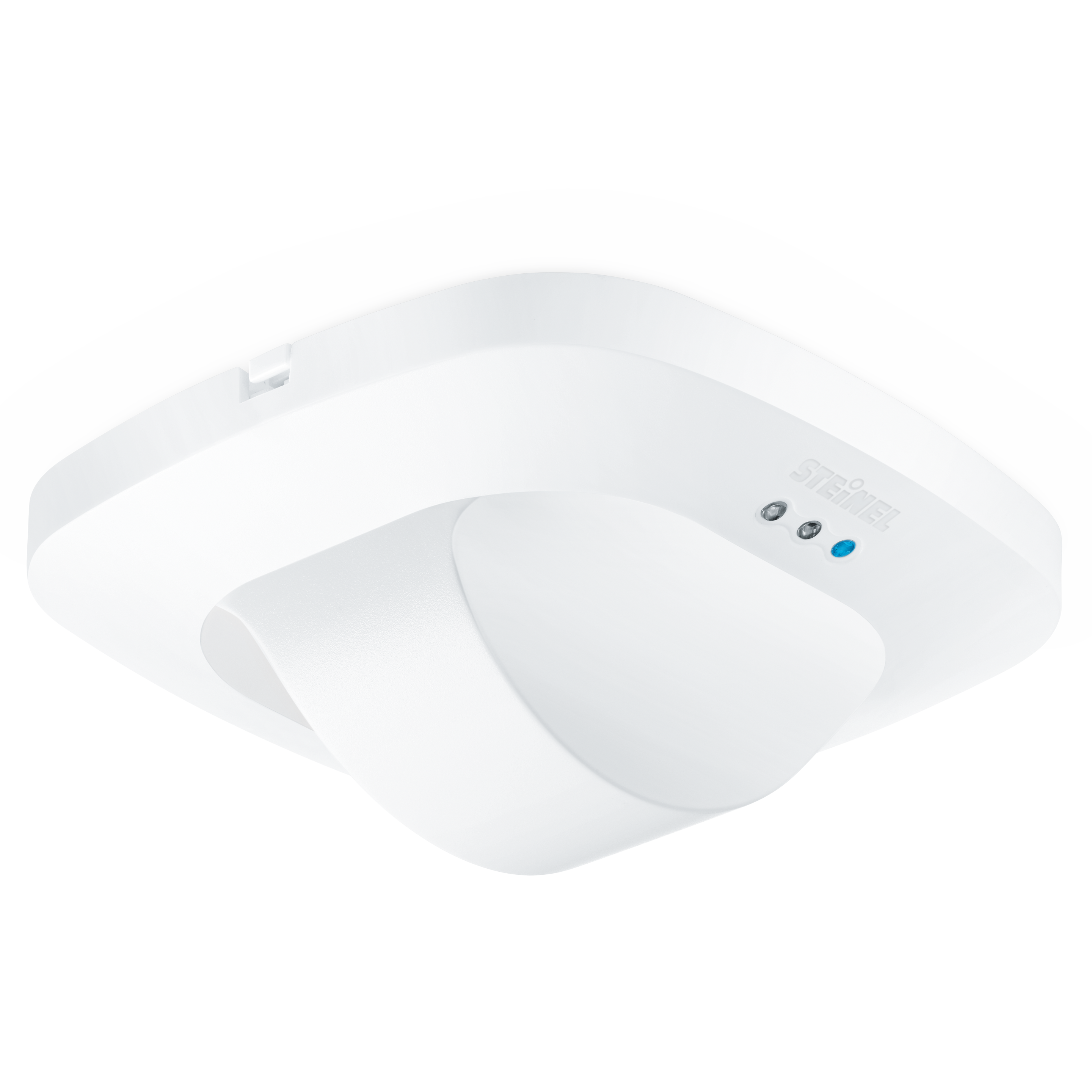

Nevalux Dual HF KNX

ELDAS® no. 535 930 508

EAN-No. 4007841 008802

This product is being replaced by a successor product.

Go to successor product · Dual HF KNX - Concealed wiring (059477)

Twice as vigilant! High-frequency corridor sensor Presence Control PRO Dual HF KNX for indoors, ideal for passageways and long corridors, installation height up to 3.5 m, with digital BUS interface for controlling 4 lighting channels and HVAC, DUAL-HF technology that senses movement in two directions for radial detection up to 20 m, detection regardless of temperature, HF-sensor technology also senses movement through glass, wood and stud walls, switches light 'ON' almost instantly.

Optional remote controls
Optional surface-mounting adapter (IP 54, KNX)
Optional guard cage

Identification

Variant KNX

Version Presence detector

Model KNX

Dimensions

Dimensions L × W × H 75 x 120 x 120 mm

Electrical

Mains connection 230 V, 50 / 60 Hz

Supply voltage detail KNX bus

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

KNX functions Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output

With bus coupler Yes

Lighting technology

Constant light regulation No

Settings

Twilight setting 10 – 1000 lx

Time setting 0 – 255 min

Base light function No

Base light function time Permanently ON, 1-255 min, all night

Settings via ETS software, Remote control, Bus

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Housing & material

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room corridor, aisle

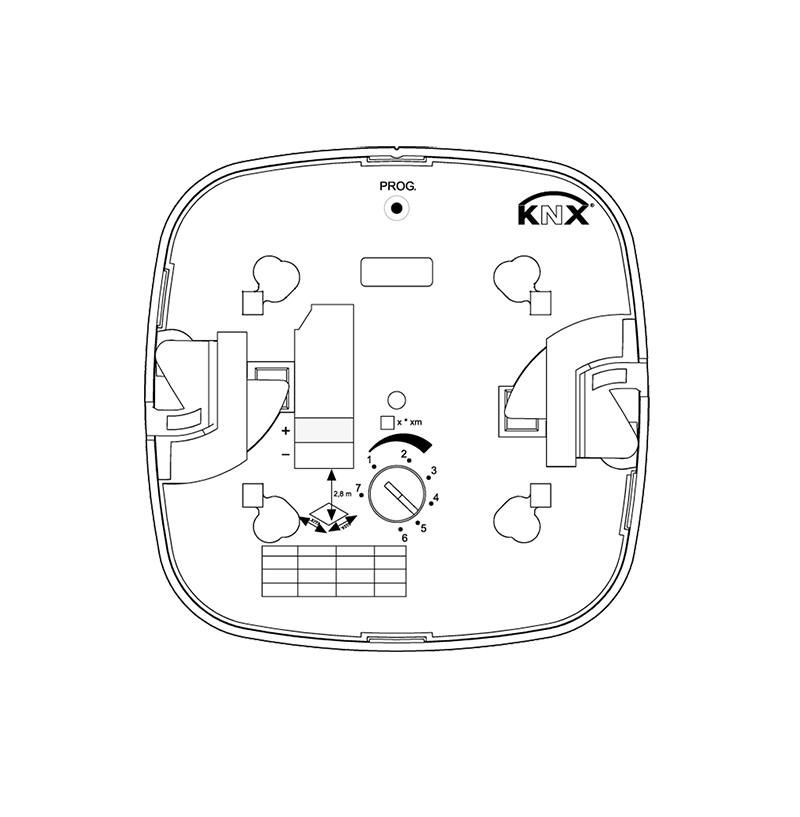

Sensor detection range

Data sheet User manual

Surface-mounting adapter Control PRO AP Box KNX

Item no. 4007841003029

Control PRO guard cage

Item no. 003036

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

HF-ceiling adapter

Item no. 006600
