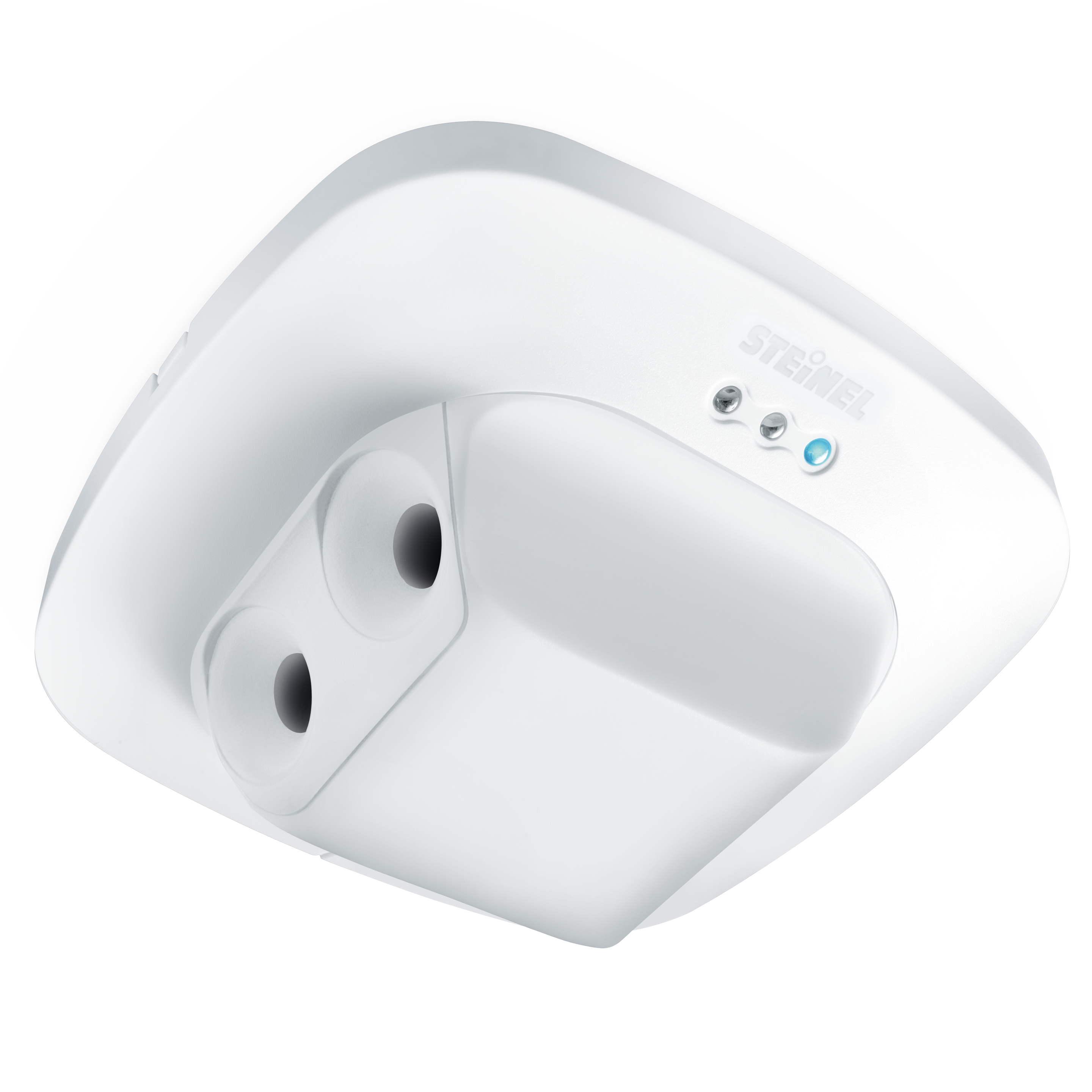

Nevalux Dual US KNX
EAN-No. 4007841 029470
This product is being replaced by a successor product.
Go to successor product · Dual US KNX - Concealed wiring (059491)Watches over the entire corridor. And can see around corners. DUAL US ultrasonic motion detector, ideal for corridors and passageways. Reliable detection within 20 m, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, with digital BUS interface for controlling 4 lighting channels and HVAC.
- Optional remote controls
- Optional surface-mounting adapter
- Optional guard cage
Identification
Variant
KNX
Version
Presence detector
Model
KNX
Dimensions
Dimensions L × W × H
73 x 120 x 120 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
Ultrasonic
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
20 x 3 m (60 m²)
Tangential range
20 x 3 m (60 m²)
Mounting height
2,50 – 3,50 m
US technology
40 kHz
Optimal mounting height
2,8 m
Connectivity
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output
With bus coupler
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
60 sec – 255 min
Settings via
ETS software, Remote control, Bus
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
corridor, aisle
