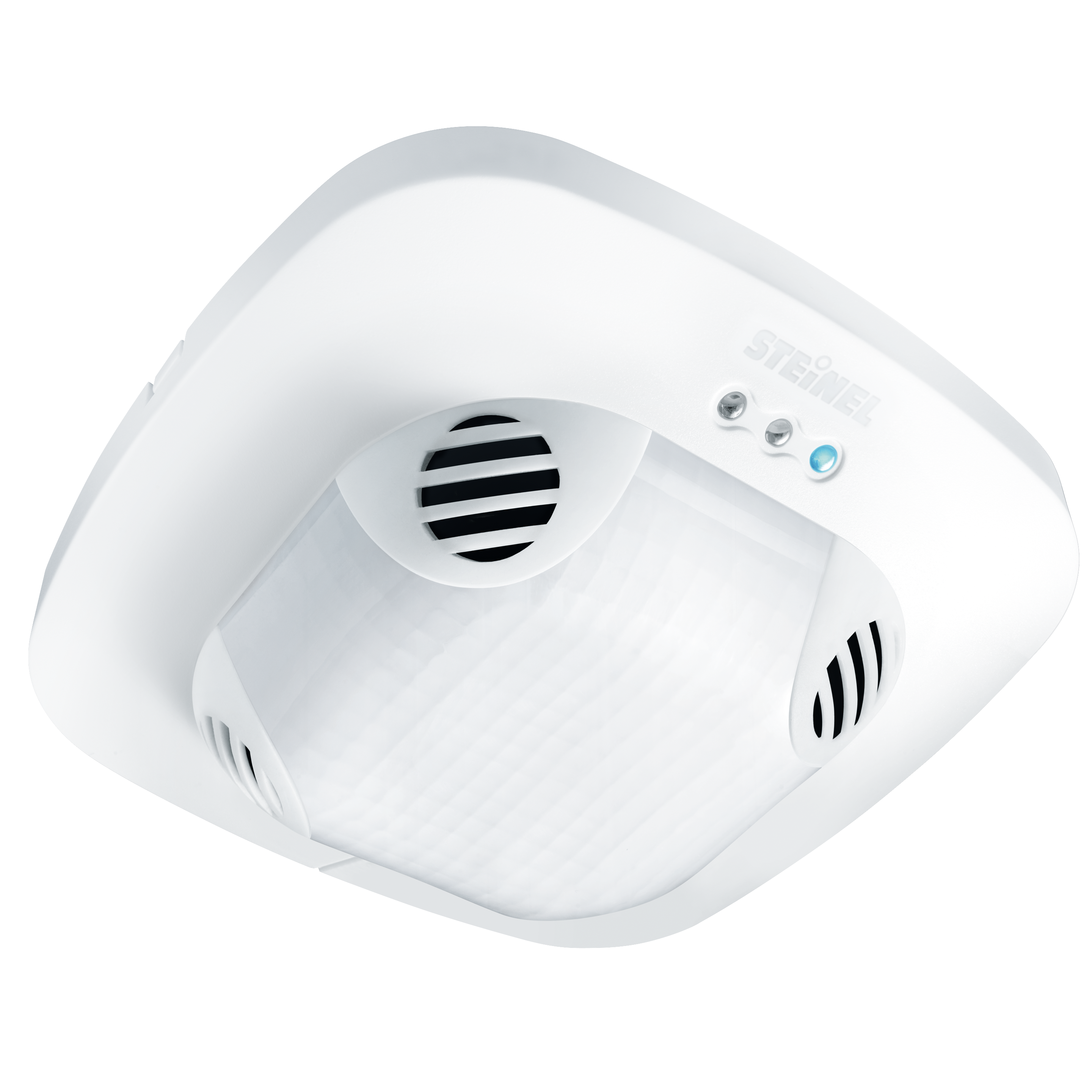

Nevalux DualTech DIM

ELDAS® no. 535 931 410

EAN-No. 4007841 008017

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The best of both worlds. Combined in one detector. Ultrasonic presence detector DualTech, ideal for offices, conference rooms and class rooms. 36 sq.m. presence zone, ultrasonic technology provides reliable detection behind objects regardless of temperature, additional detection capability with PIR technology, electronic adjustment for ultrasonic reach, DIM for controlling and switching light ON and OFF.

Optional remote controls
Optional surface-mounting adapter
Optional guard cage

Identification

Variant DIM

Version Presence detector

Dimensions

Dimensions L × W × H 120 x 120 x 68 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Number of ECGs DIM interface 50

Sensor technology

Sensor technology Ultrasonic

Detection angle 360 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ultrasonic: Ø 10 m (79 m²)

Tangential range Ultrasonic: Ø 10 m (79 m²)

Mounting height 2,50 – 3,50 m

Presence range Ultrasonic: Ø 6 m (28 m²)

Sensor technology 2 passive infrared

Radial range 2 passive infrared: Ø 4 m (13 m²)

Tangential range 2 passive infrared: Ø 8 m (50 m²)

Presence range 2 passive infrared: Ø 4 m (13 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave, Master/master

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 100 – 1000 lx

Time setting 30 sec – 30 min

Base light function Yes

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room One-person office, classroom, Open-plan office

Data sheet User manual

User remote control RC5

Item no. 592806

Service remote control RC8

Item no. 559410

Remote control Smart Remote

Item no. 009151
