- Built-in, networkable light management for next generation lighting projects
- up to 70% energy savings compared to a conventional solution thanks to constant light control and presence detection

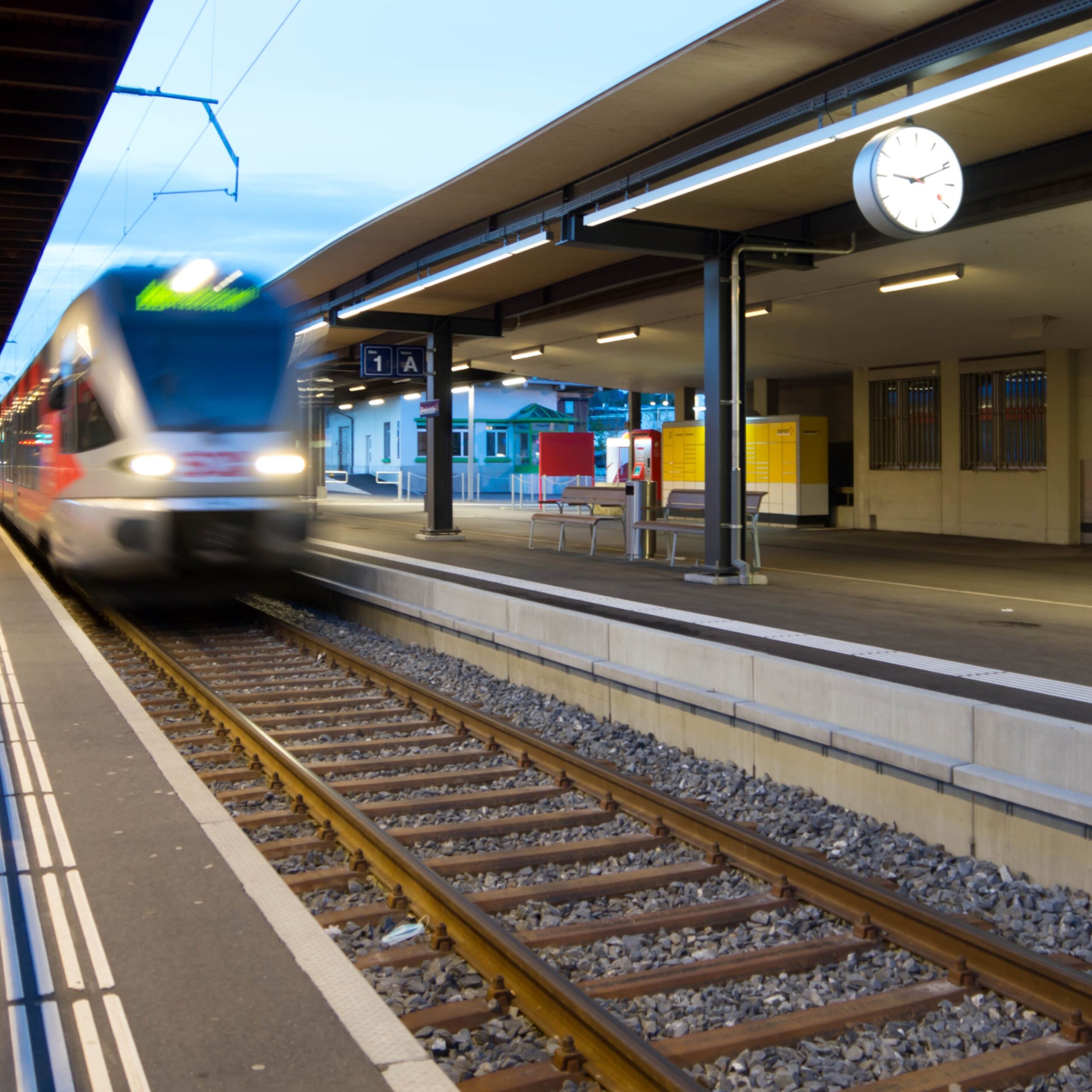

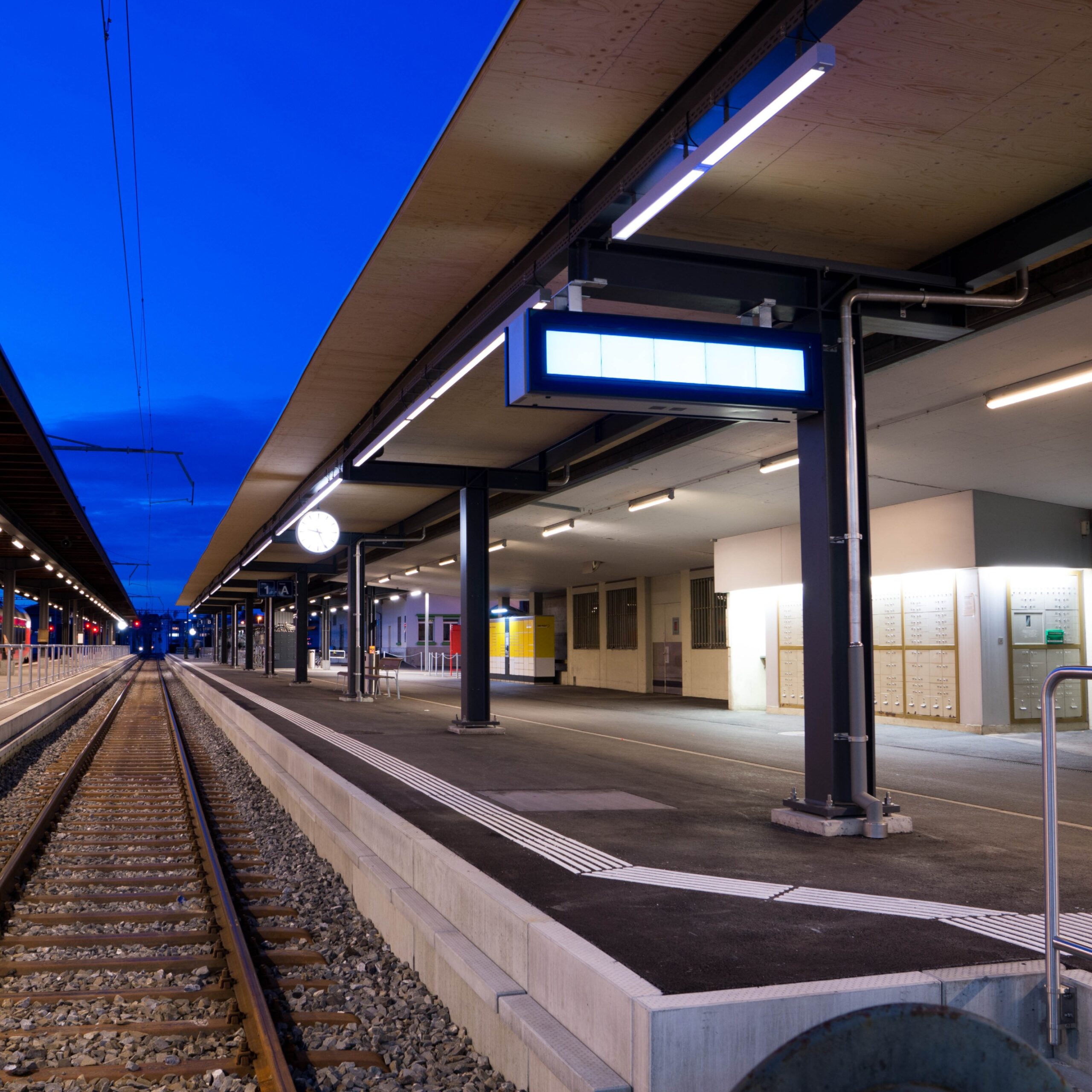

- For universal use for lighting railroad perrons, bike racks, garages etc.
- Through-wiring with accessories Surface-mounted trunking and Wieland RST16I5 plug system
- Variants with 1 and 3 meter length available
- Housing Anodised aluminium
- Swiss Made
Variants
Version
3000mm
Dimensions
Dimensions L × W × H
1000 x 80 x 85 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
78 W
Replaceable driver
Yes
Sensor technology
Sensor technology
Passiv Infrarot
With motion detector
Yes
Detection angle
360°
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Presence range
4 x 4 m (16 m²)
With light sensor
Yes
Connectivity
With radio network control
Yes
Lighting technology
Colour temperature
3000...5600 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP64
Protection class
II
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Acrylglas mikroprismatisch
Mounting type
Decke Aufputz
Colour
Aluminium
Scope of delivery & warranty
Manufacturer warranty
5 Jahre
Certificates & EPREL
EPREL energy efficiency class
G

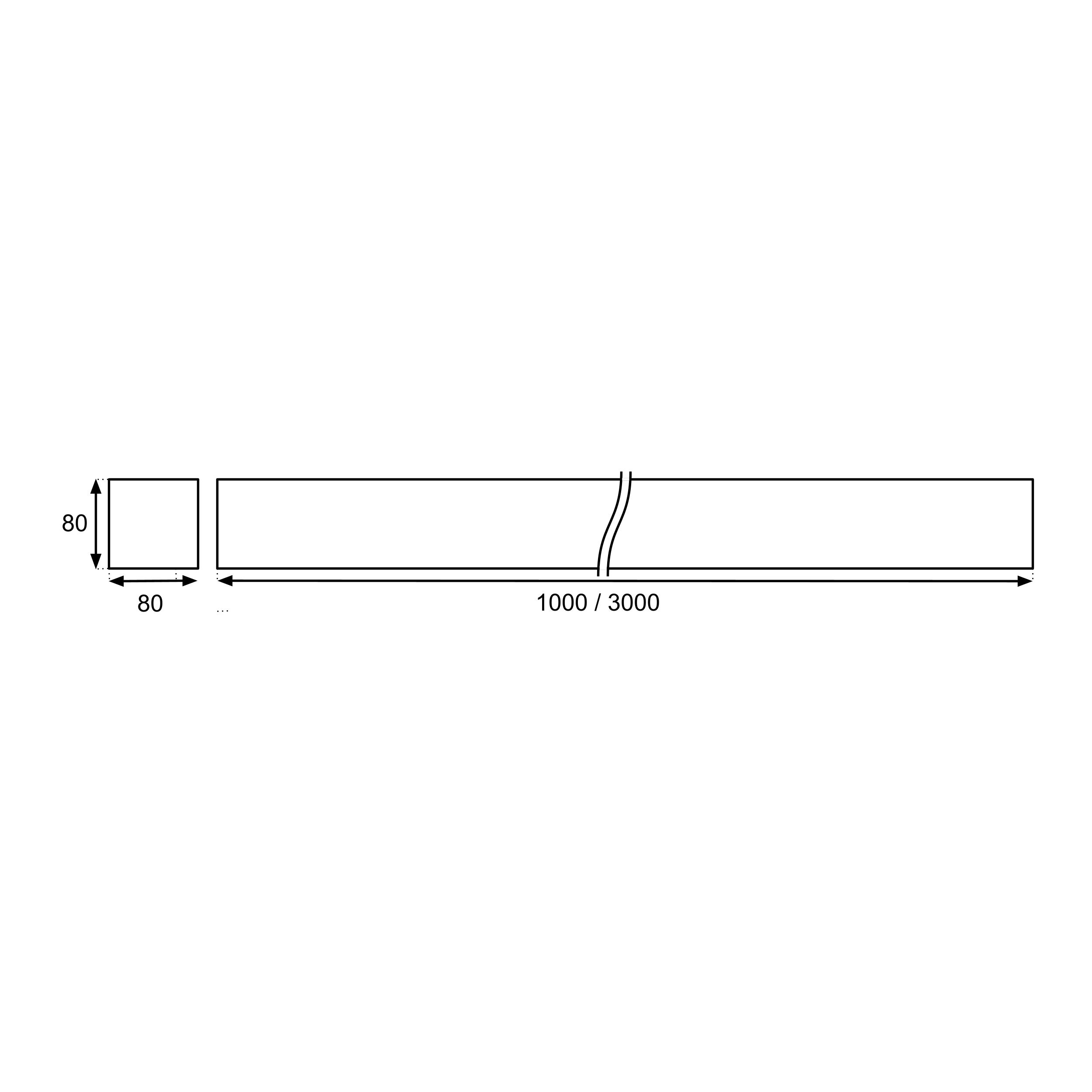

Technical drawing

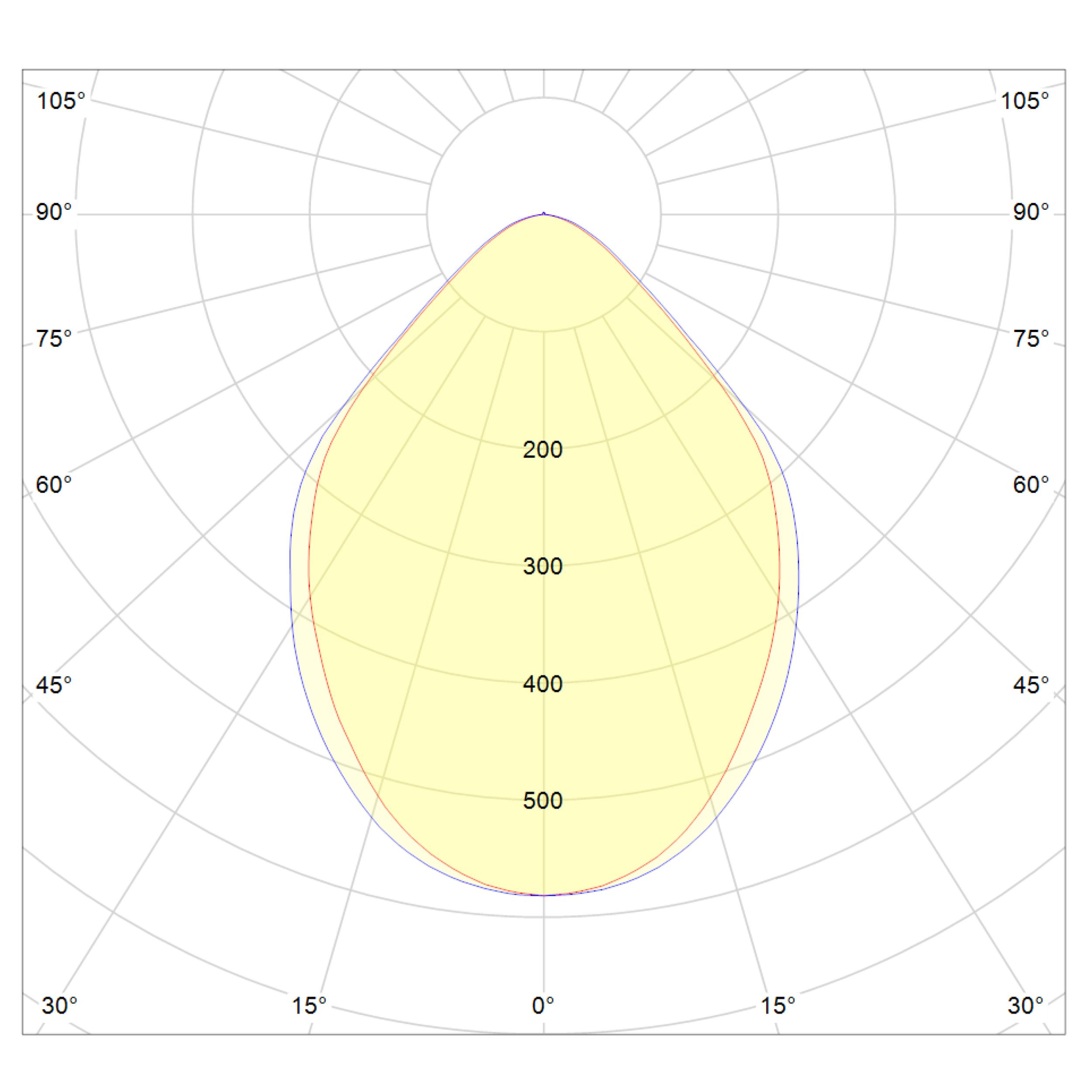

Lichtverteilungskurve
Sensor detection range

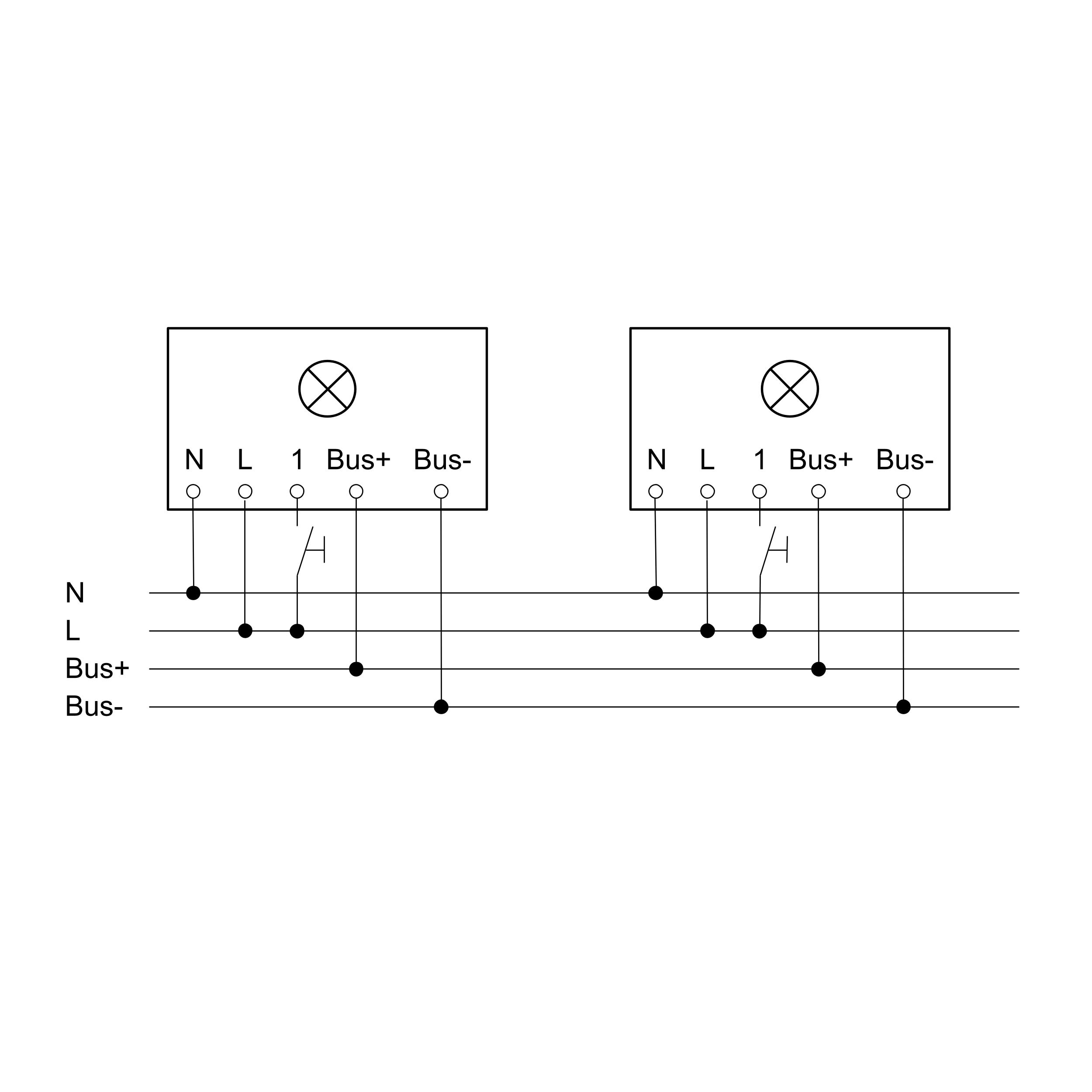

Wiring diagram 1
Wiring diagram networking wire

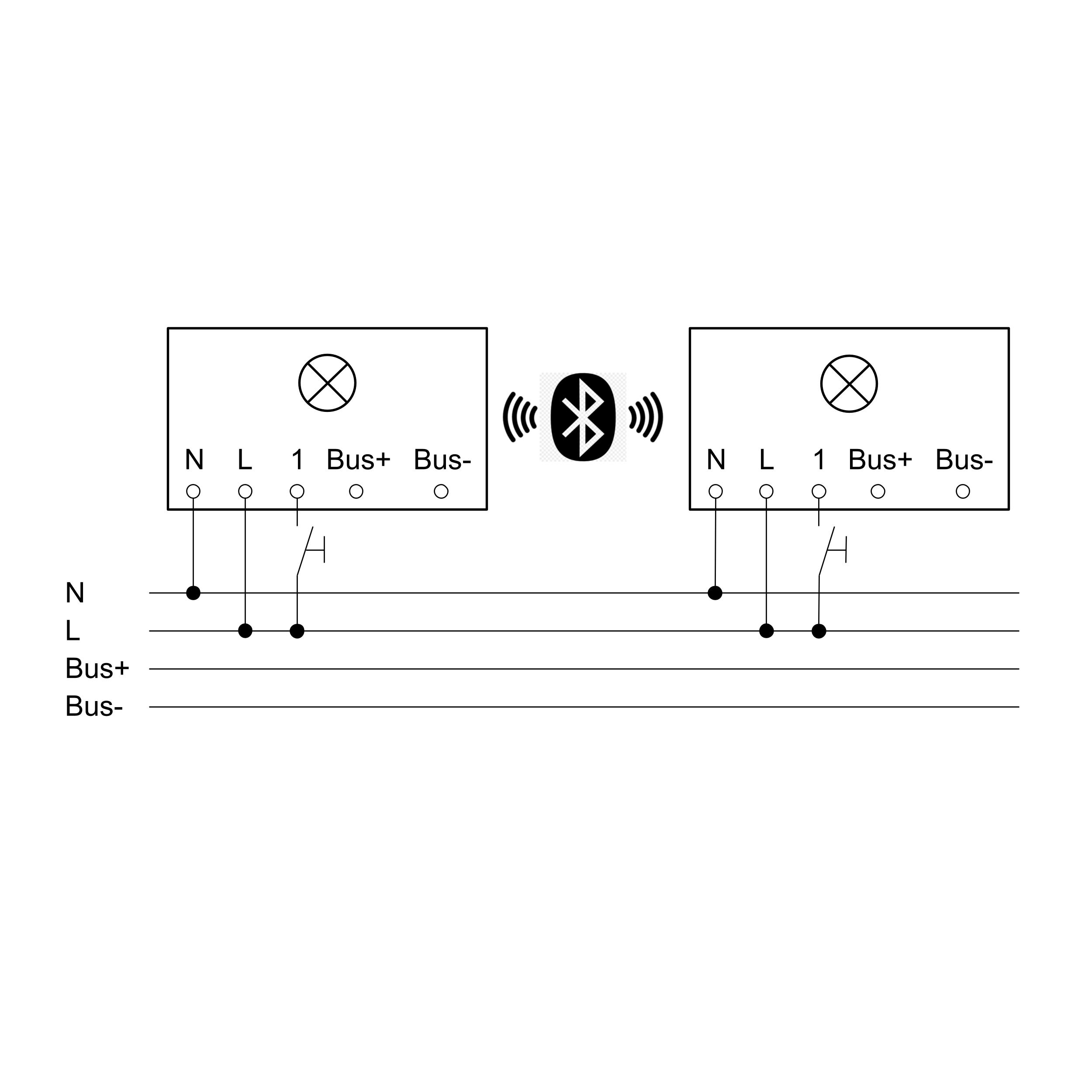

Wiring diagram 2
Wiring diagram networking radio
