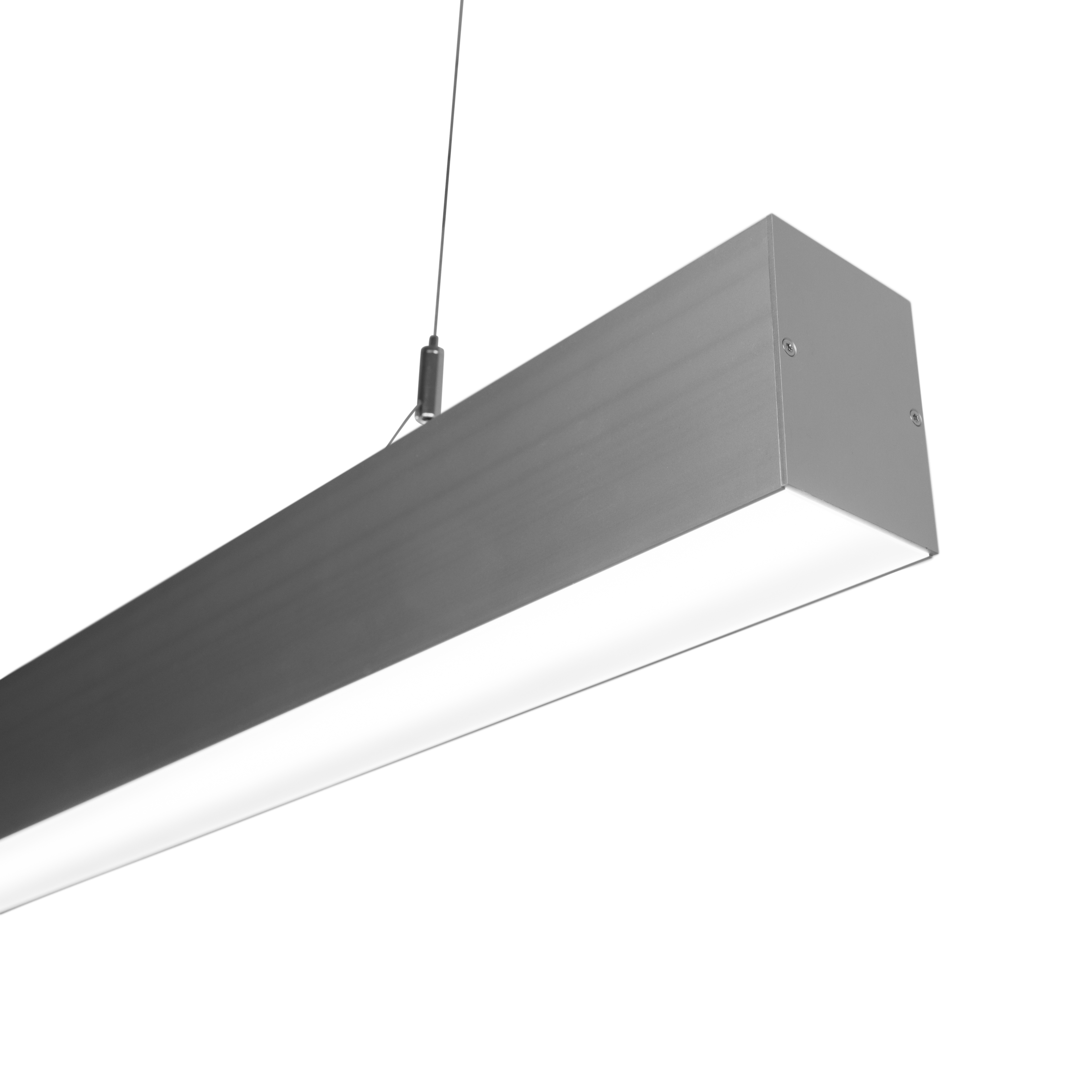

Nevalux elani P3200 TW
Product code 221114
Price: Please log in to see prices
Light colour
Version
Colour
Aluminium
white
- For universal use for lighting offices, schools, traffic zones etc.
- Direct and indirect light can be controlled separately
- Dimmable DALI
- Variants with 1.5, 2.4 and 3.14 meter length available
- Housing Anodised aluminium
- Swiss Made
Variants
Luminous flux
12560 lm (Down 8164, Up 4396)
Dimensions
Dimensions L × W × H
3140 x 60 x 80 mm
Suspension length
2000 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
97 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
3000...5600 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
Yes, LED-System
Luminous flux
12560 lm (Down 8164, Up 4396)
Beam angle
Down 105°, Up 115°
Luminaire luminous efficacy
129 lm/W
Glare value
UGR < 22
Lifetime
LED lifespan (25 °C)
70000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Direct/indirect ratio separately controllable
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...45 °C
Housing material
Aluminium
Cover material
Acrylic glass opal
Mounting type
Ceiling pendant
Colour
Aluminium
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D

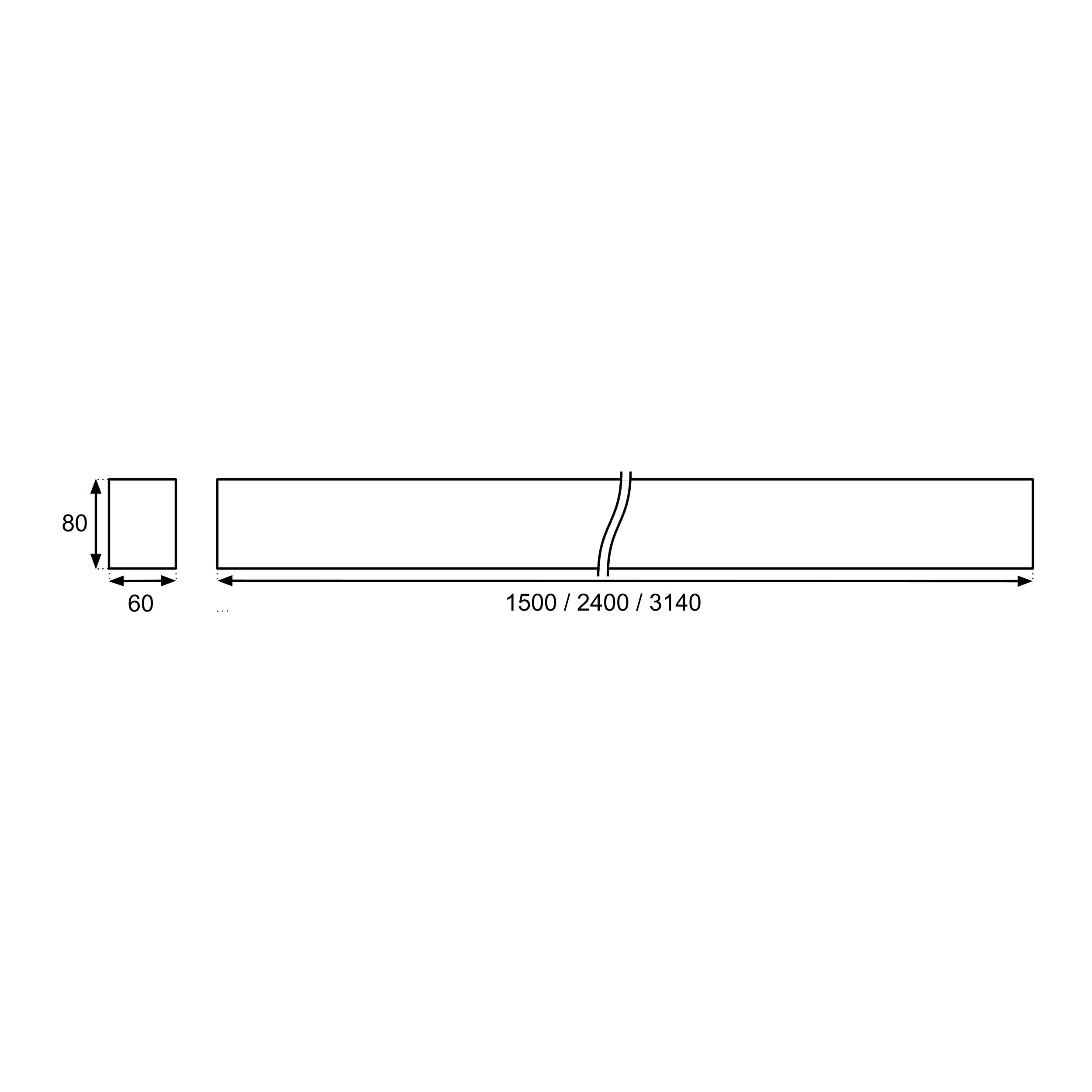

Technical drawing

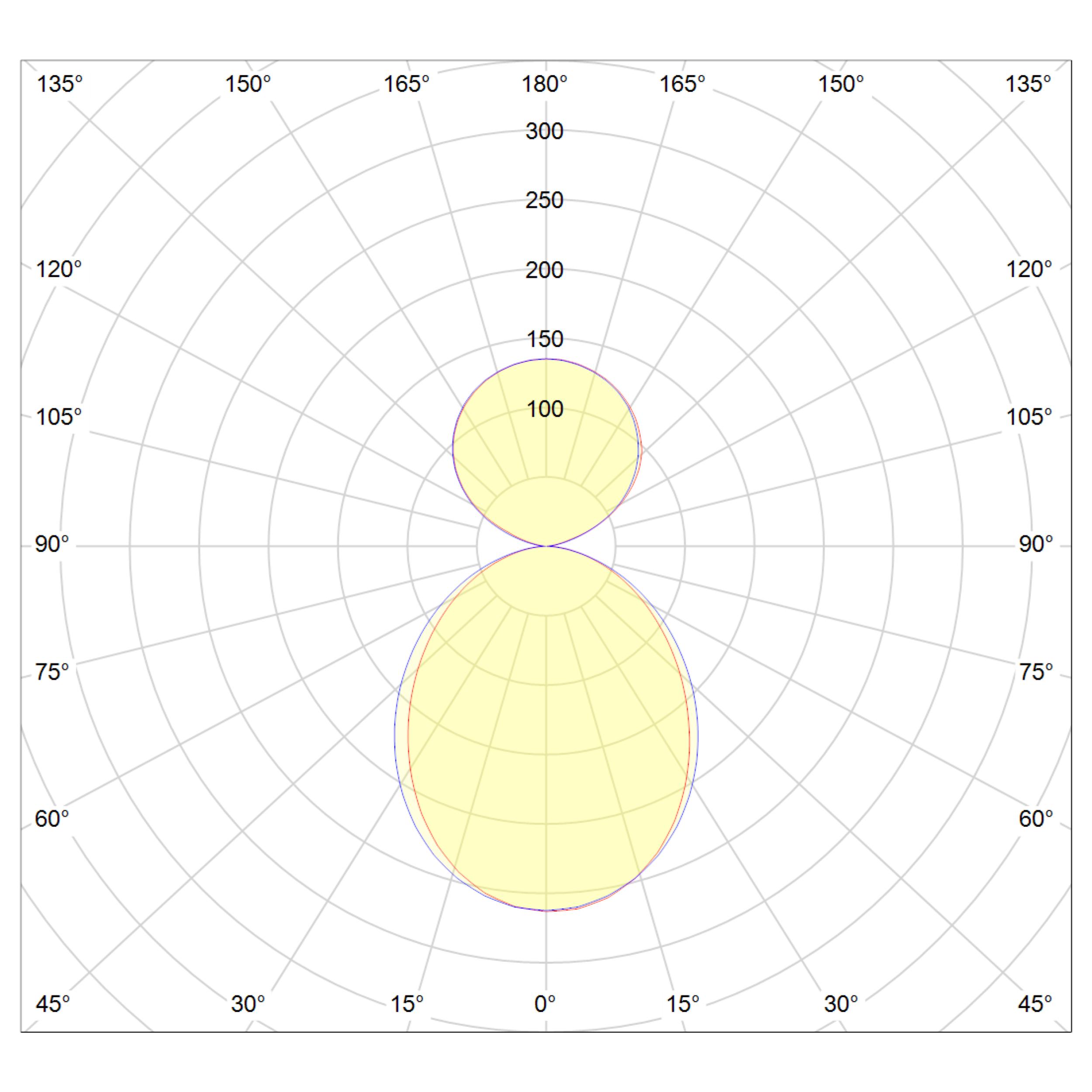

Lichtverteilungskurve

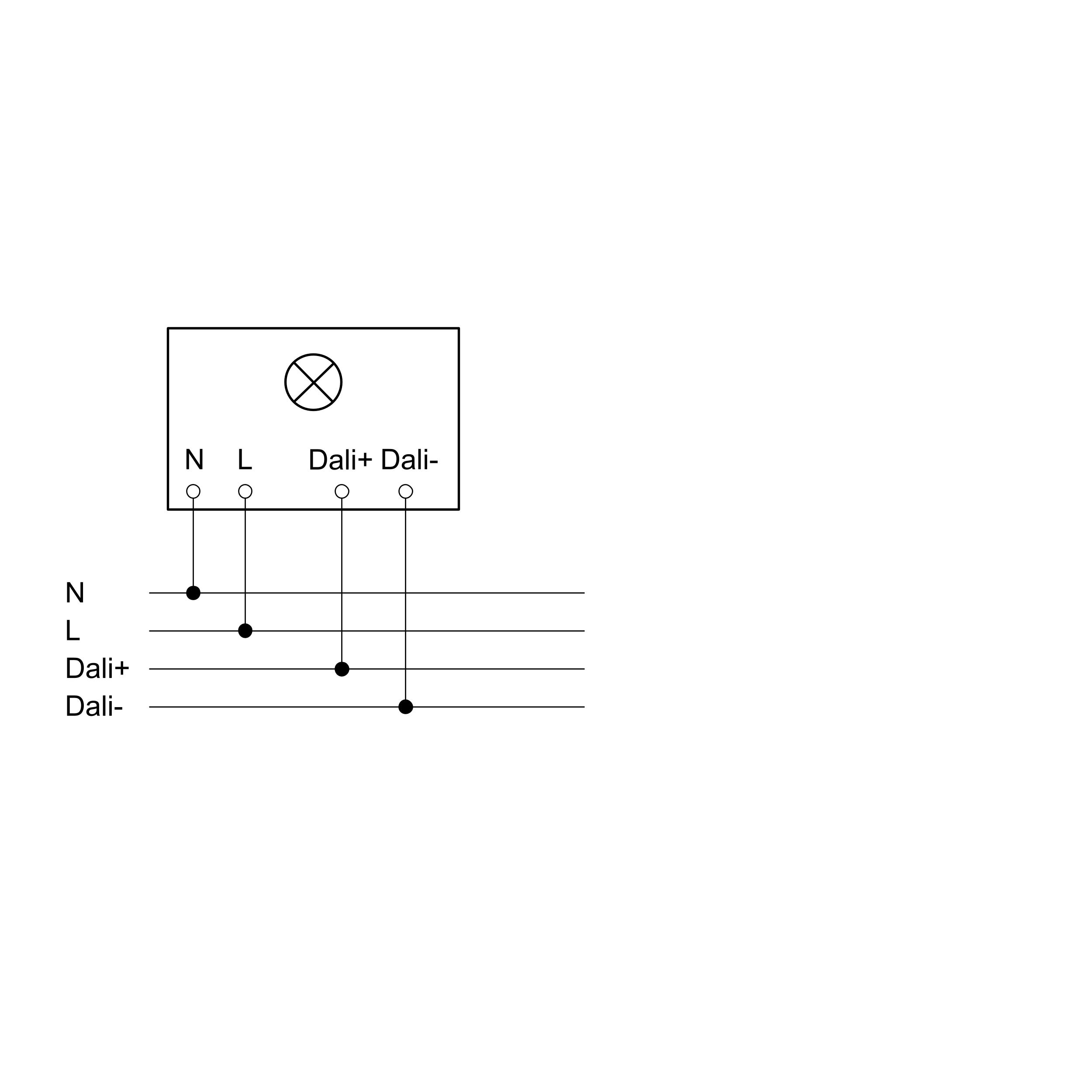

Wiring diagram 1
Wiring diagram

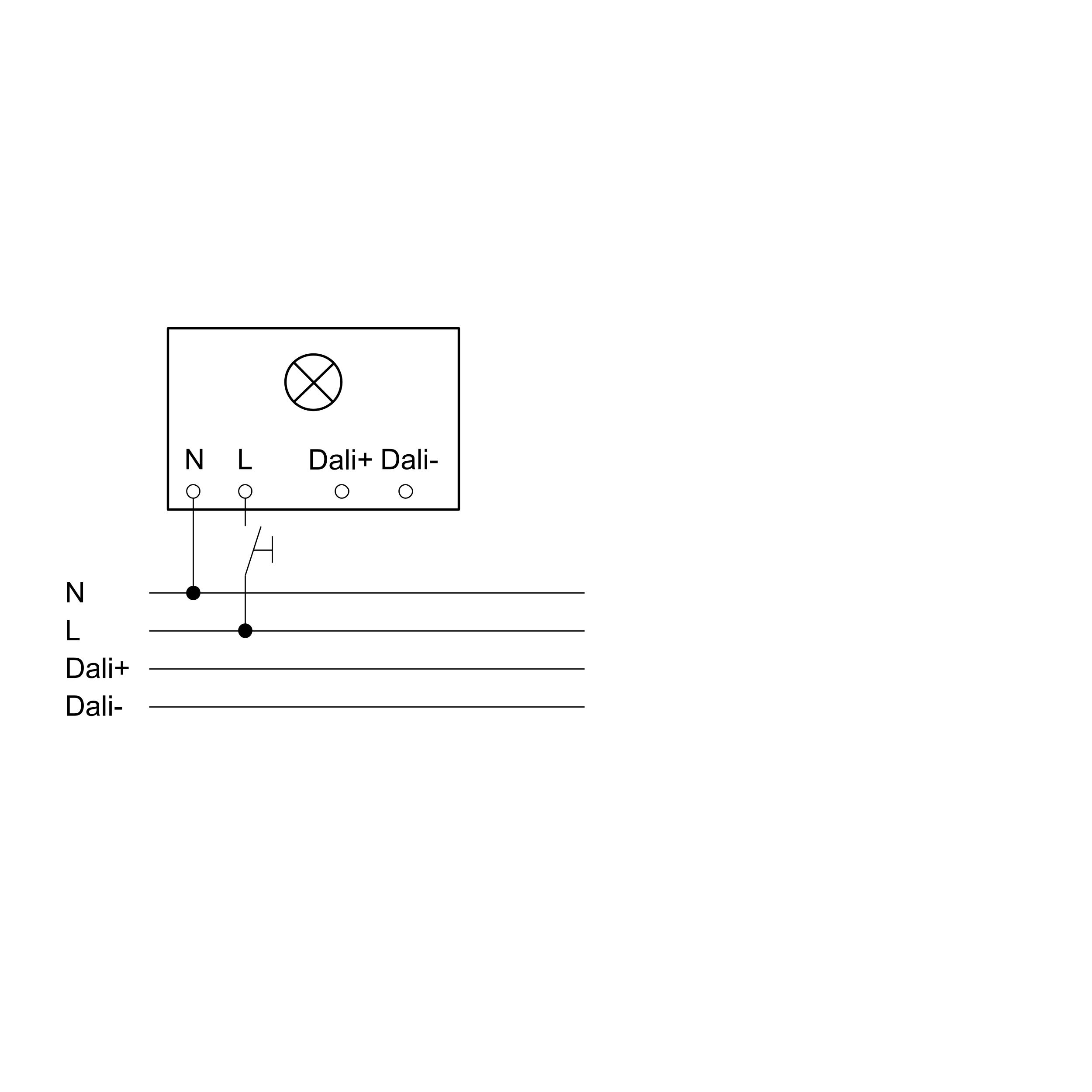

Wiring diagram 2
Wiring diagram
