- Multi-purpose use in commercial properties and in the hotel industry
- High quality finish
- Optimized heat management, long service life
- Wide beam diffuser (70 °)
- Very good glare control values (UGR<19)
- Available in 5 different sizes
- Dimmable DALI, LiveLink compatible
- Brightness On-Off version adjustable in 4 steps
- Driver included
- Housing Aluminium RAL9016, white

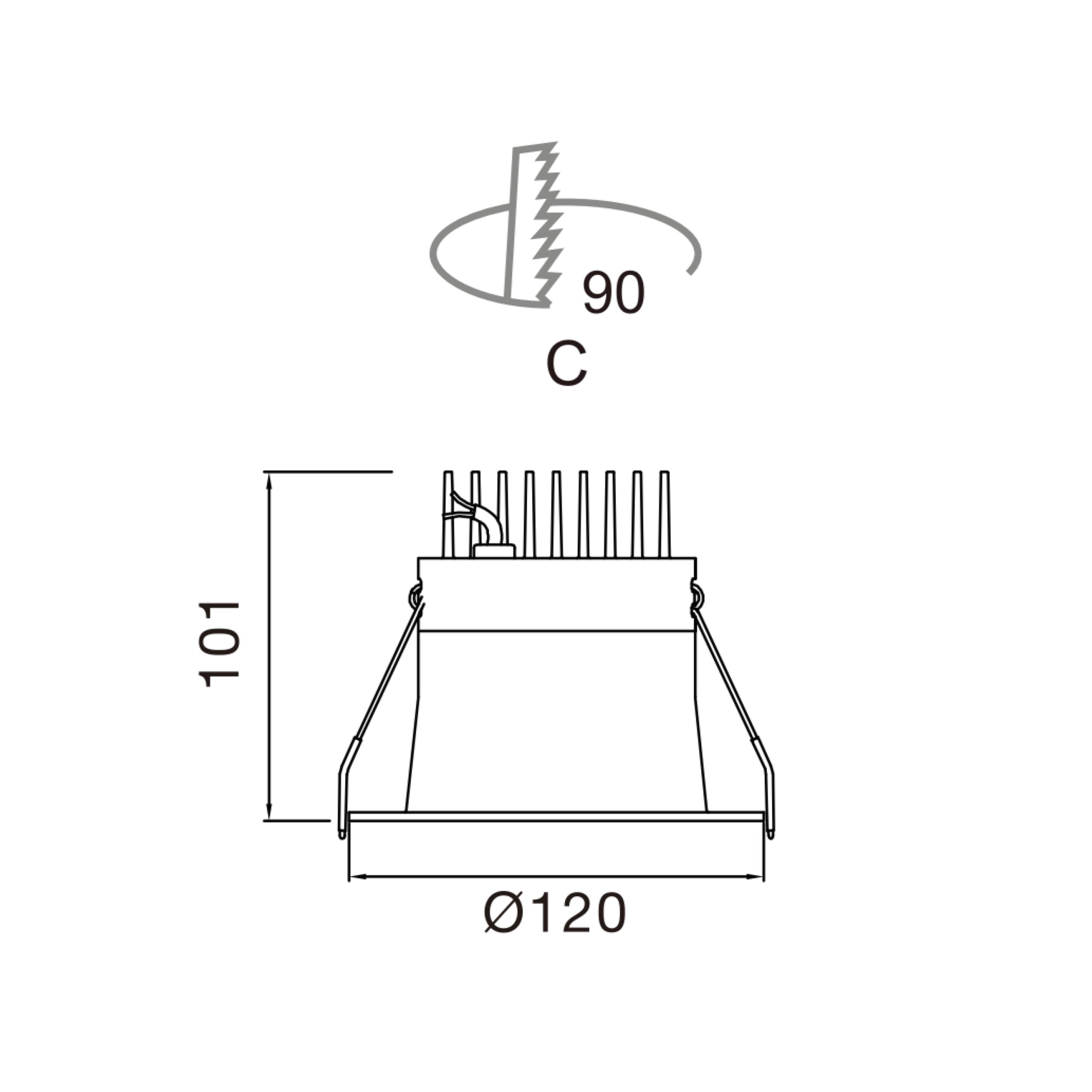

Dimensions
Dimensions Ø × H
120 x 101 mm
Drill hole
90 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
15 W
Replaceable driver
Yes
Type of wiring
Ending
LED rated current
350 mA
Sensor technology
With motion detector
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
1200 lm
Beam angle
70°
Luminaire luminous efficacy
80 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
No
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...40 °C
Housing material
Aluminum
Cover material
Diffusor opal
Mounting type
In-ceiling installation
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F
