- Versatile use in commercial properties and in the hotel industry
- 3 light colors selectable (2700, 4000 or 5700 Kelvin)
- Brightness adjustable thanks to DALI-2 driver
- IP44 protection class for use in wet rooms and protected outdoor areas
- Wide beam diffuser (90 °)
- Very good glare control values thanks to microprismatic diffuser
- Available in 5 different sizes
Dimensions
Dimensions Ø × H
145 x 45 mm
Drill hole
125 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
18 W
Replaceable driver
Yes
Type of wiring
Ending
LED rated current
450 mA
Sensor technology
With motion detector
No
Lighting technology
Colour temperature
2700 / 4000 / 5700 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
1450 lm
Beam angle
90°
Luminaire luminous efficacy
81 lm/W
Glare value
UGR<27
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
Housing & material
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Microprismatic acrylic glass
Mounting type
In-ceiling installation
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F

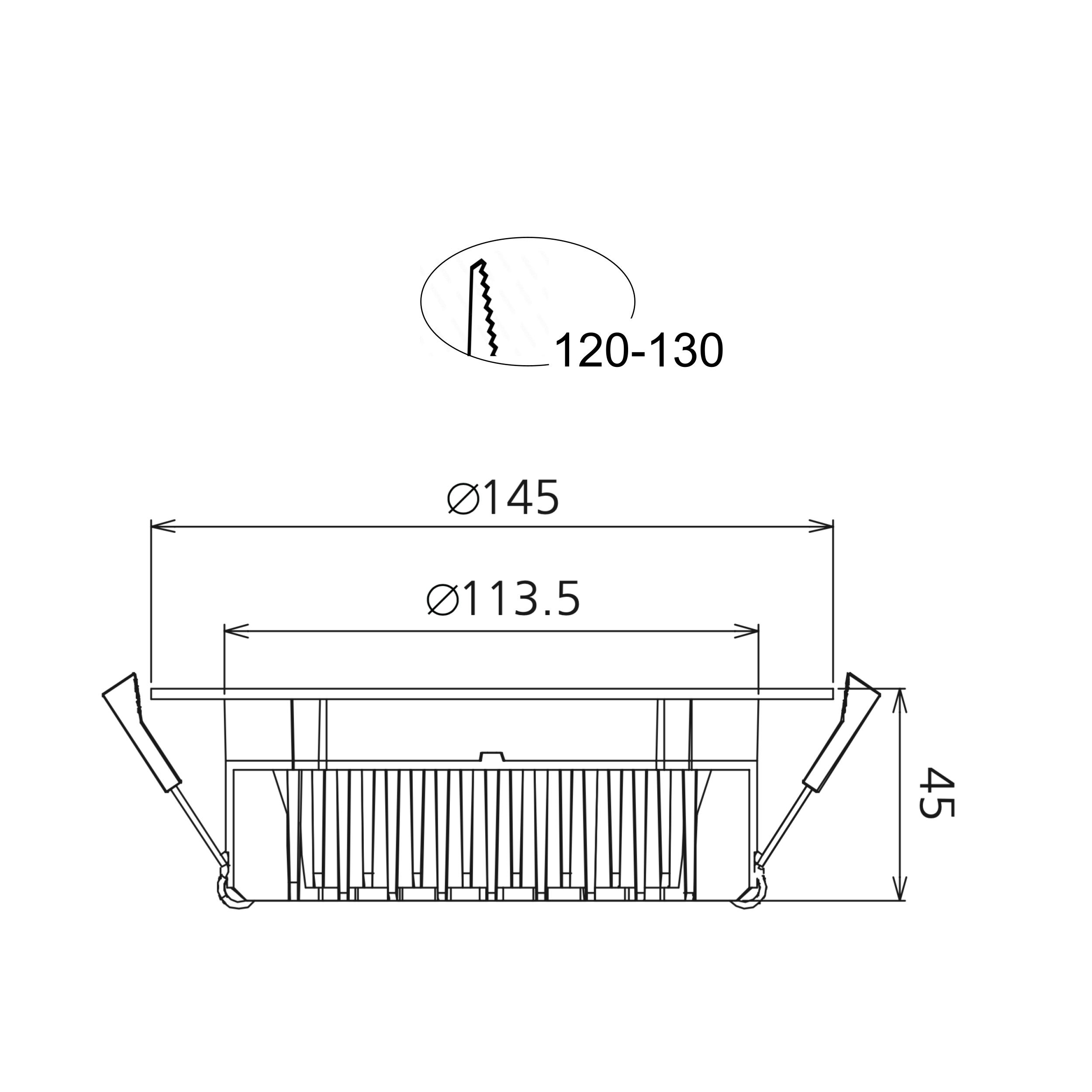

Technical drawing

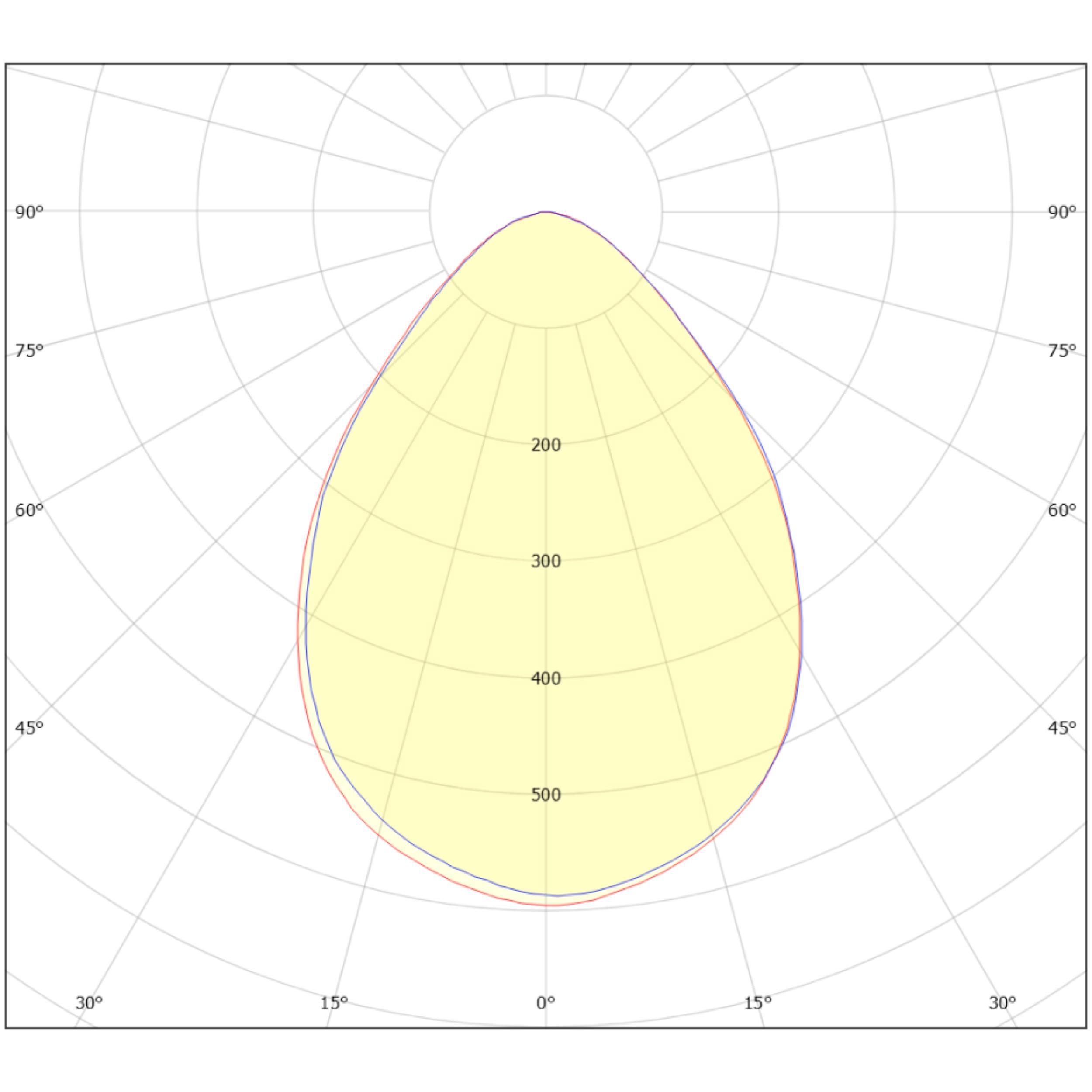

Lichtverteilungskurve
Sensor detection range

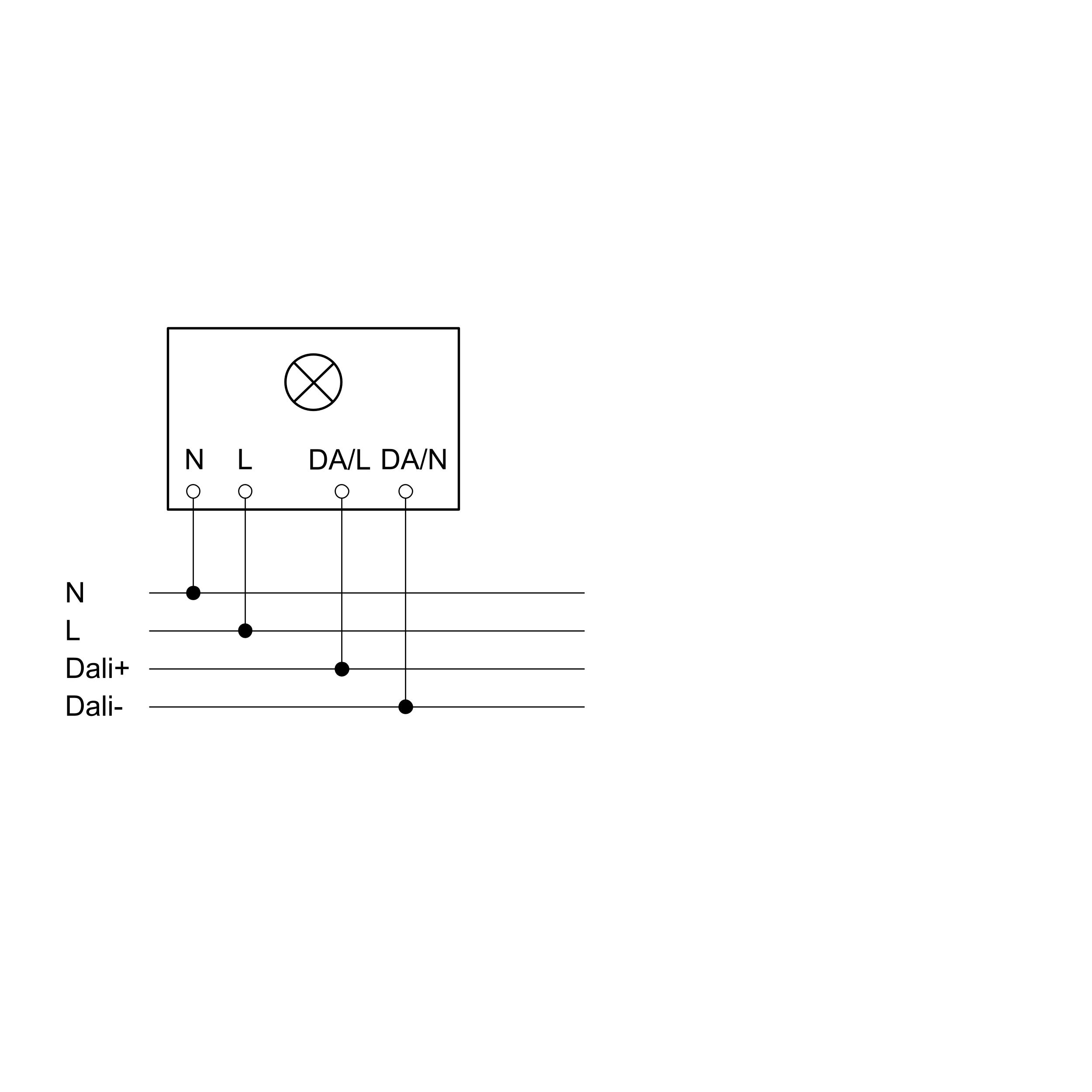

Wiring diagram 1
Wiring diagram

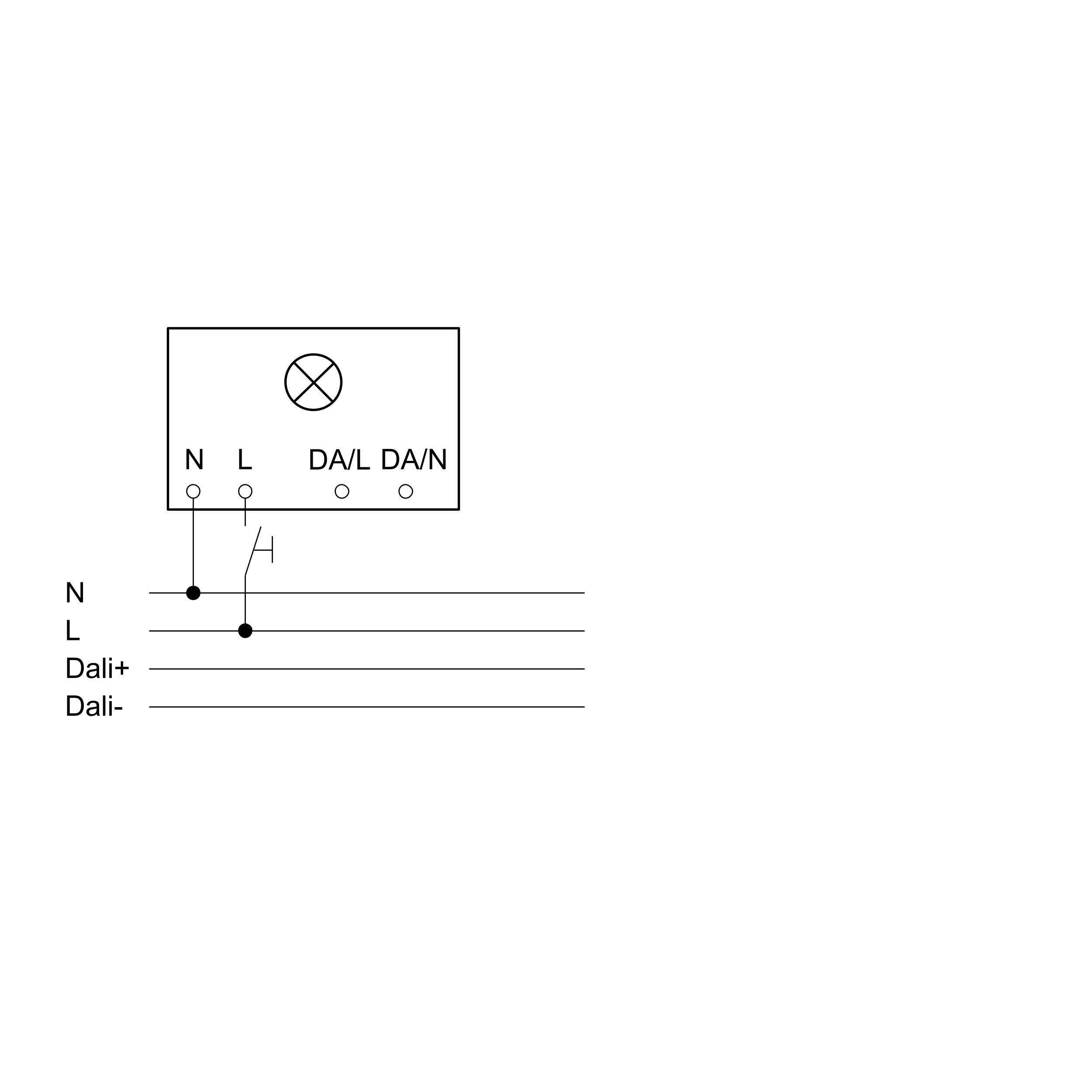

Wiring diagram 2
Wiring diagram light switch
