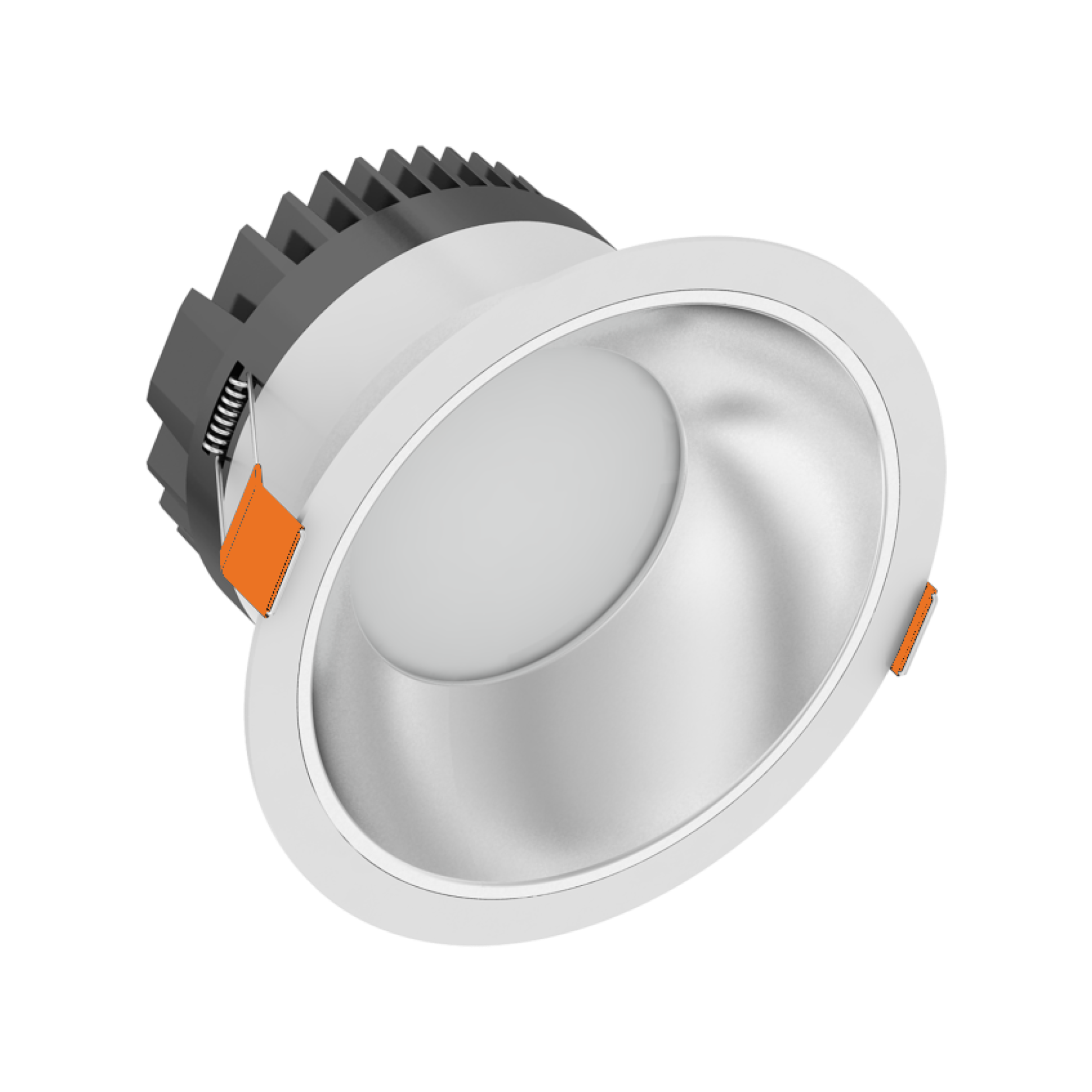

nevalux fayola 205 DALI 4K
Recessed downlight for commercial and hotel use. Five sizes, low glare, DALI dimmable.
Product code 220188
This product is being replaced by a successor product.
Go to successor product · fayola 205 V2 3CCT DALI (221450)Dimensions Ø × H
Control technology
Dali-Leuchte
On/Off-Leuchte
Switch selection
The requested variant is not available. Please choose one of the following options.
- Multi-purpose use in commercial properties and in the hotel industry
- High quality finish
- Optimized heat management, long service life
- Wide beam diffuser (70 °)
- Very good glare control values (UGR<19)
- Available in 5 different sizes
- Dimmable DALI, LiveLink compatible
- Brightness On-Off version adjustable in 4 steps
- Driver included
- Housing Aluminium RAL9016, white
Variants
Luminous flux
2800 lm
Variant
DALI

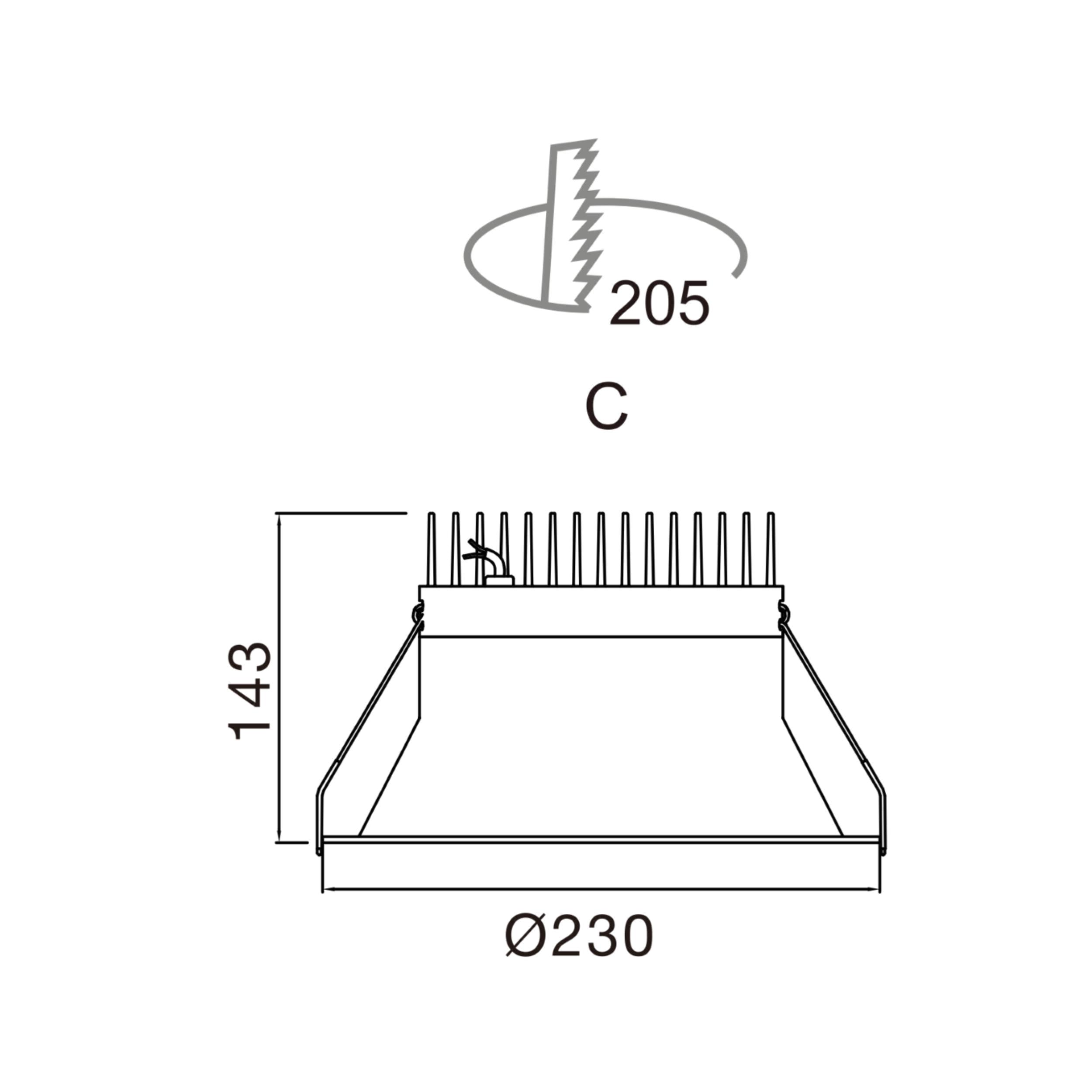

Dimensions
Dimensions Ø × H
230 x 143 mm
Drill hole
205 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
28 W
Replaceable driver
Yes
Type of wiring
Ending
LED rated current
700 mA
Sensor technology
With motion detector
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
2800 lm
Beam angle
70°
Luminaire luminous efficacy
100 lm/W
Glare value
UGR < 19
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...+40 °C
Housing material
Aluminium
Cover material
Opal diffuser
Mounting type
Recessed ceiling
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
F
