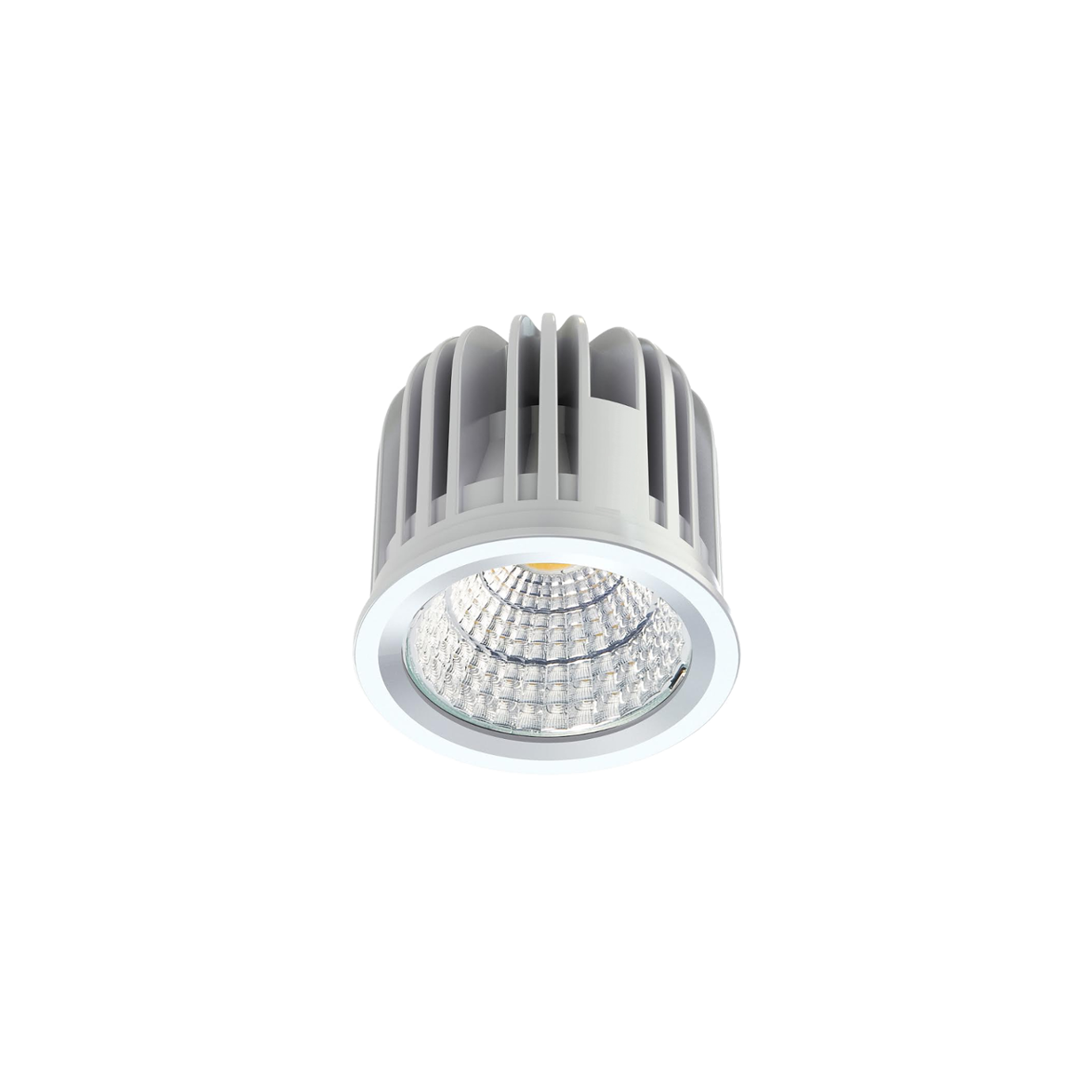

Nevalux fayola M6 On-Off/Phasecut D2W
Product code 220281
Price: Please log in to see prices
Version
incl. On/Off phase-cut driver
incl. DALI driver
- Retrofit replacement for classic halogen downlight modules
- Light colour becomes warmer when dimmed
- Wide beam optics (60°)
- Optimized heat management, long lifetime
- Variants On-Off-Phasecut and DALI available
Variants
Luminous flux
470 lm

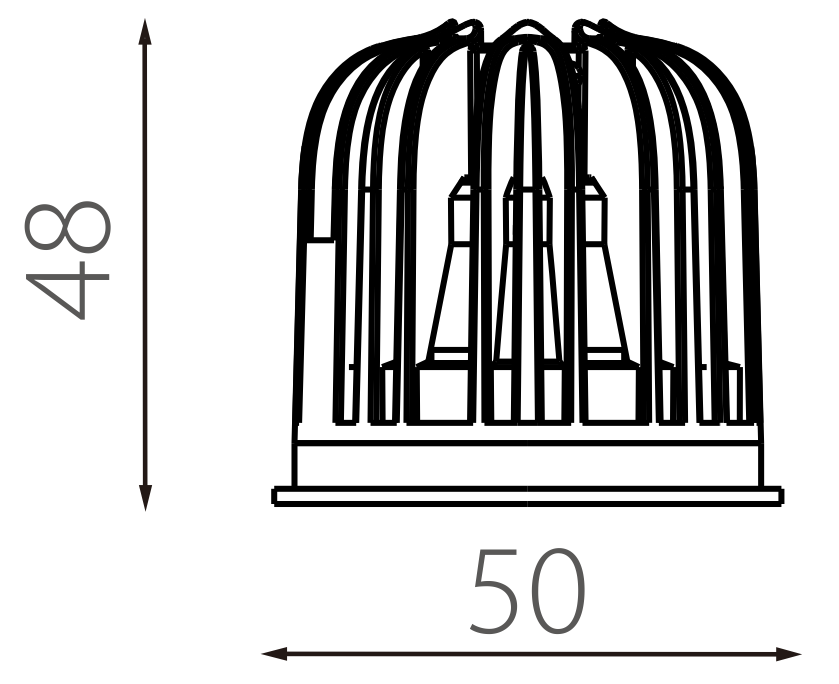

Dimensions
Dimensions Ø × H
50 x 48 mm
Drill hole
60 mm
Electrical
Mains connection
220...240 V / 50 – 60 Hz
Power
8 W
Replaceable driver
Yes
Type of wiring
Ending
LED rated current
350 mA
Sensor technology
With motion detector
No
Lighting technology
Colour temperature
1800...3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
470 lm

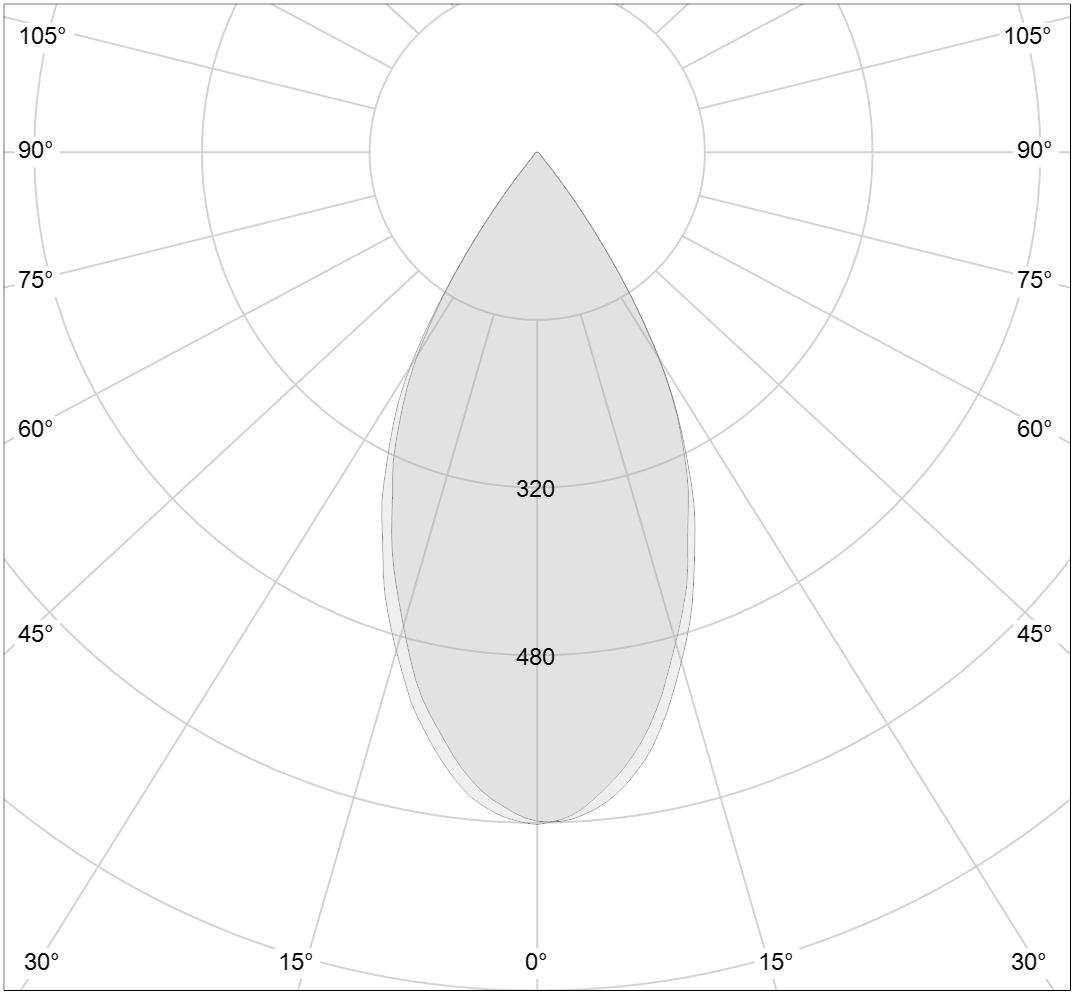

Beam angle
60°
Luminaire luminous efficacy
59 lm/W
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
No
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...40 °C
Housing material
Aluminum
Cover material
Reflector aluminium
Mounting type
In-ceiling installation
Colour
Aluminum
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
G
