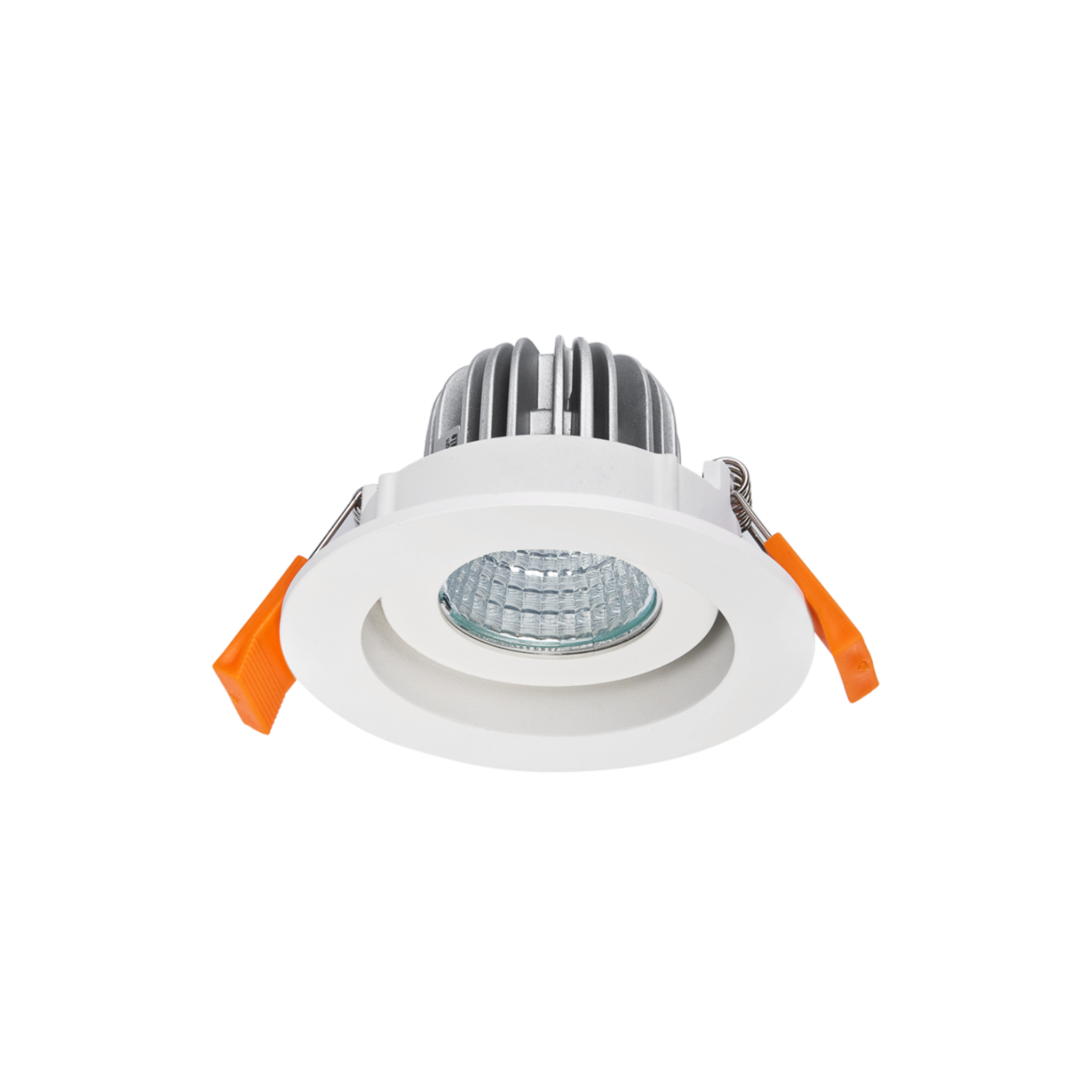

nevalux fayola MR1 DALI D2W
Adjustable recessed downlight for accent lighting. Warms up when dimmed.
Product code 220443
Price: Please log in to see prices
Control technology
Dali-Leuchte
On/Off-Leuchte
Switch selection
The requested variant is not available. Please choose one of the following options.
- Multi-purpose use in the private and commercial sector
- Light colour becomes warmer when dimmed
- Wide beam optics 60°, Directable 30
- Optimized heat management, long lifetime
- Variants On-Off-Phasecut and DALI available
Variants
Version
DALI
Luminous flux
470 lm

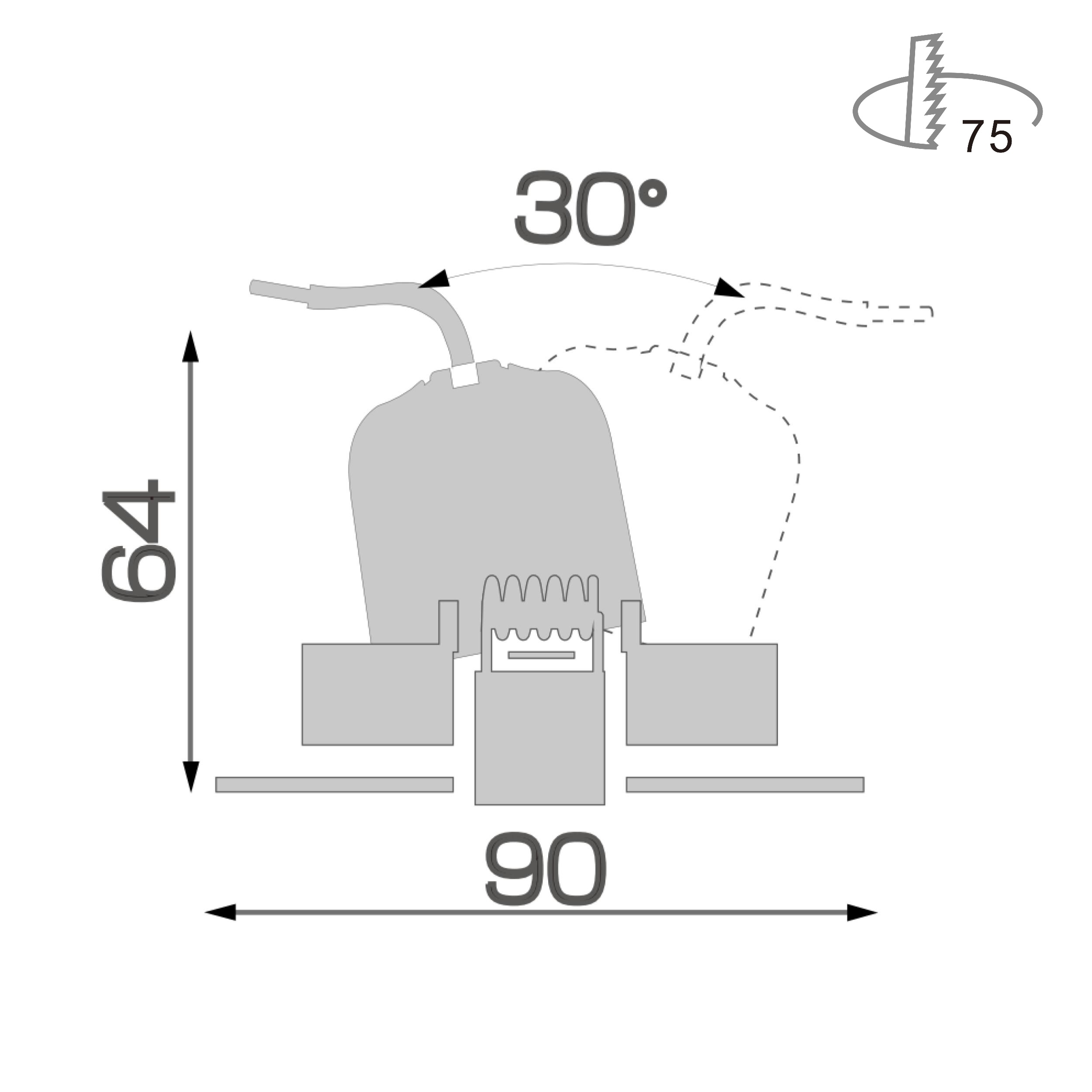

Dimensions
Dimensions Ø × H
90 x 64 mm
Drill hole
75 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
8 W
Replaceable driver
Yes
Type of wiring
Ending
LED rated current
350 mA
Sensor technology
With motion detector
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
1800...3000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
470 lm

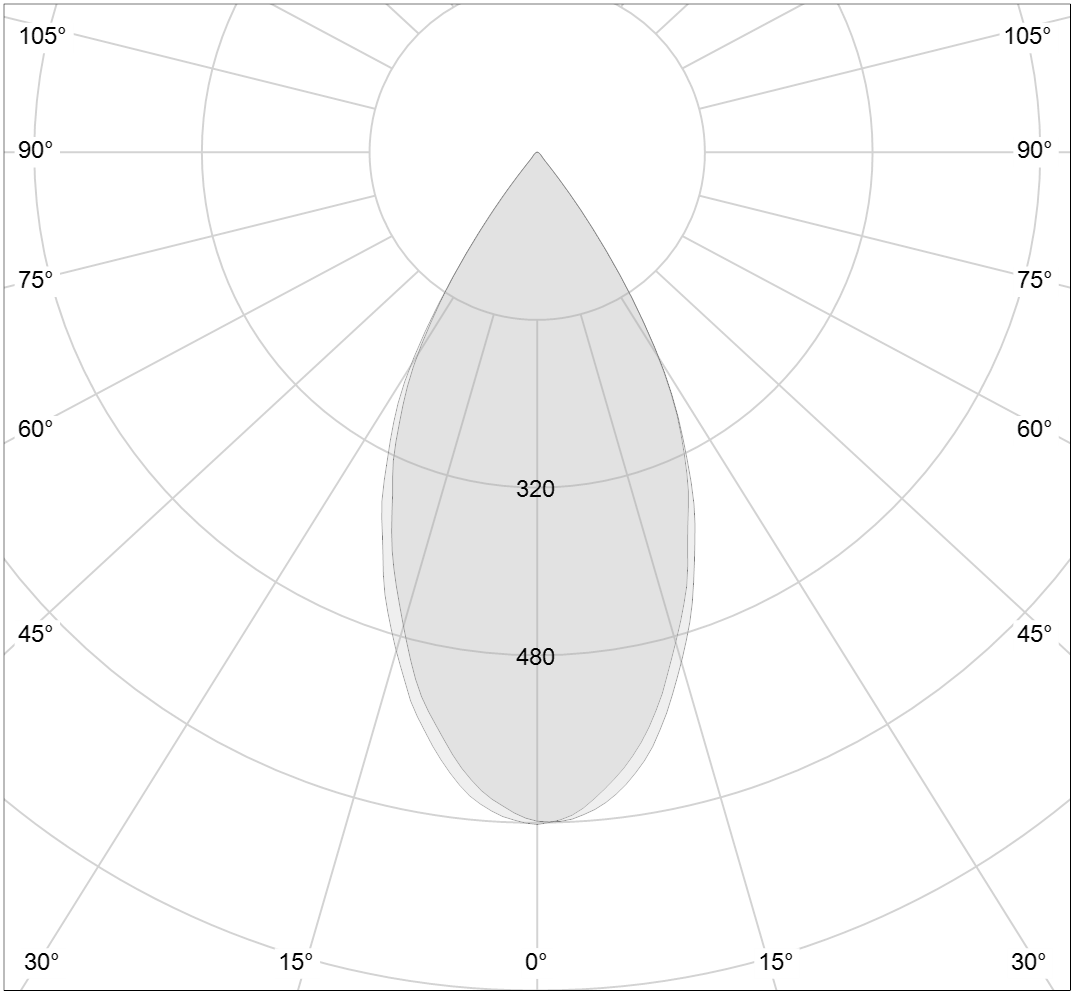

Beam angle
60°
Luminaire luminous efficacy
59 lm/W
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
Housing & material
Protection class (IP)
IP20
Protection class
II
Ambient temperature
-20...+40 °C
Housing material
Aluminium
Cover material
Aluminium reflector
Mounting type
Recessed ceiling
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
G
