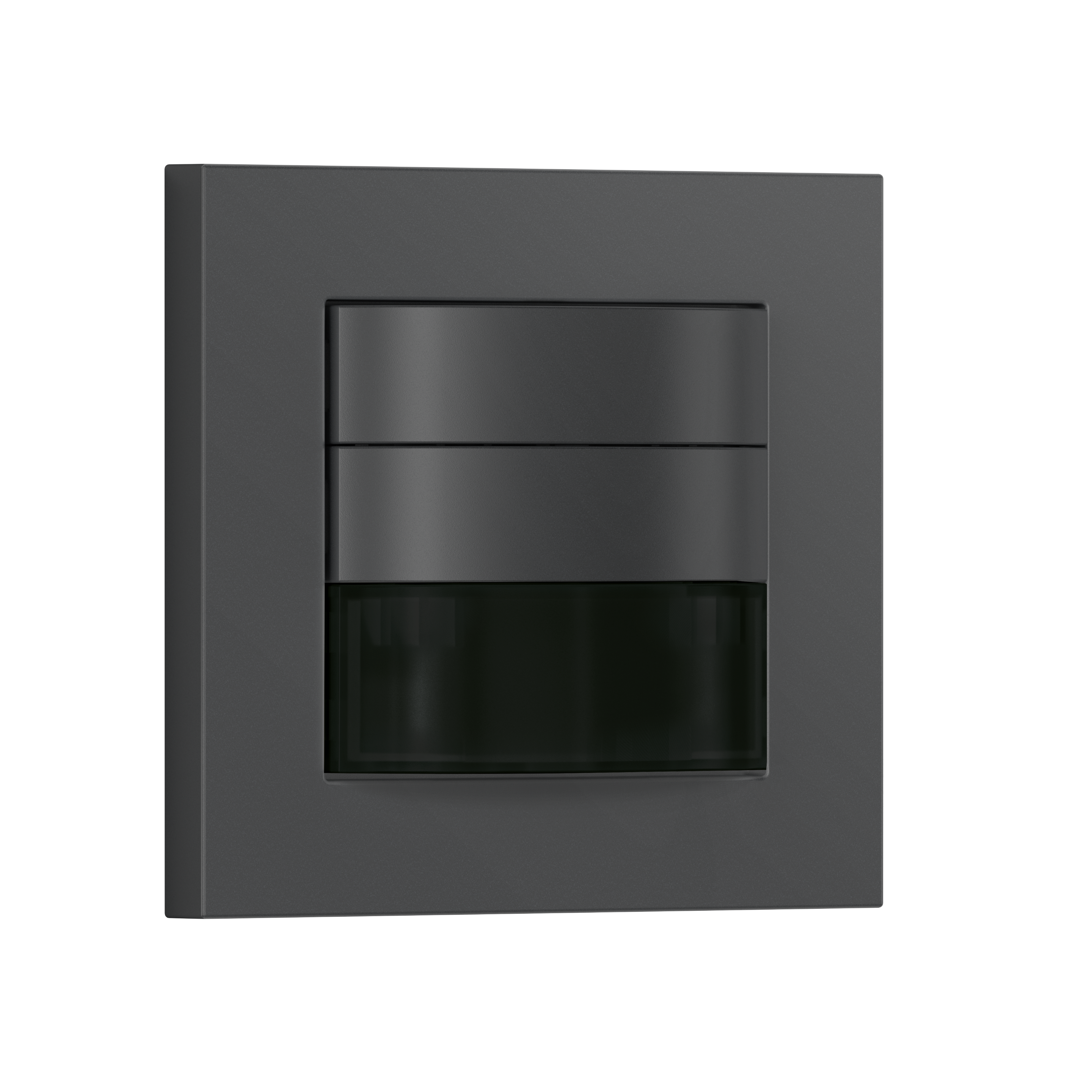

Nevalux HF 180 COM2 - anthracite

EAN-No. 4007841 056001

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Reliably detects through partition walls. HF 180 presence switch. The high-frequency sensor system quickly detects any movement regardless of temperature – even through partition walls, e.g. offices, entrance rooms or toilet facilities. 180° angle of coverage, up to 8 m reach. Intelligent technology, high-calibre design, easy 3-wire installation.

Optional adapters made of UV-resistant plastic

Identification

Variant COM2 - anthracite

Version Presence detector

Dimensions

Dimensions L × W × H 80 x 80 x 21 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Switching output 1 resistive 2000 W

Own consumption 0,7 W

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Switching output 1 potential-free No

Switching output 2 resistive 230 W

Switching output 2 potential-free Yes

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 180 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range r = 8 m (101 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 1,10 – 2,20 m

Optimal mounting height 1,1 m

Connectivity

Networking Yes

Lighting technology

Constant light regulation No

Settings

Twilight setting 10 – 1000 lx

Time setting 30 sec – 30 min

Base light function No

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates EMC, VDE

Other

Application, location, room One-person office, corridor, aisle, side room, stairwell, wc, washroom, equipment room

Data sheet User manual

Service remote control RC8

Item no. 559410

Adapter surround for IR 180 / HF 180 Busch-Jaeger - anthracite

Item no. 4007841062972

Adapter surround for IR 180 / HF 180 Feller - anthracite

Item no. 4007841062989

Adapter surround for IR 180 / HF 180 Jung - anthracite

Item no. 4007841062996
