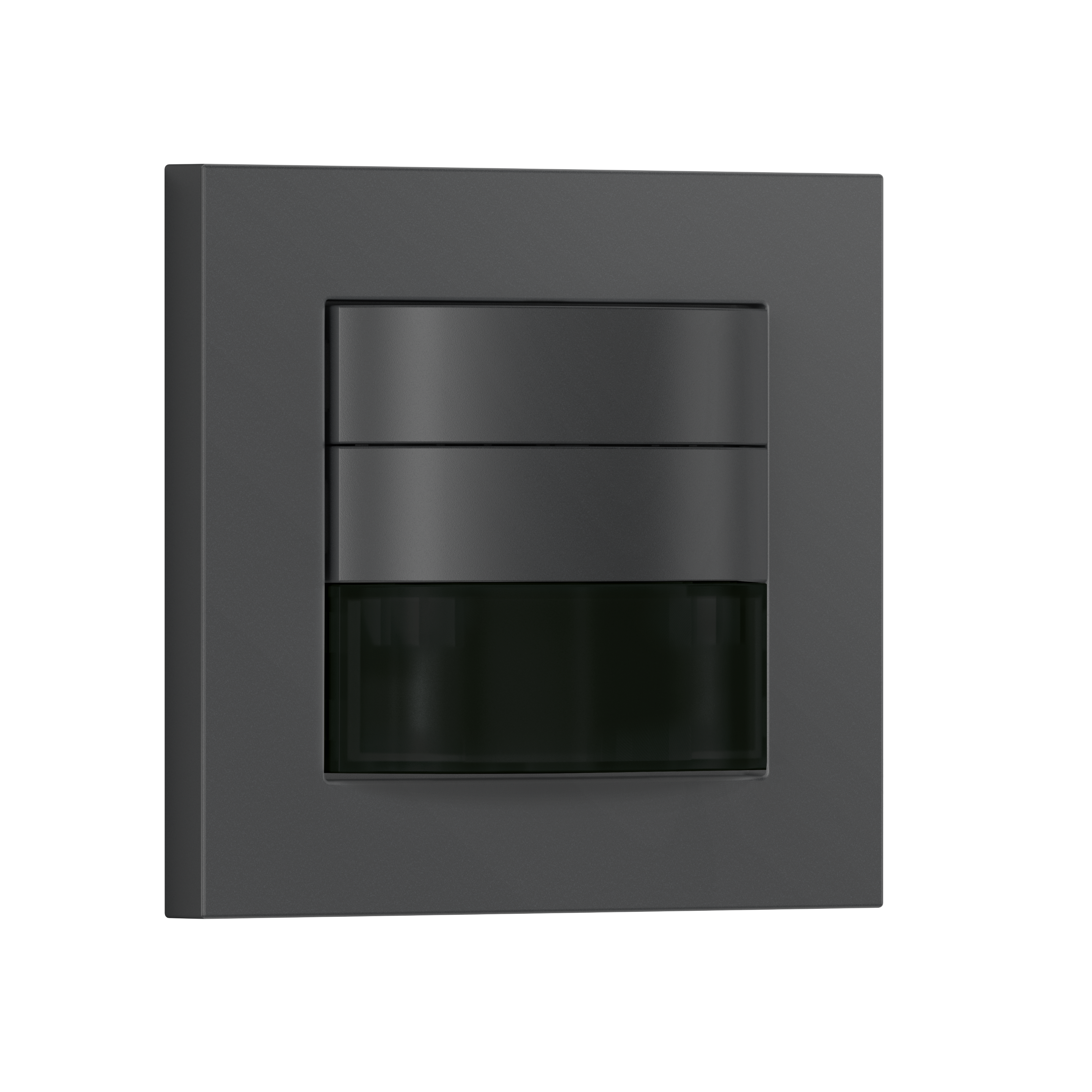

Nevalux HF 180 DALI - anthracite

EAN-No. 4007841 056018

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Reliably detects through partition walls. HF 180 presence switch. The high-frequency sensor system quickly detects any movement regardless of temperature – even through partition walls, e.g. offices, entrance rooms or toilet facilities. 180° angle of coverage, up to 8 m reach. Intelligent technology, high-calibre design, easy 3-wire installation.

Optional adapters made of UV-resistant plastic

Identification

Variant DALI - anthracite

Version Presence detector

Dimensions

Dimensions L × W × H 80 x 80 x 21 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Own consumption 0,7 W

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 180 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range r = 8 m (101 m²)

Tangential range r = 8 m (101 m²)

Mounting height 1,10 – 2,20 m

Optimal mounting height 1,1 m

Connectivity

Networking Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 30 sec – 30 min

Base light function Yes

Base light function time 1-60 min, all night

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room One-person office, corridor, aisle, side room, stairwell, wc, washroom, equipment room

Data sheet User manual

User remote control RC5

Item no. 592806

Service remote control RC8

Item no. 559410

Adapter surround for IR 180 / HF 180 Busch-Jaeger - anthracite

Item no. 4007841062972

Adapter surround for IR 180 / HF 180 Feller - anthracite

Item no. 4007841062989

Adapter surround for IR 180 / HF 180 Jung - anthracite

Item no. 4007841062996
