Identification
Variant

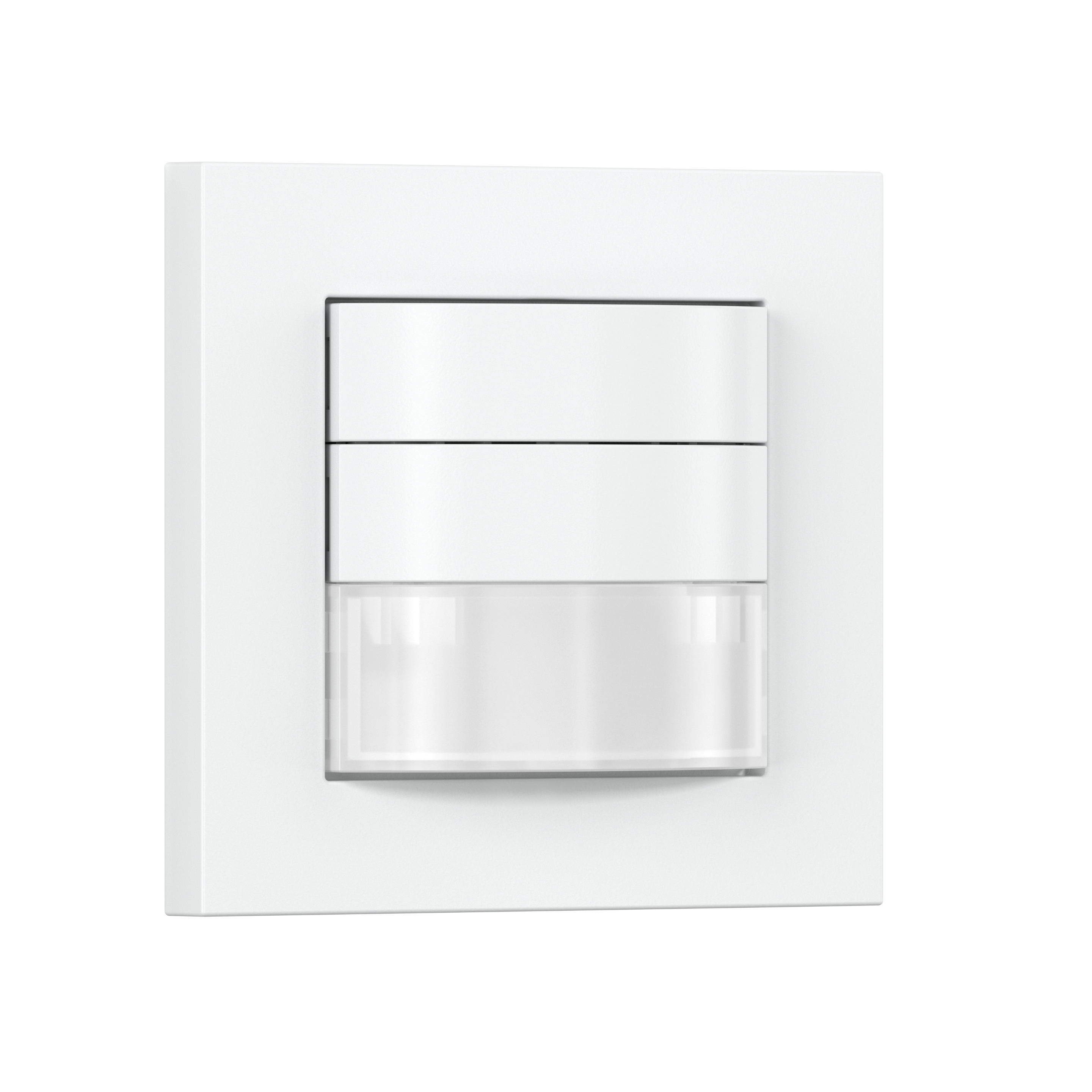

DALI - white
Version
Presence detector
Dimensions
Dimensions L × W × H
80 x 80 x 21 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Supply voltage detail
DALI bus
Control output DALI
Broadcast 2x12 electronic ballasts
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,20 – 2,20 m
Optimal mounting height
1,2 m
Connectivity
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
30 sec – 30 min
Base light function
Yes
Base light function time
1-30 min, all night
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, wc, washroom, equipment room
